Pfaff 487 Adjustment Manual

Adjustment
13
1.06.08 Height of drop feed dog
Requirement
At stitch length setting "0" and with the needle bar in position 0.6 mm past t.d.c.
(blocking hole 1) the feed dog must:
1. be centred in the feed slots of the needle plate both crosswise and lengthwise,
2. be at top dead centre and resting against the adjustment gauge throughout its length.
● Reposition feed bar 1 (screws 2) according to Requirement 1.
● Lower presser foot onto gauge.
● Turn eccentric 3 (screws 4) and eccentric 5 (screws 6) according to Requirement 2.

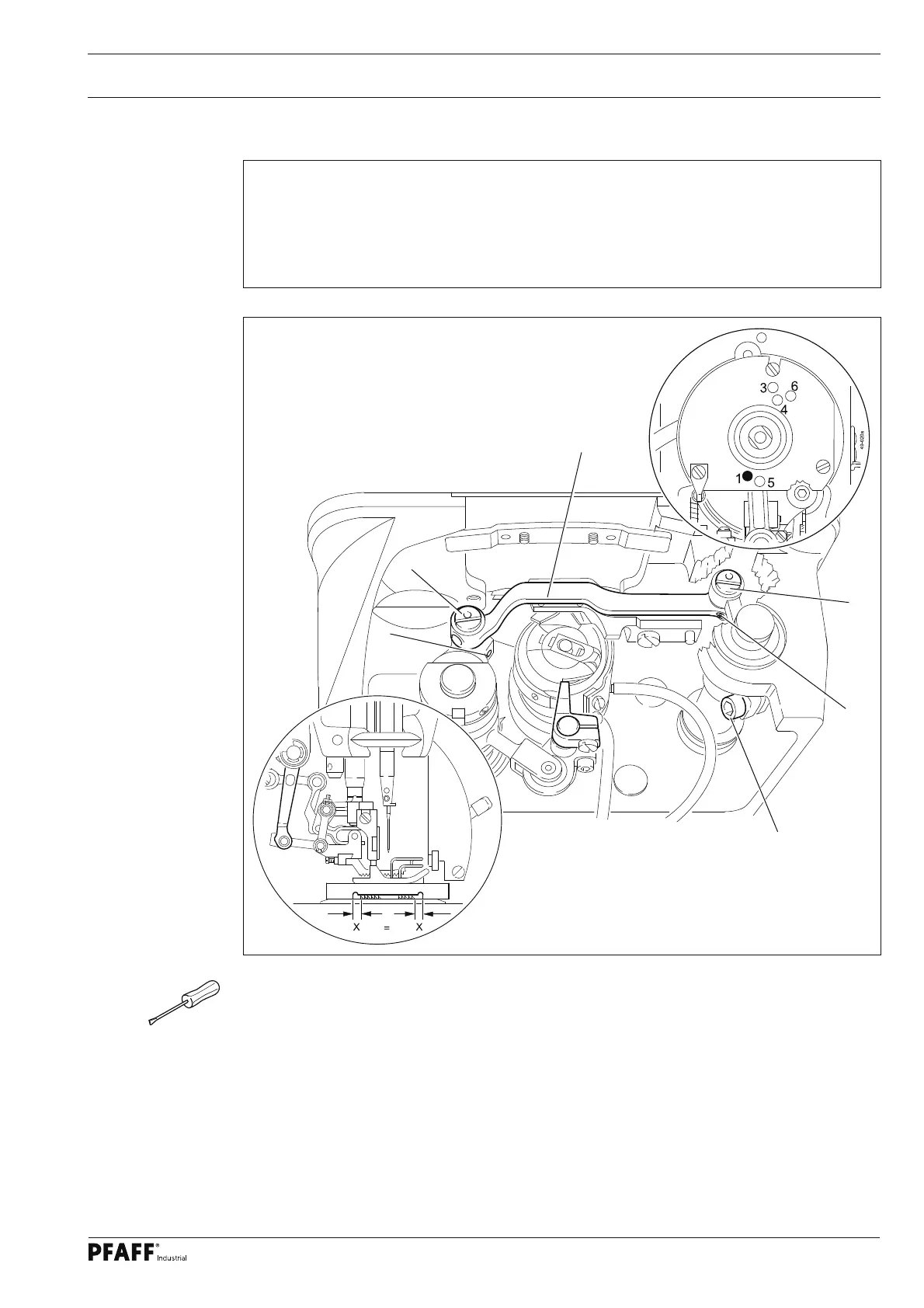

Fig. 1 - 09
3
4
5
6
2
1
