Adjustment
14
● Lower presser foot onto needle plate using lifting lever 1.
● Reduce pressure on the presser bar by unscrewing regulating screw 2 (knurled nut 3).
● Loosen screw 4, push pin 5 out and swing link 6 out of the fork of lever 7.
● Set lever 8 at its outermost position by turning the balance wheel.
● Place the feed-dog adjustment gauge, cutout facing downwards, under the presser foot.
● Loosen screw 10 and push pin 11 out.
● Loosen screw 12.
● Position the presser foot crosswise so that its edge is parallel with the needle plate
cutout
● Move lifting piece 13 fully down and tighten screw 12.
Leave screws 4 and 10 loose for the next adjustment.
12
11
7
6
2
1
3
13

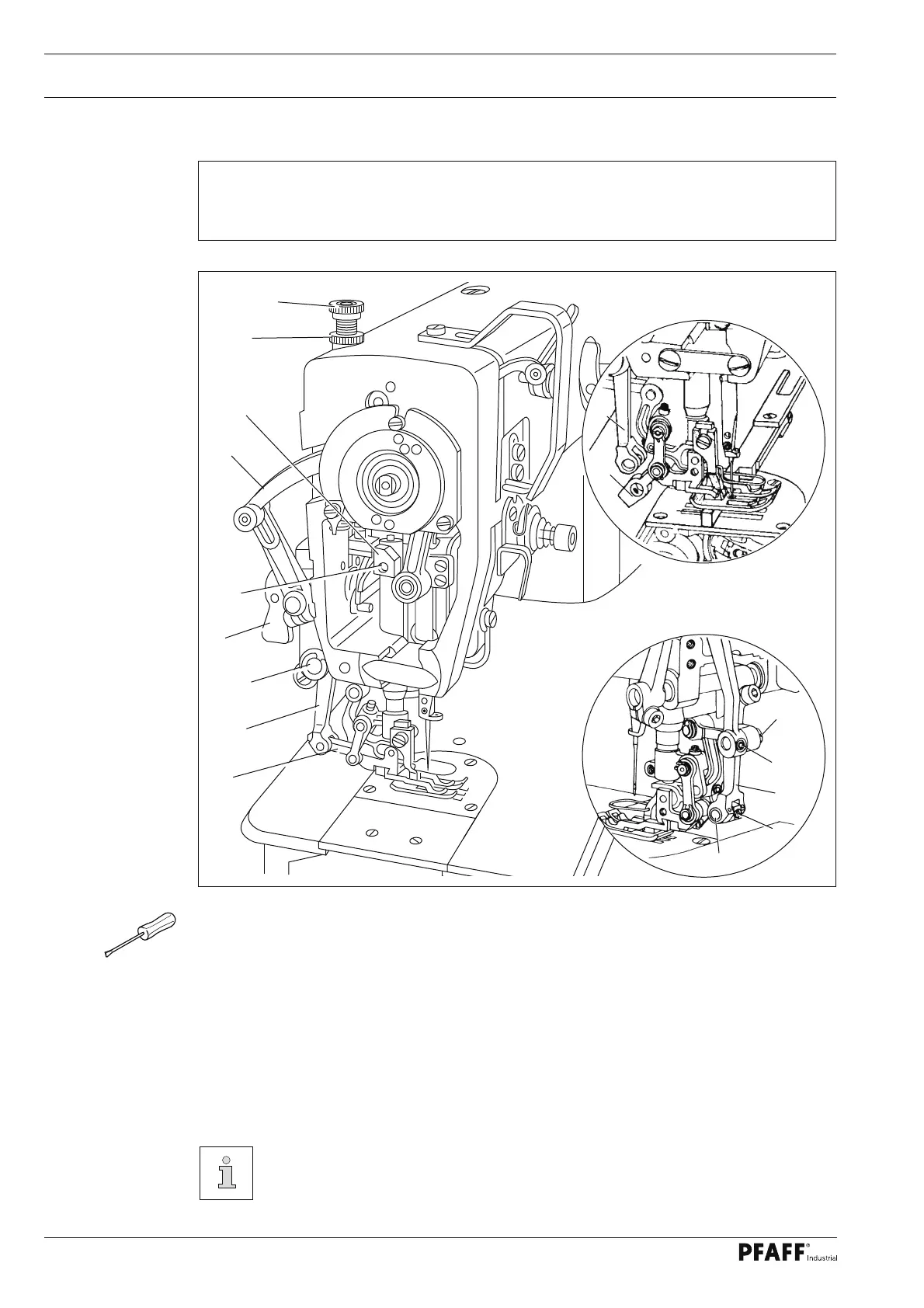

Fig. 1 - 10
8
6
4
7
11
10
5
7
1.06.09 Clearance between presser foot and needle plate
Requirement
When lifting lever 1 is raised there must be a clearance of 5 mm between the presser foot
and the needle plate.
