Pfaff 487 Adjustment Manual

Adjustment
34
1.06.28 Knee lever stroke limitation
Requirement
When the knee lever has been moved to the end stop, there should be a clearance of
9 mm between the presser foot and the needle plate, and the hand lever should drop
down through its own weight.
● Unscrew screw 1 (nut 2) a few turns.
● Raise the presser bar lifter
● Place the 9 mm thick part of the feeler gauge under the presser foot and lower
the presser bar lifter.
● Making sure that the presser foot does not lift off the feed dog gauge, press the knee
lever fully to the right and hold it there.
● Turn screw 1 fully in and then back out by a half turn.
● Tighten nut 2.
2
1

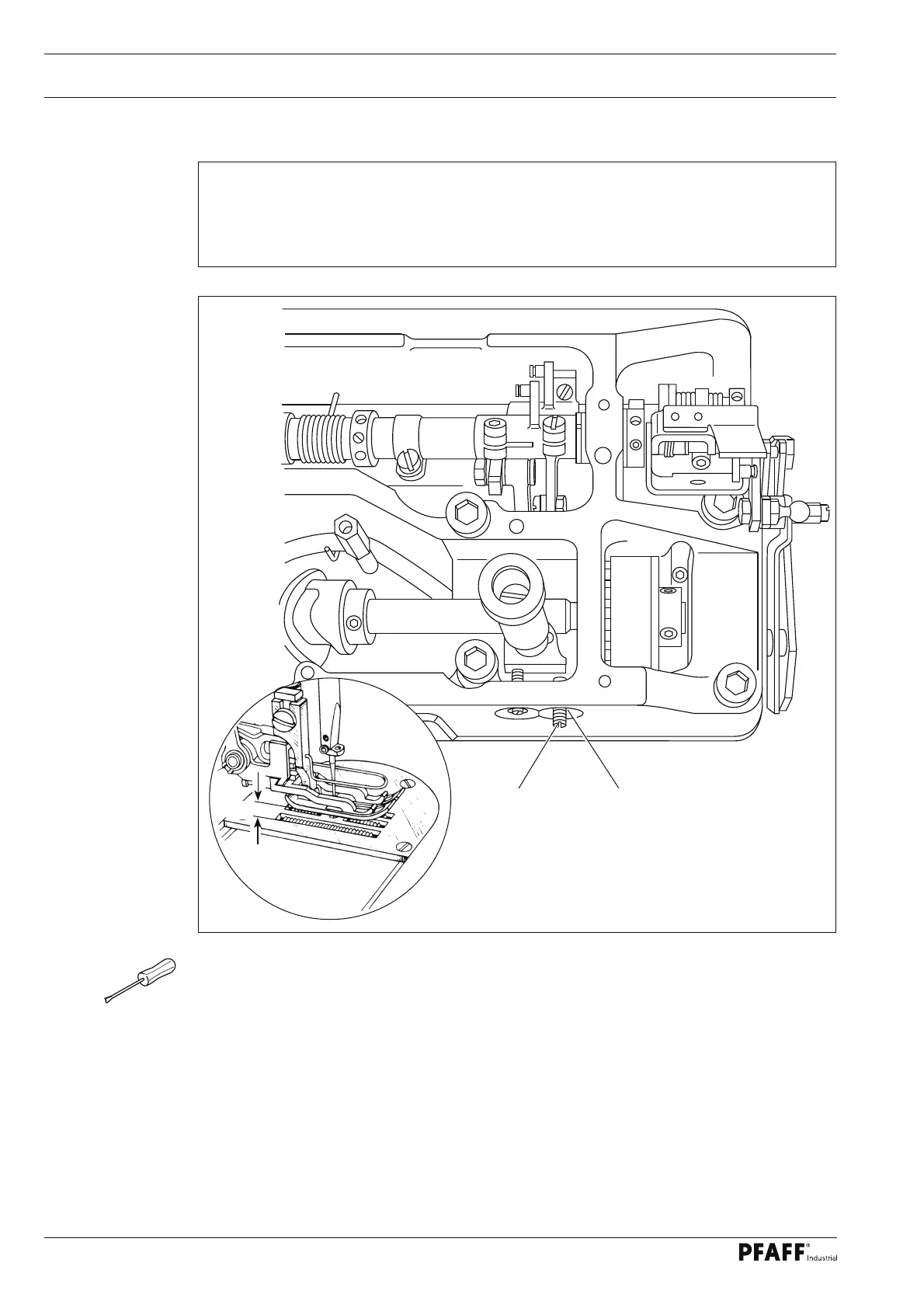

Fig. 1 - 30
9mm
