Pfaff performance 2054 - Page 16

110 pages

To Next Page

To Previous Page

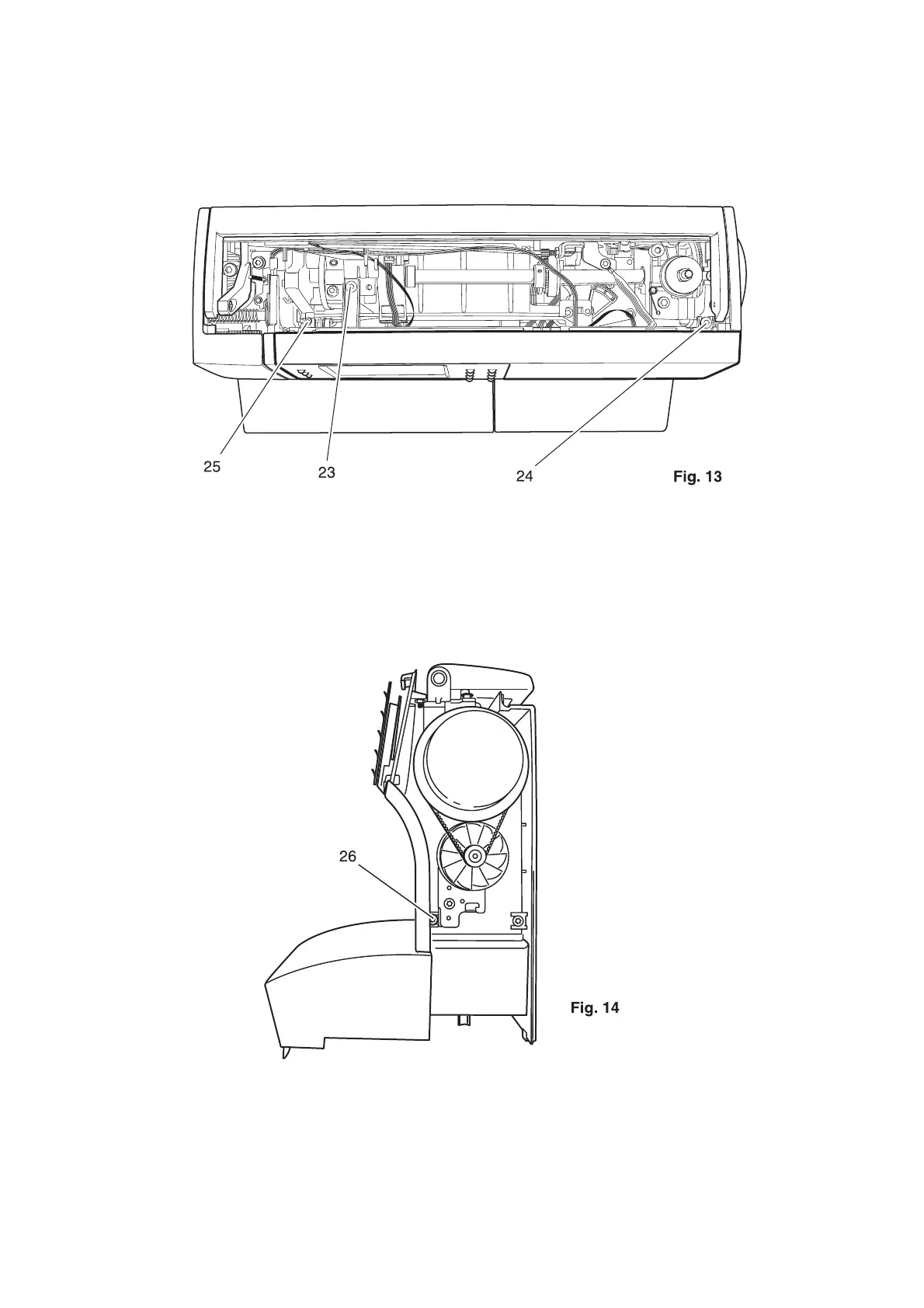

• Loosen fastening screws 23, 24 and 25 (fig. 13) as well as fastening screw 26 (fig. 14).

• Remove the front housing shell carefully.
