Dismantling the housing cover
Note: Before adjusting or repairing the machine, make sure dismantle the housing covers
according to the adjustment and repair instructions.
• Pull out the mains plug and the socket on the machine.
• Remove the needle and the presser foot shoe.
• Remove the detachable work support.
• Remove the top cover.
• Unscrew and remove the two torx screws of the housing insert.
• Remove the housing insert.

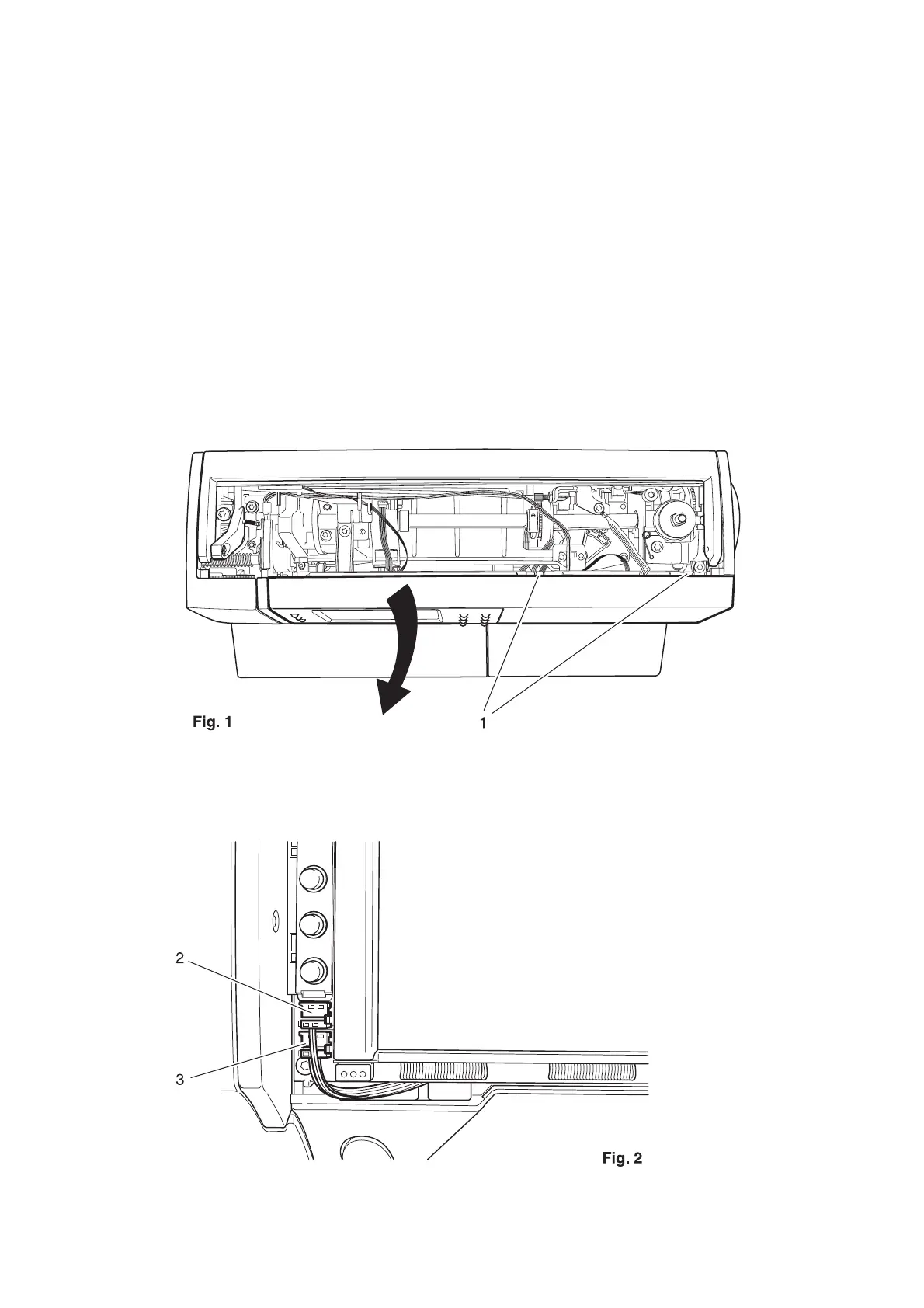

• Slightly raise both lugs 1 and remove the facing panel of the front housing panel by swiveling
it downwards (fig. 1).
• Remove connection plug 2 and 3 from the circuit board (fig. 2).
