Pfaff performance 2054 User Manual

11
• Loosen the torx screw on the face plate.

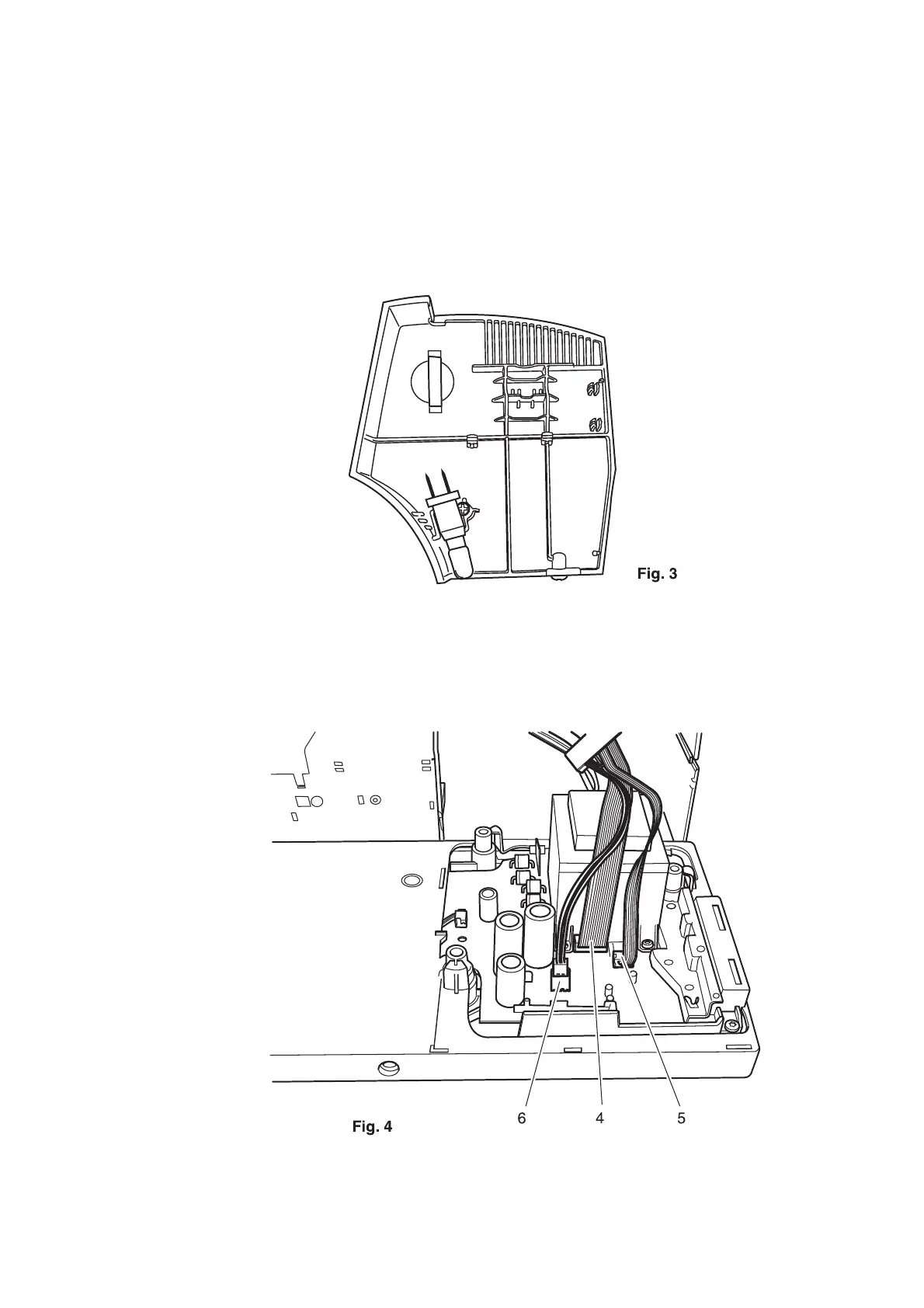

• Remove the complete face plate together with the sewing lamp and cable (fig. 3).
• Remove the carrying handle.
• Unscrew and remove the three fastening screws on the baseplate.
• Tilt the baseplate toward the front.
• Remove 12-wire flat cable 4, remove 6-wire flat cable 5 and motor cable 6 from the
circuit board (fig. 4).
