12

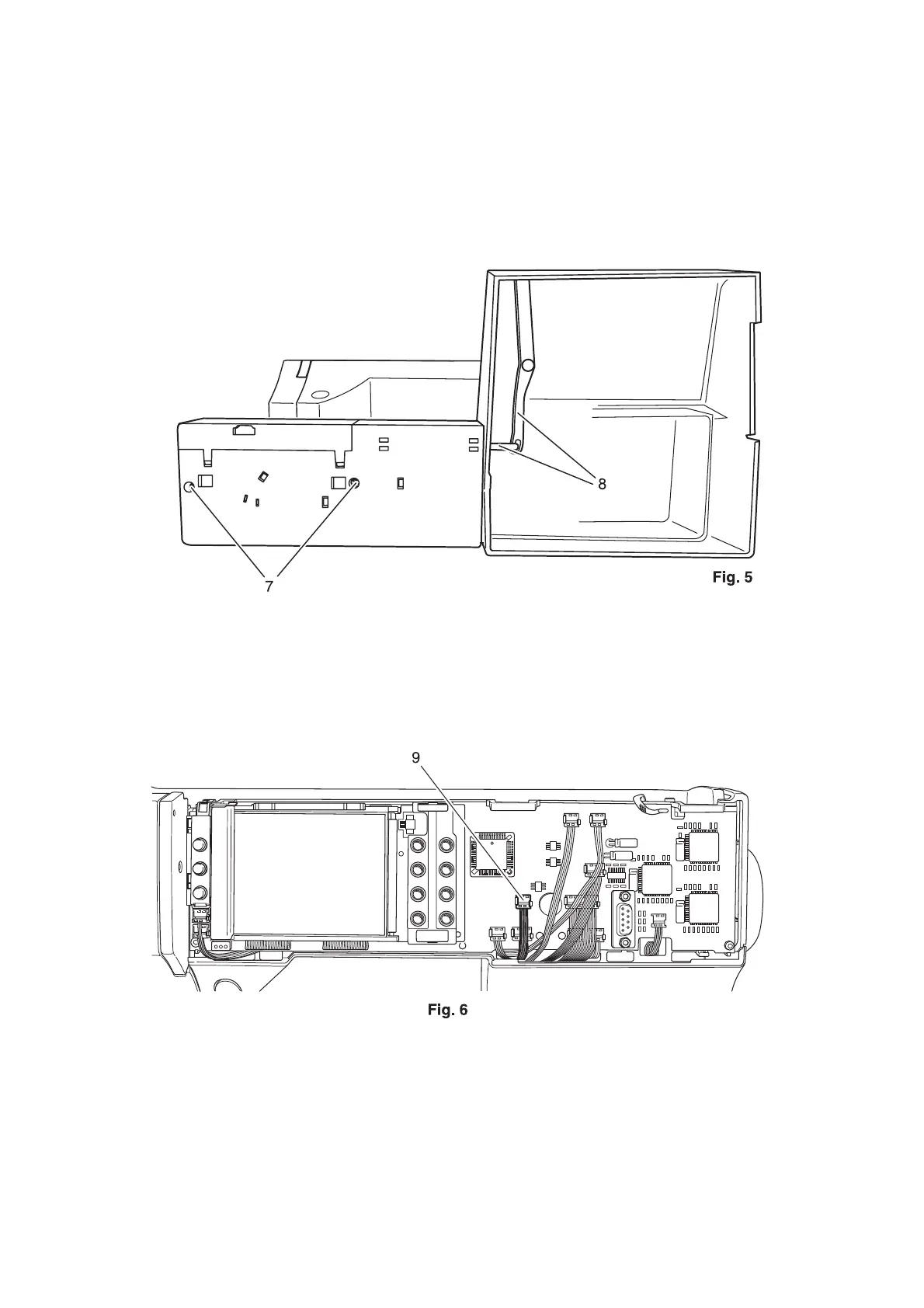

• Unscrew and remove both fastening screws 7 on the free-arm cover (fig. 5).
• Put the feed drop mechanism in its normal working position.
• Using a small screwdriver, disengage both feed regulators 8.
• Open the cable clip.
• Remove the green connection plug 9 from the circuit board (fig. 6).
• Remove the free-arm lid carefully from the housing, to the left.
