Pfaff performance 2054 - Adjustment of Bobbin Winder Stop

46
18. Adjustment of bobbin winder stop
Requirement:
The bobbin winder must stop when the thread has reached a level of 1 mm below the bobbin rim.
Check:
• Wind a bobbin and check that the winder stops as required.
Adjustment:

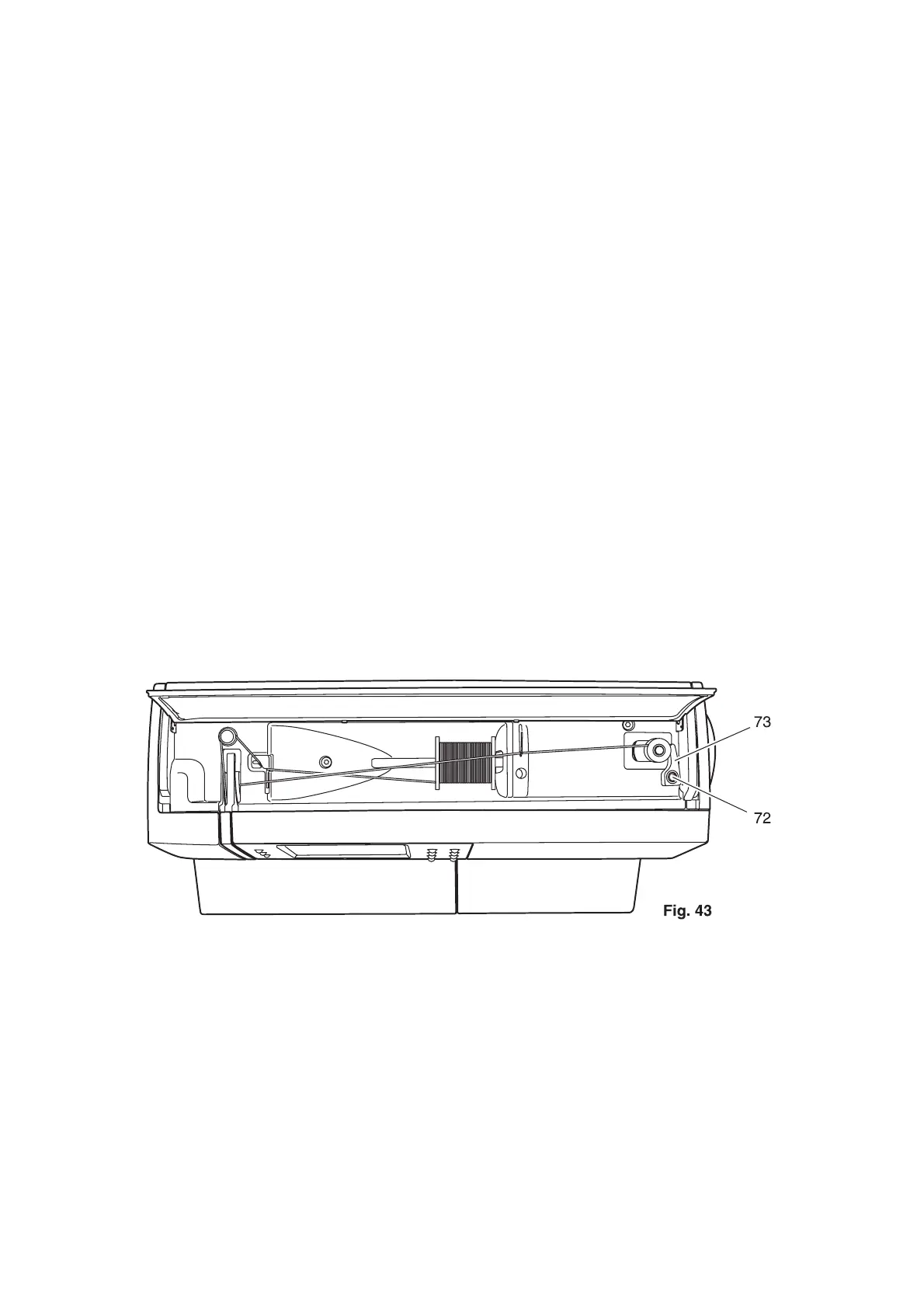

• Loosen screw 72 (fig. 43).
• Position stop 73 to the left for less thread and to right for more thread.
• Tighten screw 72.
Cross-check:
• Wind a bobbin and check that the winder stops as required.
