38. Changing the SD motor unit
Removing:
• Remove the machine’s plug from the mains.
• Take off the needle and the presser foot shoe.
• Take off the detachable work support.
• Take off the folding cover.
• Release the screw on the top cover.

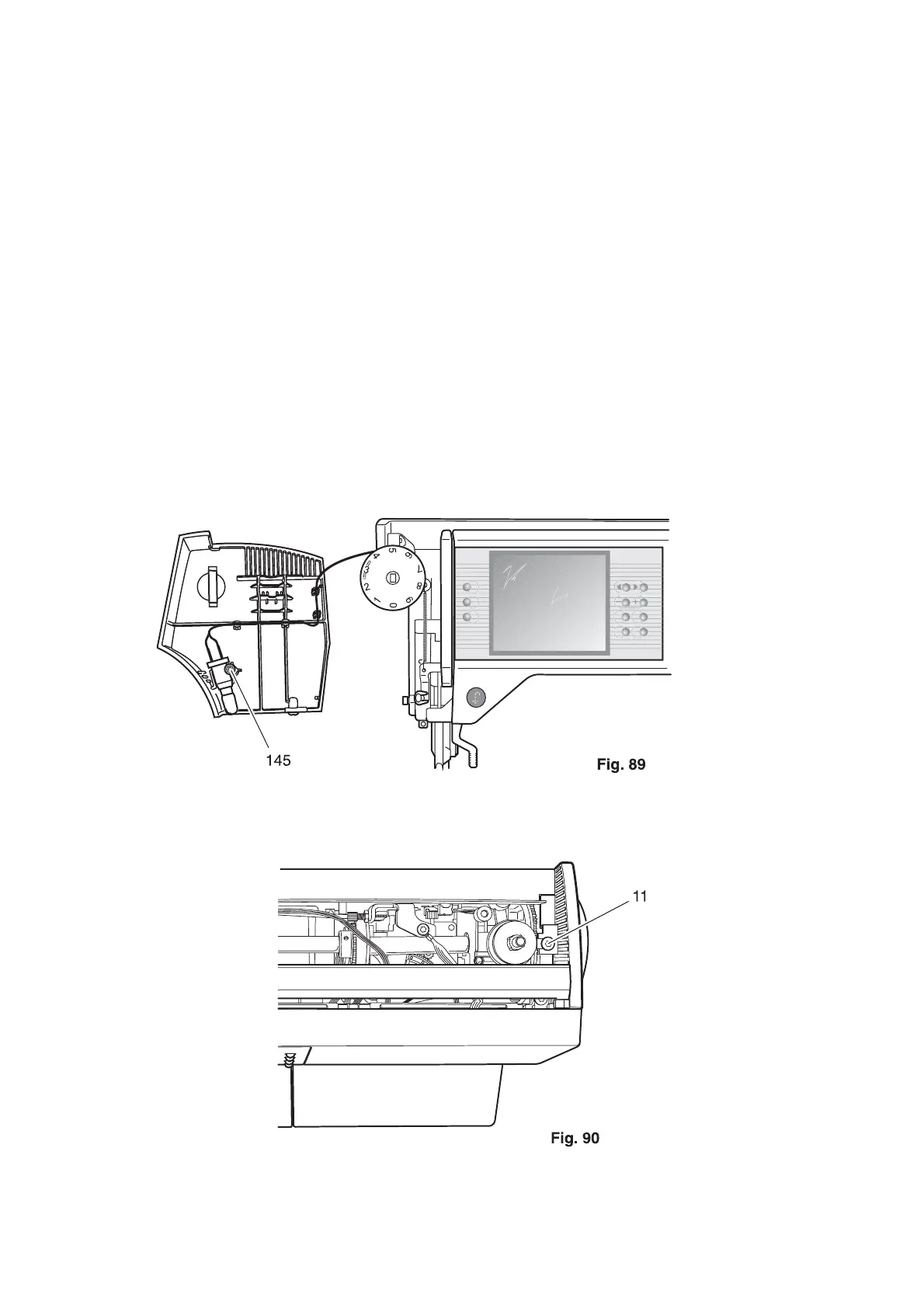

• Carefully set down the top cover to one side, complete with sewing light and lead (fig. 89).
• Release screw 145.
• Remove the sewing lamp with lead from the guide.
• Take off the top cover.
• Remove the two torx screws from the housing insert.
• Remove the housing insert.
• Remove screw 11 from the stand lid (fig. 90).
• Raise both lugs 1 slightly and remove the facing panel in the direction of arrows.
