74
32. Changing the keypad
Removal:
• Remove the mains lead from the mains socket and from the machine.
• Remove the detachable work support.
• Remove the folding cover.
• Unscrew and remove both torx screws of the housing insert.
• Remove the housing insert.

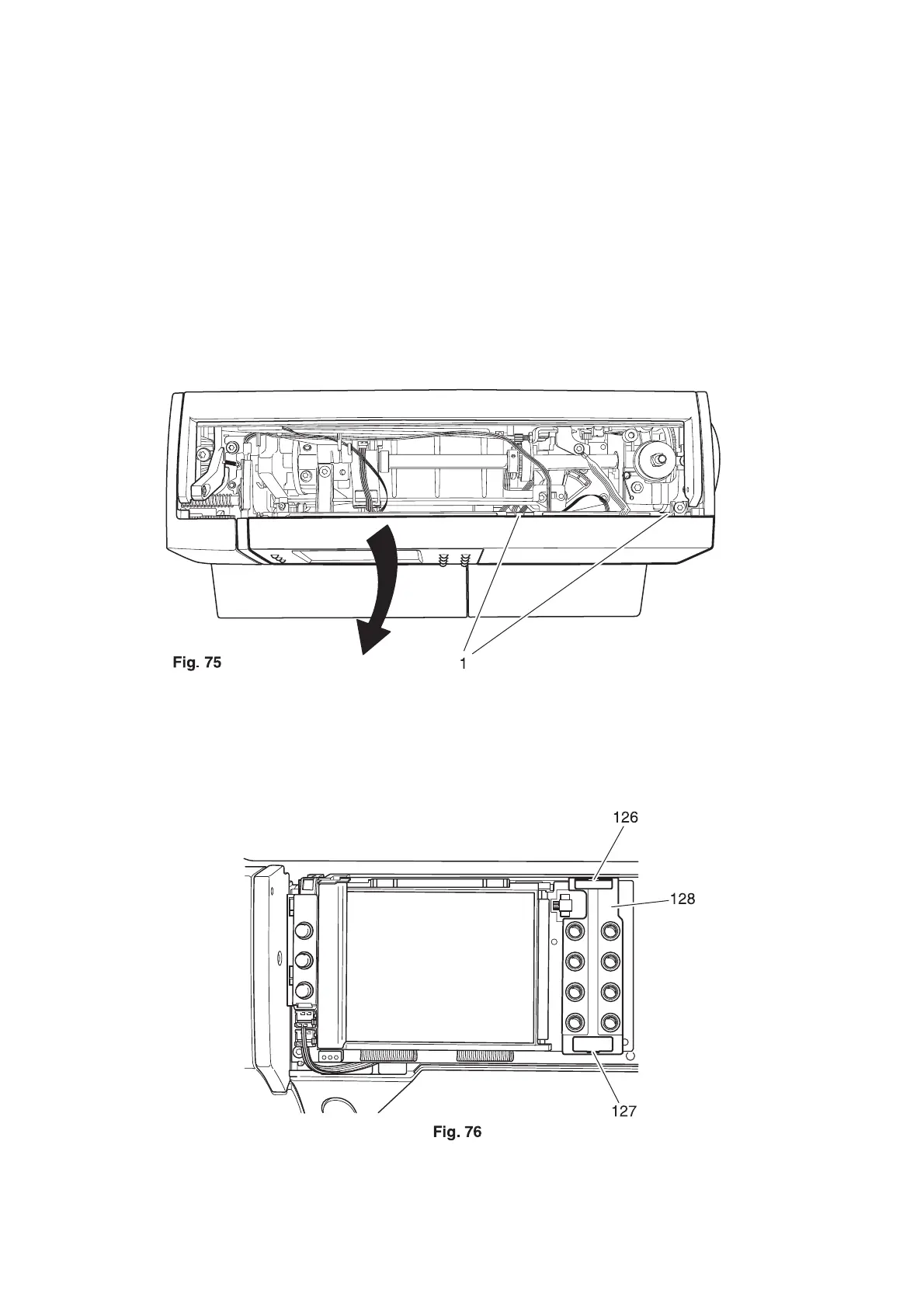

• Raise both lugs 1 slightly and remove the facing panel of the front housing panel in the direction
of the arrow (fig. 75).
• Raise both lugs 126 and 127 up and down slightly (fig. 76).
• Push the complete keypad 128 slightly up until the keypad can be removed from the circuit
board.
