Pfaff performance 2054 - Adjustment of Bevel Gears

39
13. Adjustment of bevel gears
Requirement:
The bevel gears must move freely and without play.
Adjustment:

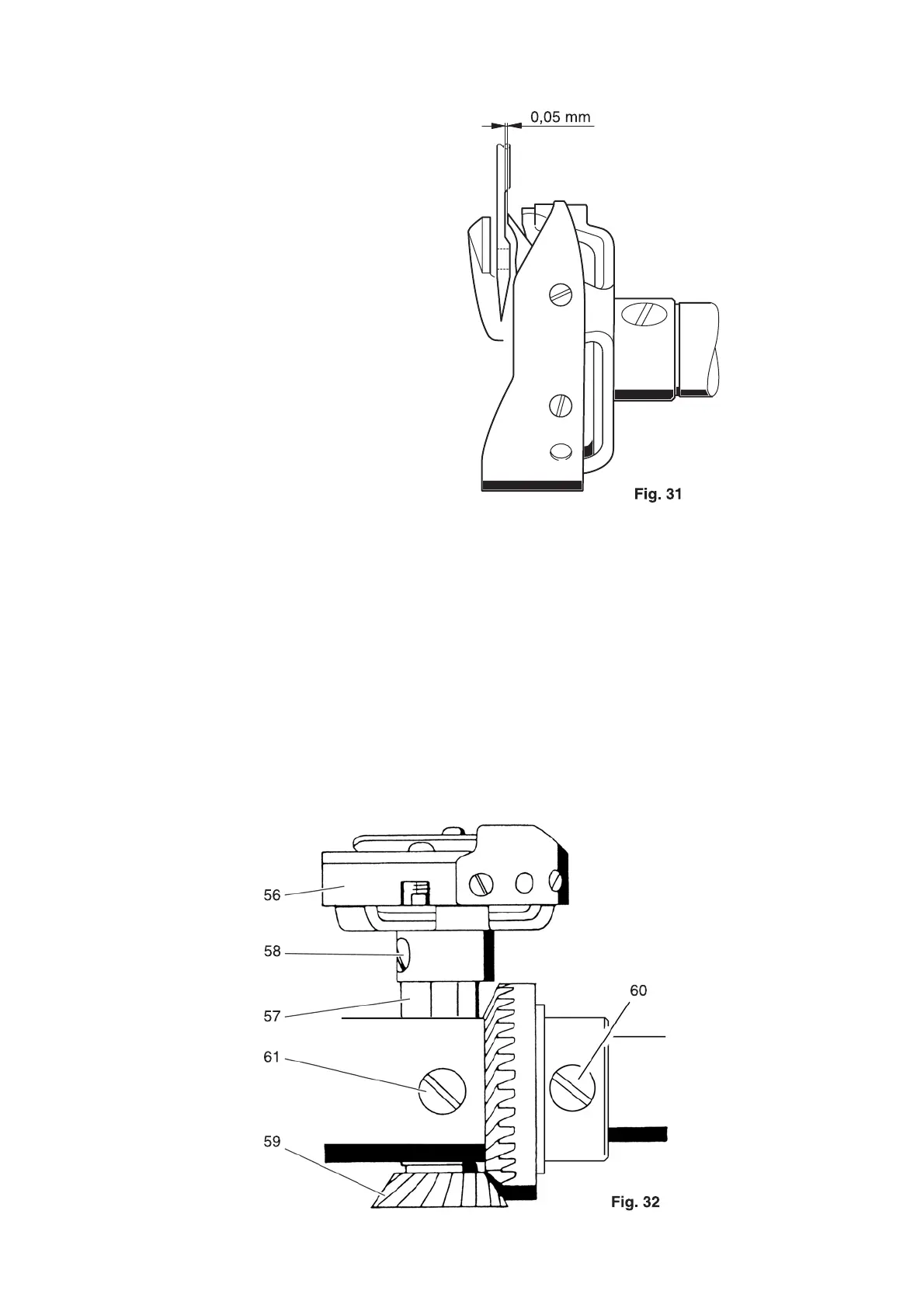

• Push the bevel gear with the lifting eccentric to the left until it is in contact with bevel gear 59 and has
no play (fig. 32).
• Tighten screw 60 on the surface of the drive shaft.
Check:
• As described under „Requirement“.
