• Engage the Bowden cable at the presser bar guide.

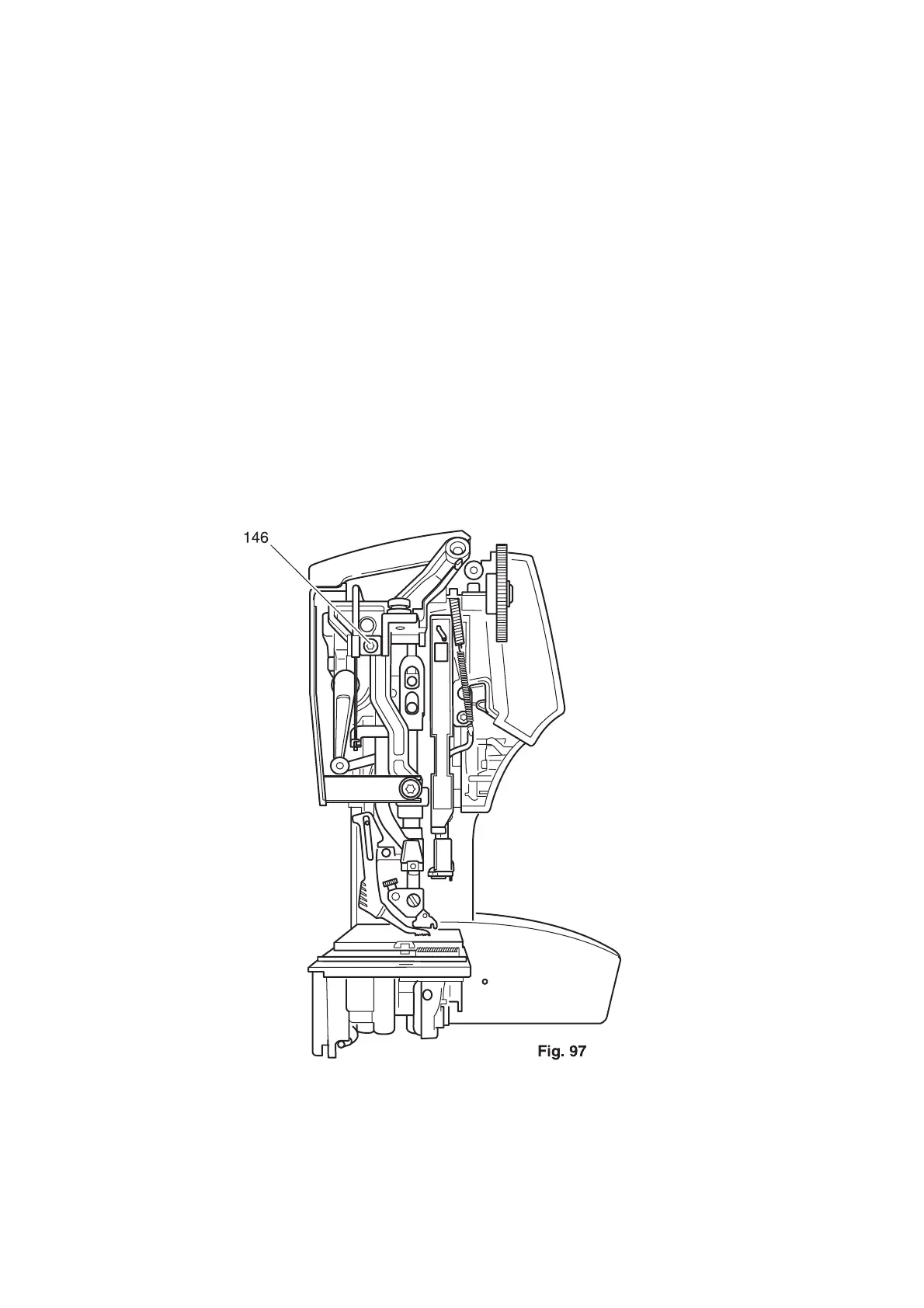

• Position the Bowden cable’s clamping plate and secure with screw 146 (fig. 97).
• Insert the carrying handle 142 in the bracket (fig. 98).
• Fit the complete bracket.
• Tighten the two screws 143.
• Tighten screw 25.
• Position the flat cable correctly in the cable guides.
• Fit the stand cover and secure with screw 11 (fig. 99).
• Adjust the free motion foot height as described in shell 9 of the adjustment and repair manual.
• Mount the facing panel onto the front housing panel and make sure that both lugs 1 lock fully into
place.
• Insert the housing insert and secure.
• Fit the complete top lid.
• Check the operation of SD motor unit.
