24
10. Technical Data
Variables Unit TCP 3000
Pumps, driven by TCP 3000 TPH 2303
OnTool Booster 150
Connection voltage (1-phase/L1-N) V AC
~230-240 V (±10 %)
Connection voltage (3-phase/Lx-Lx) V AC 3
~208-240 V (±10 %)
Current (single phase), max. A 22
Current (threephase), max. A 10,5
Rated input (single phase) kVA 4,65
Rated input (threephase) kVA 3,45
Frequency Hz 50-60
Motor connection output voltage V 0...U
in
Motor connection output current A 16
Permitted ambient temperature °C 5 - 40
Relative humidity, max., without
condensation: % 80/50
1)
Air pressure kPa 86-106
Installation height, max. m 2000
Protection category IP 20
Safety class I
Pollution level 2
Excess voltage class II
Run-up time, adjustable min 1-120
Rotation speed switch point % 50-97
Interface RS-485
RS-232
Remote
Rotation speed setting mode,
adjustable % 20-100
Weight kg 7,1
Unit protection Littlefuse FLQ 20
1) 80 % at T
≤ 31 °C; up to 50 % at T ≤ 40 °C

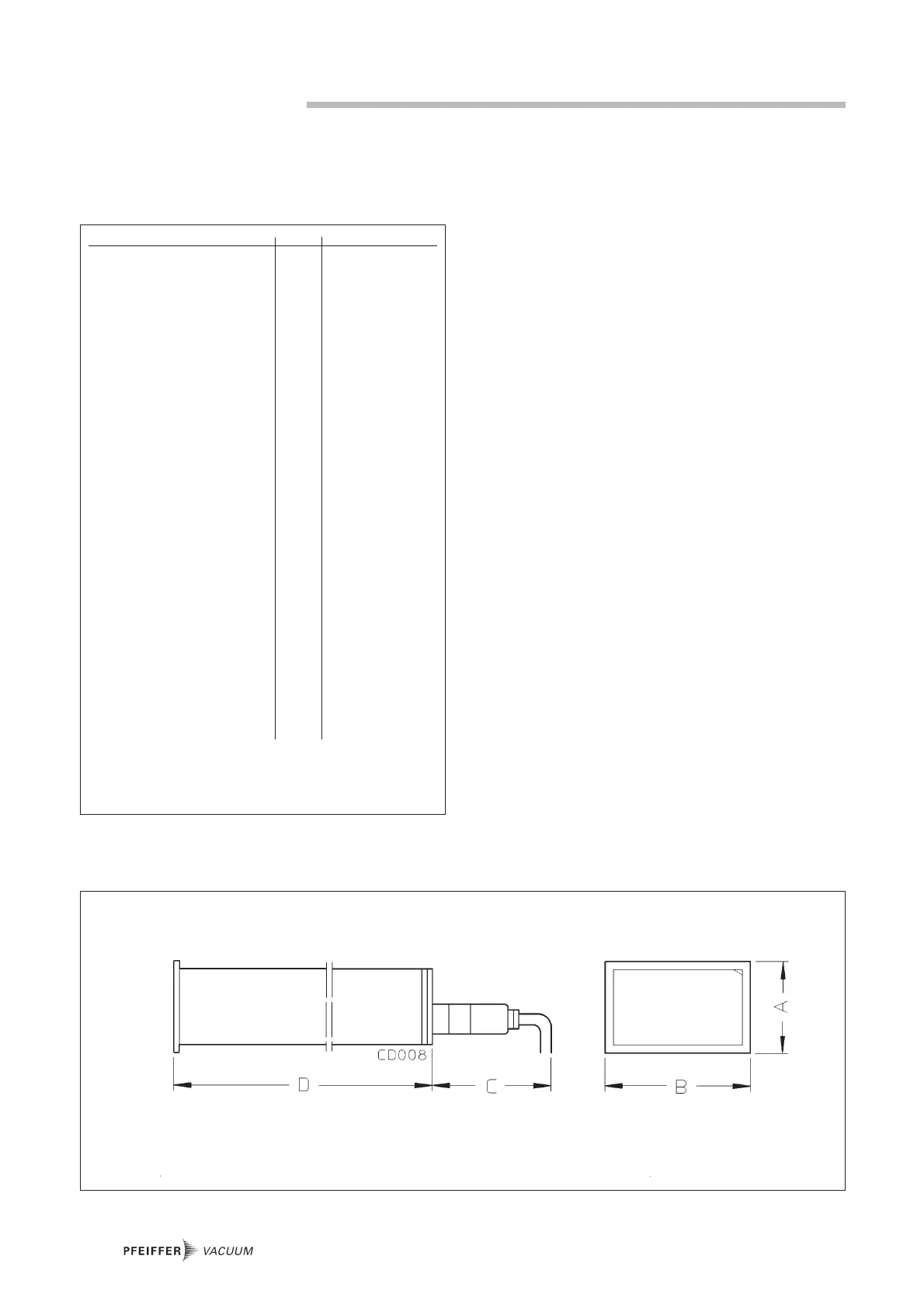

10.2. Dimension Diagram
10.1. Data List For TCP 3000 Electronic Drive
Unit
A 128,5 mm
B 213 mm
C 200 mm
D 459 mm
Dimension diagram of TCP 3000
