Pfeiffer TPG 261 - Page 41

BG 5195 BEN / A (2011-05) TPG261.oi 41

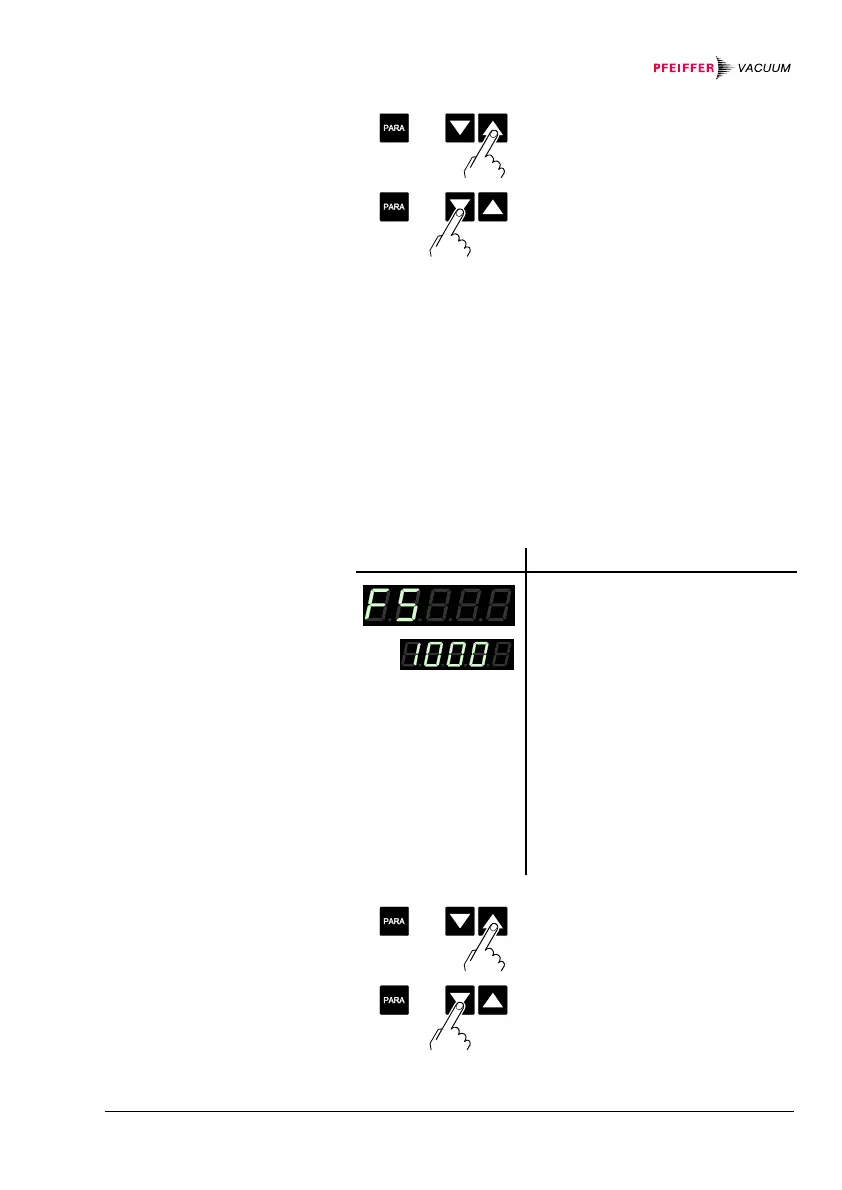

Ö Press key <1 s:
The value is increased/
decreased by 1 increment.
Press key >1 s:
The value is increased/
decreased continuously.
For linear gauges, the full scale (F.S.) value has to be
defined according to the connected gauge type. For
logarithmic gauges it is automatically recognized.
Available for:
 Pirani Gauge
(TPR)
 Pirani Capacitance Gauge (PCR)
 Cold Cathode Gauge
(IKR)
 FullRange™ CC Gauge
(PKR)
 Process Ion Gauge
(IMR)
 FullRange™ BA Gauge
(PBR)
; Capacitance Gauge
(CMR)
; Piezo Gauge
(APR)
Value
e.g.:
Ö 0.01 mbar
0.1 mbar
1 mbar
10 mbar
100 mbar
1000 mbar
2 bar
5 bar
10 bar
50 bar
Conversion table
→ Appendix  95
Ö The value is increased/
decreased by the defined in-
crements.
Measurement range
(F.S.) of linear
gauges
