170B6 LCD

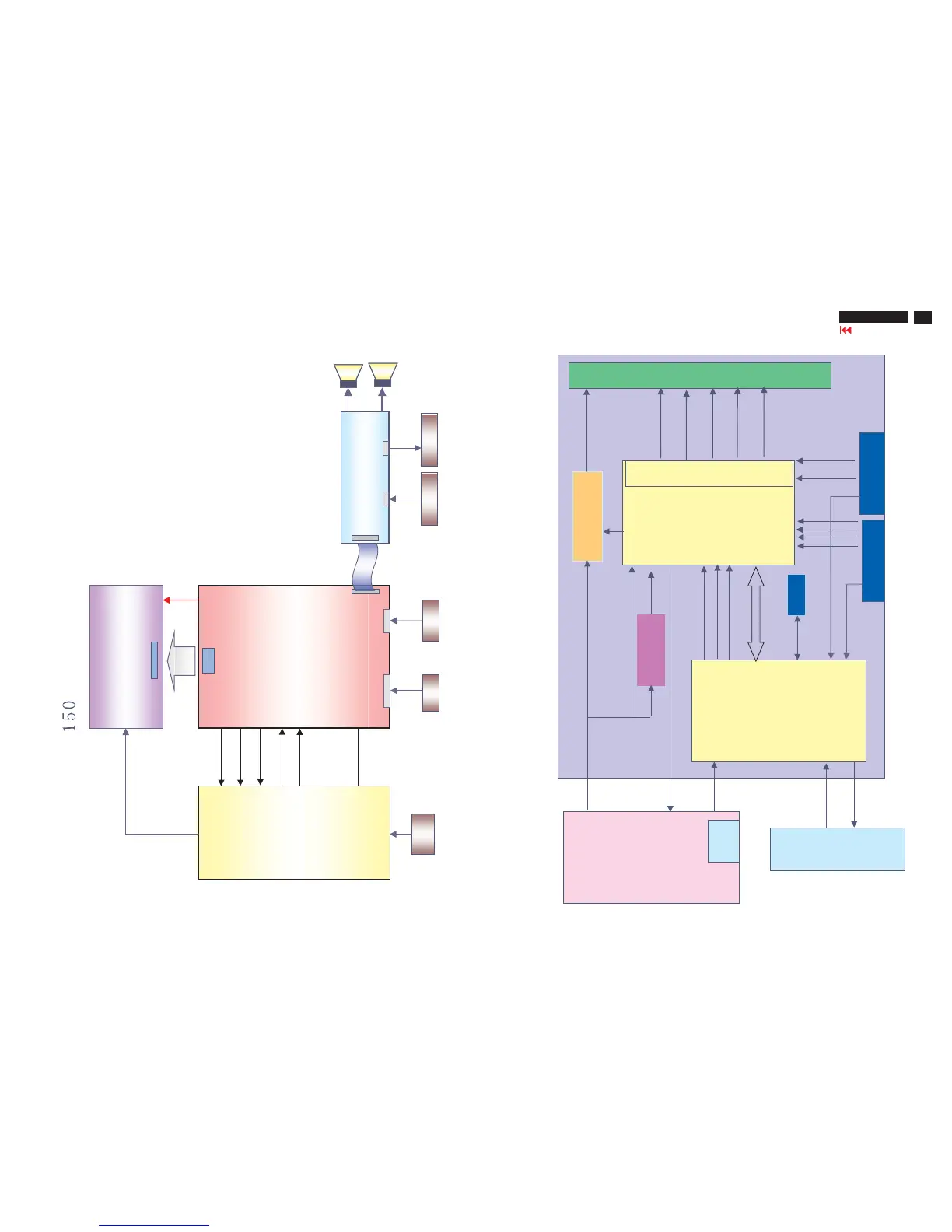

Block Diagram-1(150B6)
Audio &
Control
Board
Scaler
Board
12V
Brightness
GND
AC
BL_CTRL
Panel_ID
3.3V
Panel
3.3V
LVDS
LIPS
Backlight
Audio & Control
Board
PC-Audio
Headphone
DVI-D
VGA
B6 System Block Diagram
v
Scaler
NT68563XF
R
/
G
/
B
ADDR, Data
20 Pin Connector to panel
TXO3
(N/P)
LVDS
HS/VS
24C16
IIC
LIPS
BL_EN, Brightness
Panel PWR
LD1117AS33
Control
Board
LD1117AS18
SCL,SDA(ISP)
Key
LED
AC
input
CPU
NT68F633
(64K)
RSTN
HSO
VSO
1.8V
3.3V
TXO2
(N/P)
TXO0
(N/P)
TXO1
(N/P)
TXOC
(N/P)
D_sub
3.3V
Panel_PWR
3.3V
DVI
RX0,1,2, RXC
SCL,SDA(DVI)
150B6 Scaler Board Block Diagram
