Philips 150B6CB/00 - Page 38

38
Go to cover page
170B6 LCD

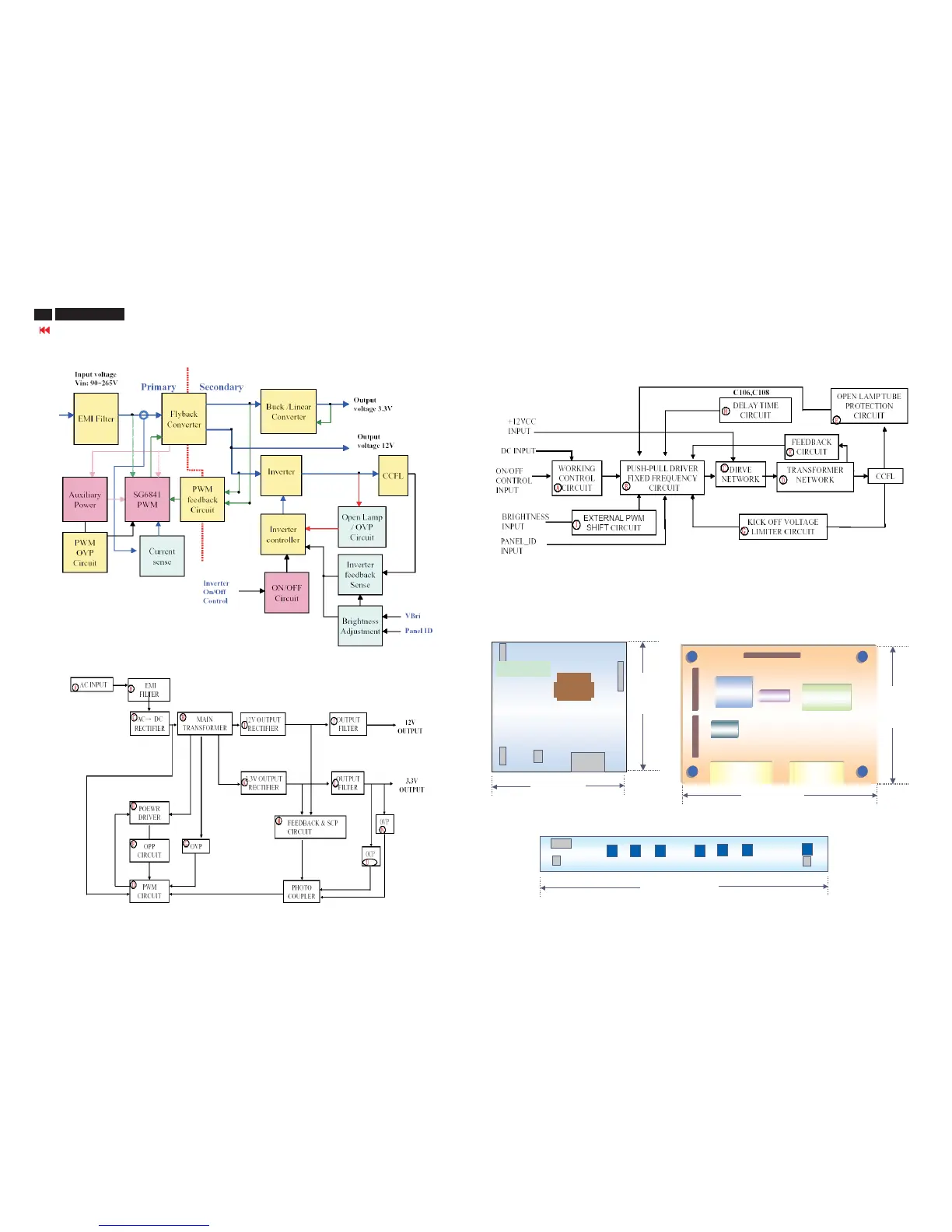

Block Diagram-2(150B6)
150B6 LIPS Block Diagram_Foxconn
150B6 LIPS Block Diagram_Foxconn
150B6 LIPS (Adapter)Block Diagram_Lienchang
150B6 LIPS (Adapter)Block Diagram_Lienchang
150B6 LIPS (Inverter)Block Diagram_
150B6 LIPS (Inverter)Block Diagram_
Liechang
Liechang
150B6 Layout Placement
LIPS Board
AC
12V
XGA : 2 lamps
115 mm
135 mm
270 mm
40 mm
Control Board
TransformerTransformer
To scaler
11 Pin
To scaler
11 Pin
110 mm
Scaler
DVI-D
DSUB
MCU
Crystal
74 mm
M24C16
To LI PS
11 Pin
To control board
11 p in
To speaker
2 Pin
To speaker
2 Pin
