170B6 LCD
Technical Data - 150B6
LCD panel
Type NR. : LG panel LM150X08
Outline Dimensions : 326.5(H) * 253.5(V) *11.2(D)mm
Pitch (mm) : 0.297 x 0.297 mm
Color pixel arrangement : RGB stripe arrangement
Display surface : Anti-glare with hard coating(3H)
Number of color : 6 bits with FRC, 16M colors
Backlight : CCFL edge-light system
Active area (W x H) : 304.1x228.1mm(15.0" diagonal)
Viewing angle (CR
10) : Vertical 100 degree, Horizontal 130
degree typical.
Contrast ratio : 450 typical.
Luminance of white : 250 Nits typical
Type NR. : QDI panel QD15XL13
Dimensions : 326.5(H)*253.5(V)*11(D) mm
Pitch ( mm ) : 0.297 x 0.297 mm
Color pixel arrangement : RGB stripe arrangement
Display surface : Anti-glare with hard coating(3H)
Number of color : 6 bits with FRC, 16M colors
Backlight : CCFL edge-light system
Active area(W x H) : 304.1 x 228.1mm (15.0" Diagonal)
Viewing angle(CR
10) : Vertical 100 degree, Horizontal 120
degree typical.
Contrast ratio : 500 typical.
Luminance of white : 250 Nits typical
Viewing angle(CR
10) : Vertical 100 degree, Horizontal 120
degree typical.
Contrast ratio : 500 typical.
Luminance of white : 250 Nits typical
Power supply
Main voltage : AC 90 - 264 Vrms, 50/60±3Hz
Power consumption : 28Watts max
Operating < 23W(typical)
Sleeping < 1W
DC power switch off < 1W
Power cord length : 1.5M
Powercordtype :3leadwithearthplug
Power indicator : LED (on: green, sleep: amber,).
Auto power saving : EPA, Nutek, VESA DPMS
Horizontal scan : 30 - 63 KHz
Vertical scan : 56 - 76 Hz

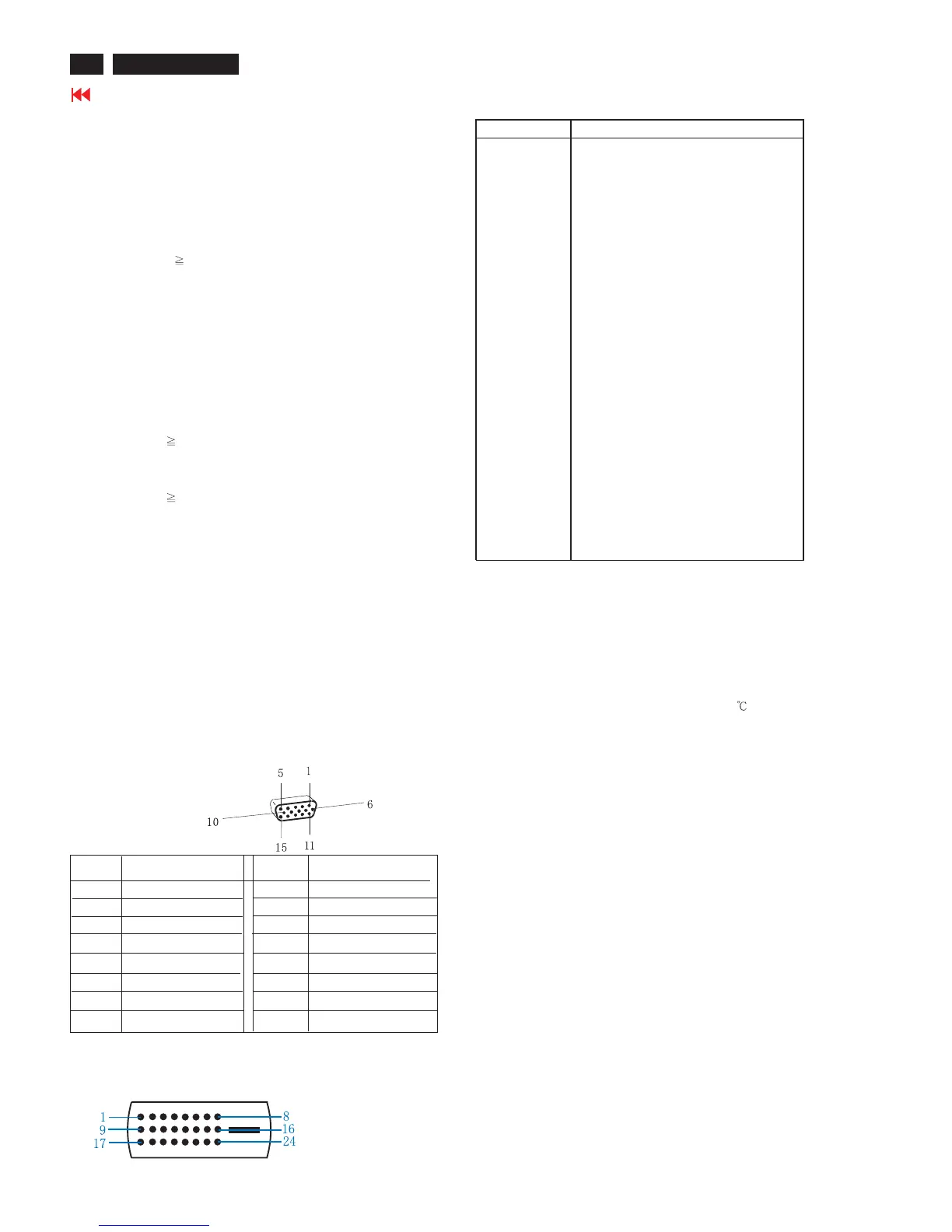

Pin Assignment
Input DVI-D connector pin
Red video input
Green video input
Blue video input
GND
Cable detect
Red video GND
Green video GND
Blue video GND
DDC +3.3V OR +5V
GND
GND
Serial data line (SDA)
H-sync
V-sync
Data clock line (SCL)
7
8
6
5
4
3
2
1
9
10
11
12
13
14
15
Pin No.
Pin No.
Assignment
Assignment
Pin No. Description
1
T.M.D.S. data2-
2
T.M.D.S. data2+
3
T.M.D.S. data2 shield
4
No Connect
5
No Connect
6
DDC clock
7
DDC data
8
No Connect
9
T.M.D.S. data1-
10
T.M.D.S. data1+
11
T.M.D.S. data1 shield
12
No Connect
13
No Connect
14
+5V Power
15
Ground (for +5V) - Cable detect
16
Hot plug detect
17
T.M.D.S. data0-
18
T.M.D.S. data0+
19
T.M.D.S. data0 shield
20
No Connect
21
No Connect
22
T.M.D.S clock shield
23
T.M.D.S. clock+
24
T.M.D.S. clock-
Environmental conditions
Operating
-Temperature C : 5° to 40°C
-Humidity : 20% to 80 %
-Altitude : 0 - 12,000 feet
Storage
-Temperature C : -20 to 60°
-Humidity : 5% to 95% ( < 40
)
-Altitude : 30,000 feet
Note: recommend at 5 to 35°C, Humidity less than 60 %
