Technical Data - 190B6
Go to cover page
170B6 LCD

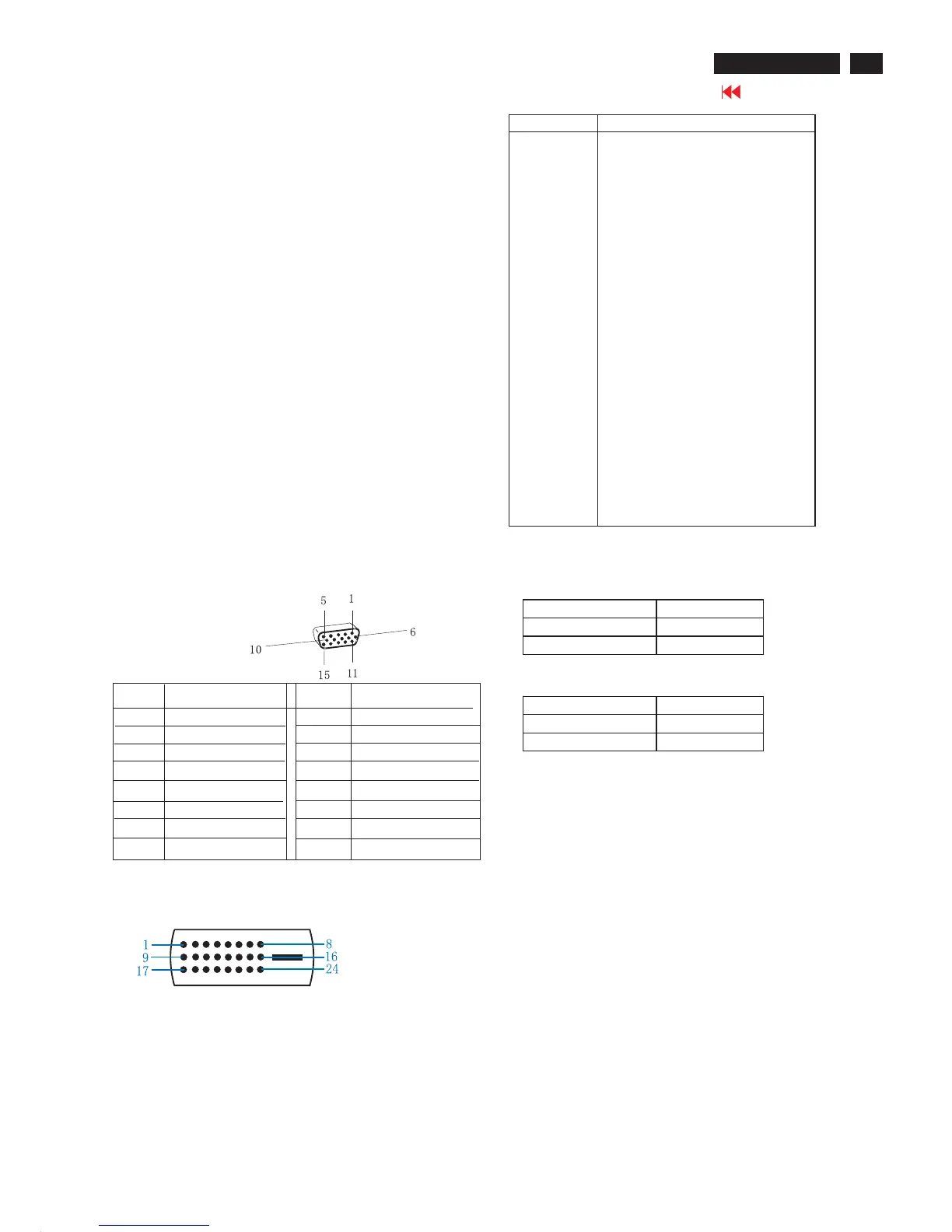

Pin Assignment
Input DVI-D connector pin
Red video input
Green video input
Blue video input
GND
Cable detect
Red video GND
Green video GND
Blue video GND
DDC +3.3V OR +5V
GND
GND
Serial data line (SDA)
H-sync
V-sync
Data clock line (SCL)
7
8
6
5
4
3
2
1
9
10
11
12
13
14
15
Pin No.
Pin No.
Assignment
Assignment
Pin No. Description
1
T.M.D.S. data2-
2
T.M.D.S. data2+
3
T.M.D.S. data2 shield
4
No Connect
5
No Connect
6
DDC clock
7
DDC data
8
No Connect
9
T.M.D.S. data1-
10
T.M.D.S. data1+
11
T.M.D.S. data1 shield
12
No Connect
13
No Connect
14
+5V Power
15
Ground (for +5V) - Cable detect
16
Hot plug detect
17
T.M.D.S. data0-
18
T.M.D.S. data0+
19
T.M.D.S. data0 shield
20
No Connect
21
No Connect
22
T.M.D.S clock shield
23
T.M.D.S. clock+
24
T.M.D.S. clock-
Environmental conditions
Operating
Temperature Range 5°Cto40°C
Humidity Range 20 % to 80%
Altitude Range 0 to 12000 feet
Storage
Temperature Range -20°Cto60°C
Humidity Range 5 % to 95%
Altitude Range 0 to 30000 feet
Note: recommended at 5 to 35°C, humidity less than 60%.
LCD panel
Type NR. : LM190E04-A4
Number of Pixels. : 1280 (H) x1024 (V)
Physical Size. : 396.0(w)*324.0(h)*15.5(d) mm
Pixel Pitch. : 0.294 mm x 0.294 mm
Color pixel arrangement. : RGB vertical stripes
Support Color. : 16.2M colors
Display Mode. : Normally White
Backlight. : CCFL edge light system
Active area. (WXH). : 376.32 x 301.056mm (19" diagonal)
Viewing Angle (CR>=10). : Vertical 140 degree, Horizontal 140
degree (Typ.)
Contrast ratio. : 500:1
White luminance. : 250nits (Typ.)
Type NR. : M190EN04
Number of Pixels. : 1280 (H) x1024 (V)
Physical Size. : 396(w)*324(h)*18(d) mm
Pixel Pitch. : 0.294 mm x 0.294 mm
Color pixel arrangement. : RGB vertical stripes
Support Color. : 16.2M colors
Display Mode. : Normally White
Backlight. : CCFL edge light system
Active area. (WXH). : 376.32 x 301.06 mm (19" diagonal)
Viewing Angle (CR>=10). : Vertical 135 degree, Horizontal 140
degree (Typ.)
Contrast ratio. : 550:1
White luminance. : 270nits (Typ.)
Horizontal scan : 30 - 83 KHz
Vertical scan : 56 - 76 Hz
