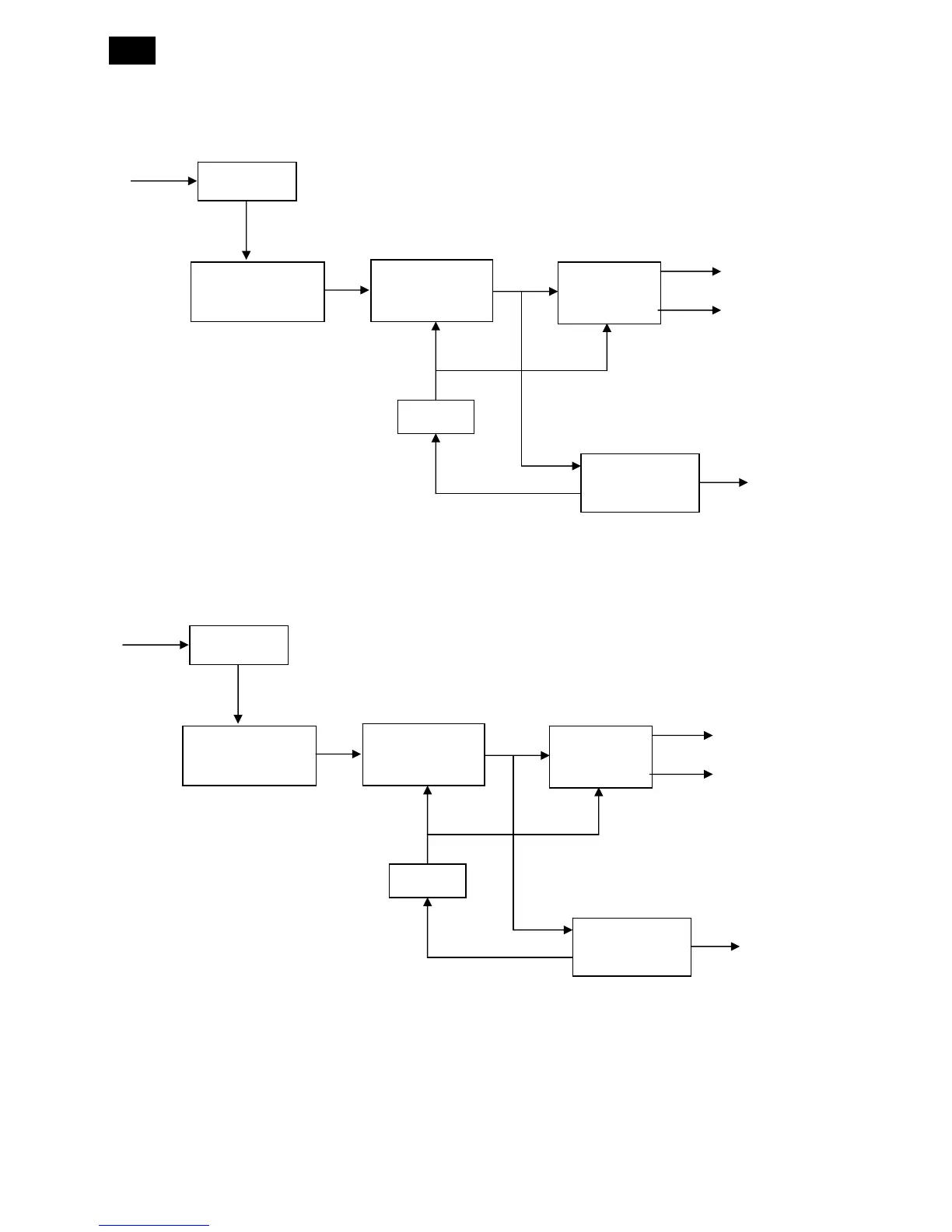

5.2 Power Board
For BDL3215E
For BDL4225E
EMI Filter
PFC Converter
FAN7529MX
AC Input
Bridge Rectifier
GBJ1008
AUX Converter
LD7522PS
Main Power
L6599DTR
PS_ON
+24V
To Backlight and
audio am
p
lifier
+12V
To LVDS
+5.2V
To MCU and
Scaler Board
Vcc
EMI Filter
PFC Converter
ICE2PCS02G
AC Input
Bridge Rectifier
GBJ2508
AUX Converter
A6069H
Main Power
L6599DTR
PS_ON
+24V
To Backlight
+12V
To audio amplifier,
LVDS and DC Fans
+5.2V
To MCU and
Scaler Board
Vcc
