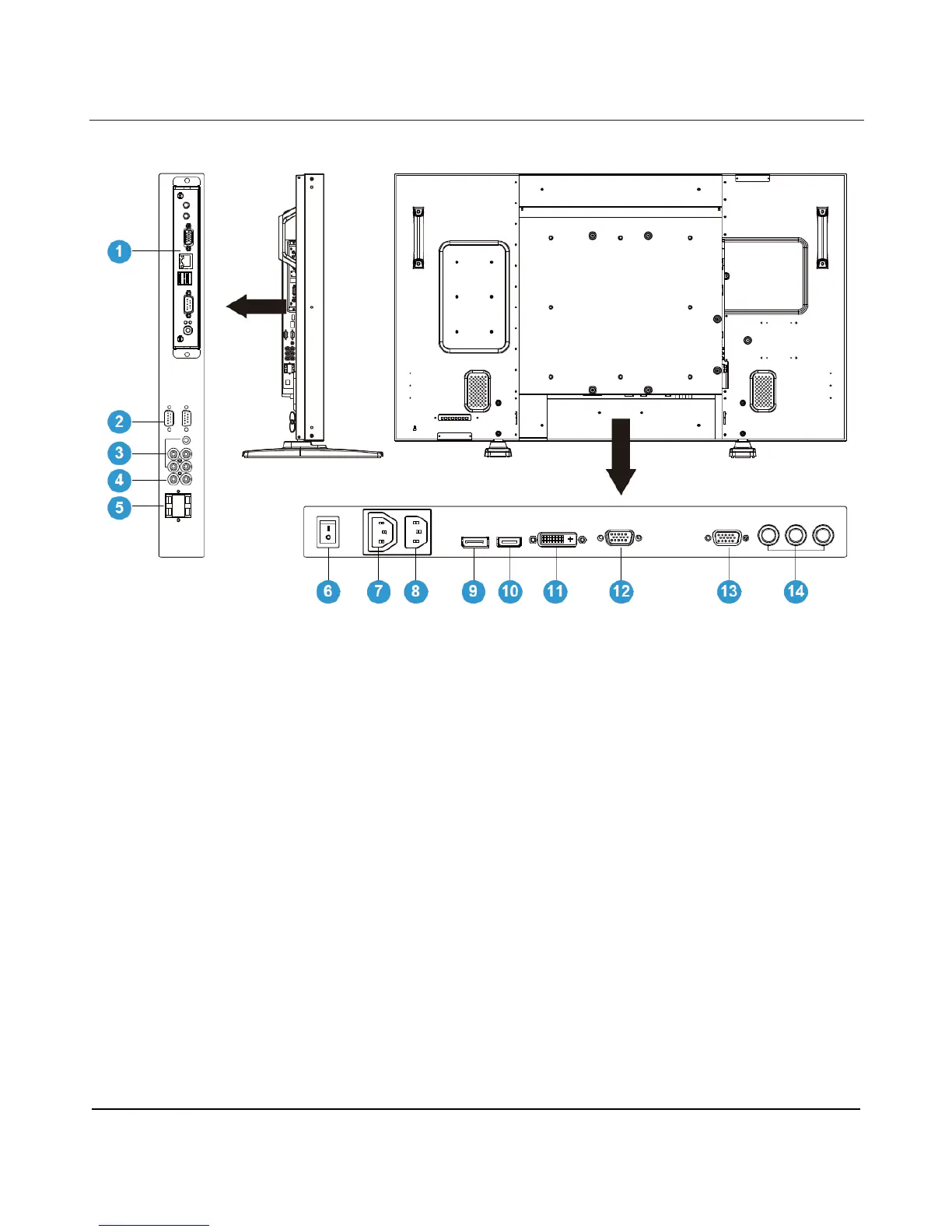

2.3. INPUT/OUTPUT TERMINALS
1. OPS SLOT
Slot for installing the optional OPS module.
2. RS232C (OUT/IN)
RS232C network connection input/output for the use of loop through function.
3. AUDIO IN (AUDIO1/AUDIO2/ AUDIO3)
Connects to the audio output of a computer or an AV device.
4. AUDIO OUT R/L
Outputs the audio signal from the AUDIO IN (AUDIO1/AUDIO2/AUDIO3) or HDMI jack.
5. SPEAKERS R/L
Outputs the audio signal from the AUDIO IN (AUDIO1/AUDIO2/AUDIO3) or HDMI jack to external
speakers.
6. Main power switch
Press to switch the mains power on/off.
7. AC OUT
Connect to the AC IN socket of an external media device. (Rating : 100~240Vac, 50-60Hz, 3A Max.)
8. AC IN
Connect the supplied power cord to the wall outlet.
