INTELIA 04 OPERATING LOGIC
Saeco International Group Rev. 01 / September 2011 Page / 08

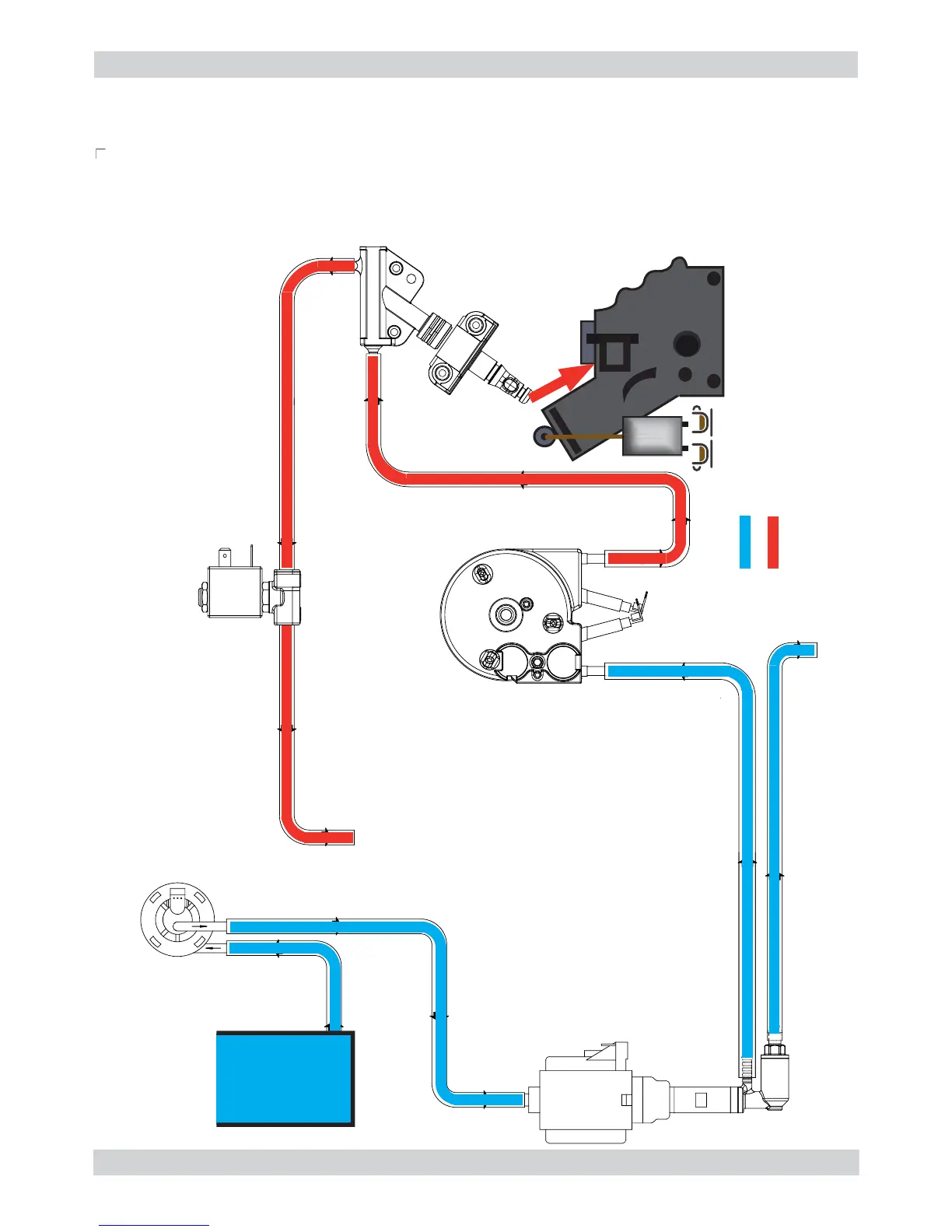

Steam pipe
Compensation valve water outlet
Flow-meter
1900 W boiler
Water
Hot water /steam
Two-way solenoid valve
Pompa
Water tank
Brewing unit
Traditional water system•
Flow meter – Amount of coffee dis-•
pensed into the cup
Reciprocating piston type pump •
(13 - 15 bar)
Compensation valve •
(opening pressure 16 - 18 bar)
Boiler – 1900 W•
Two-way solenoid valve•
Intelia Focus e Class
