5.1.2. Intelia Focus and Class Test mode
1
2
06

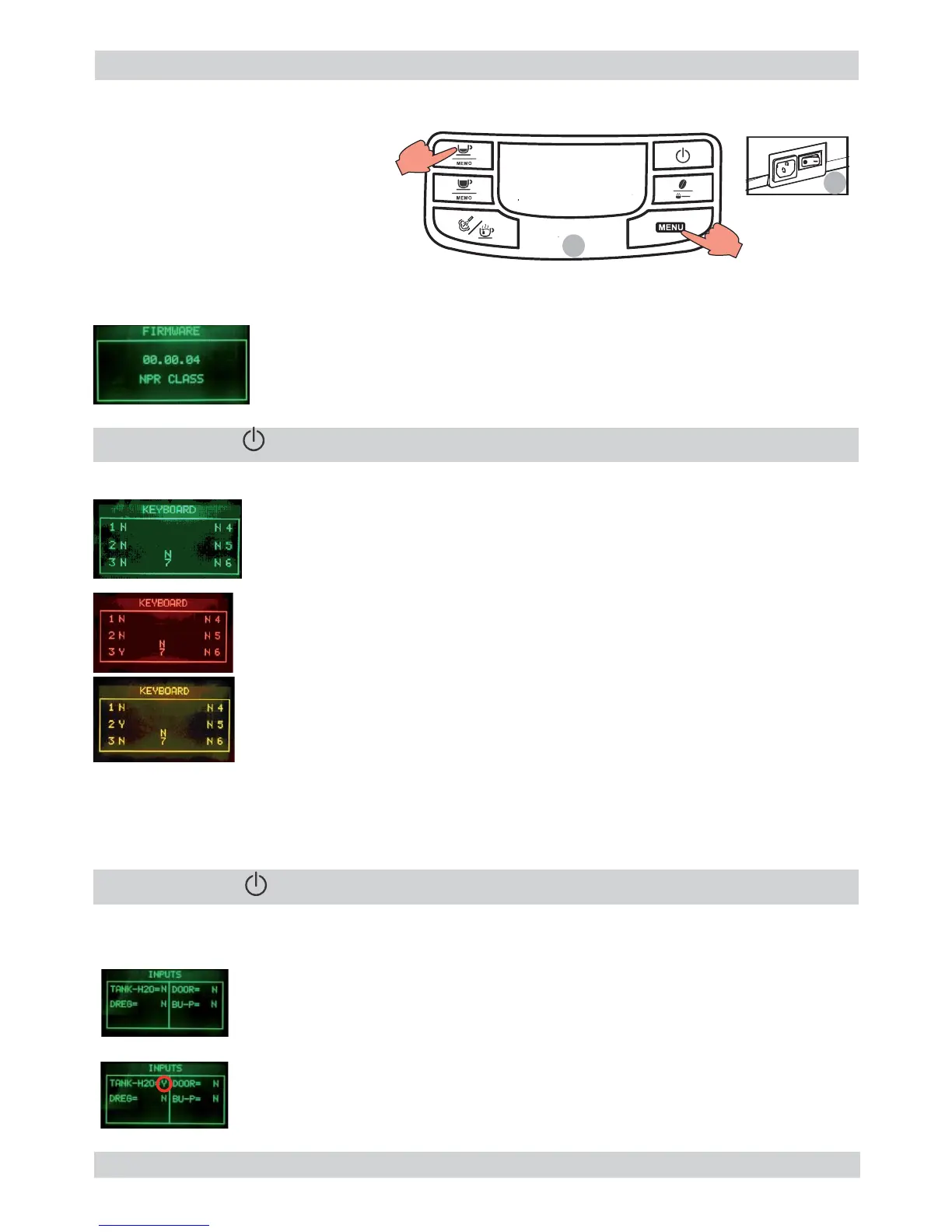

Entry into Test Mode results in a screen divided into sections, as illustrated in the diagram below.
Entry into Test Mode results in a screen divided into sections, as illustrated in the diagram below.
To enter Test Mode
Hold down the Espresso and 1.
Menu buttons.
Switch on the main switch at 2.
the back of the machine.
Firmware Software version
Firmware Software version
Operational check – keys
Operational check – keys
Operational check microswitches and sensors
Operational check microswitches and sensors
Shows the version of the fi rmware loaded for Focus and Class.
Shows the version of the fi rmware loaded for Focus and Class.
Initial status
Initial status
Initial status.
Initial status.
The letter next to it changes from N to Y only when a button is pressed.
The letter next to it changes from N to Y only when a button is pressed.
By pressing buttons 1, 3, 4, 6 the display color changes from GREEN to RED.
By pressing buttons 1, 3, 4, 6 the display color changes from GREEN to RED.
By pressing buttons 2, 5, the display color changes from GREEN to YELLOW.
By pressing buttons 2, 5, the display color changes from GREEN to YELLOW.
Button 4 must be pressed at the end only once as when pressed it moves to
Button 4 must be pressed at the end only once as when pressed it moves to
the next page.
the next page.
ERROR condition:
ERROR condition:
The letters do not change from N to Y or are always Y, in this case check the fl at communication
The letters do not change from N to Y or are always Y, in this case check the fl at communication
cable with the power board -Power JP21, if it does not change color check the cable JP4 between
cable with the power board -Power JP21, if it does not change color check the cable JP4 between
the board and the display.
the board and the display.
If you insert a full drip tray the TANK-H20 indicator must change from “N” to “Y”.
If you insert a full drip tray the TANK-H20 indicator must change from “N” to “Y”.
ERROR condition:
If the indication does not change, check the capacitive sensor and relative wiring
(JP23).
Press STAND_BY “
Press STAND_BY “
” to move to the next screen
” to move to the next screen
Press STAND_BY “
Press STAND_BY “
” to move to the next screen
” to move to the next screen
