Philips HD 8753 - Intelia Class;Focus 2-Way Solenoid Valve Removal

INTELIA 07 DISASSEMBLY
Saeco International Group Rev. 01 / September 2011 Page / 11

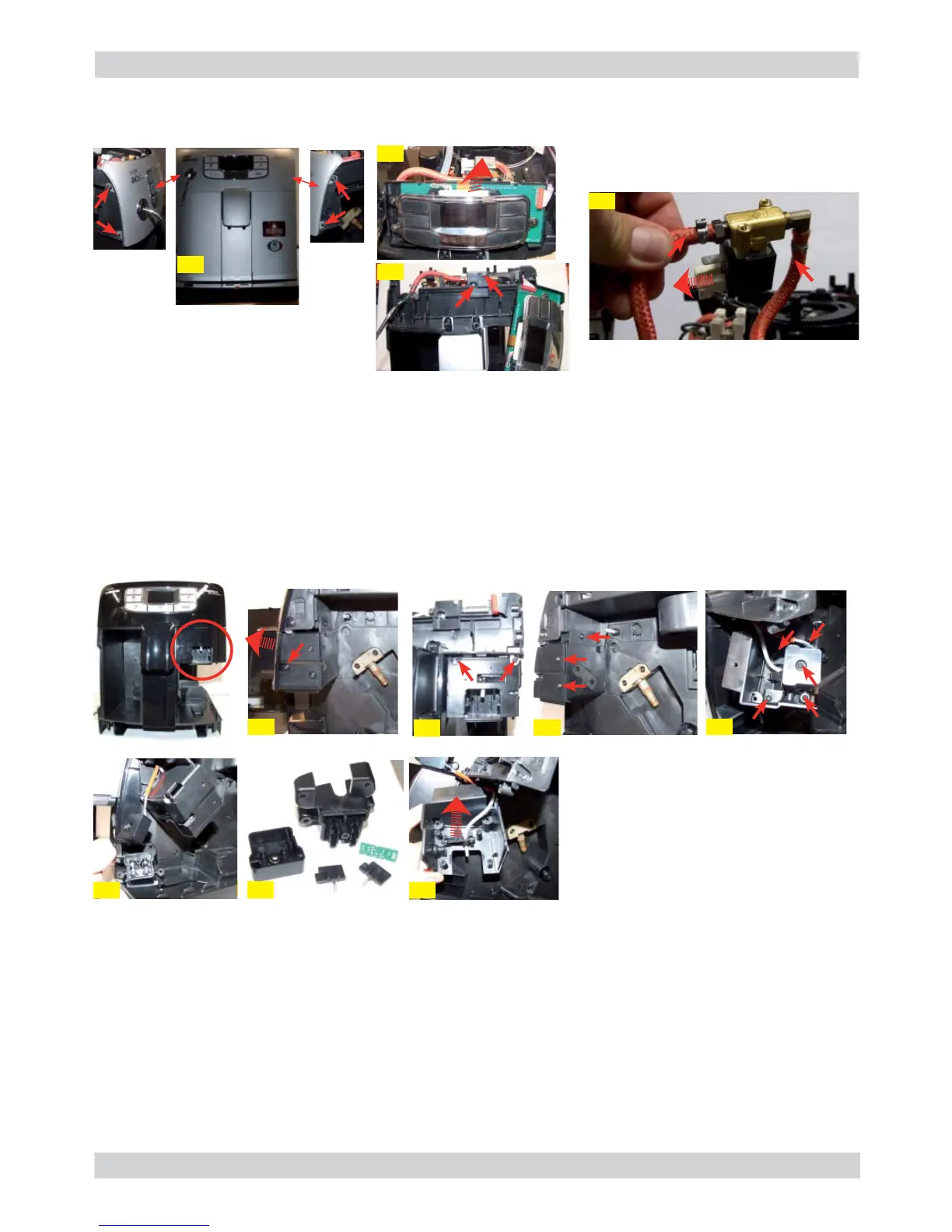

1) Loosen the screws holding the front plate to the upper plate.
2) Remove the card support assembly.
3) Loosen the screws holding the solenoid valve to the upper plate.
4) Disconnect all electrical and water circuit connections.
7.7. Intelia Class and Focus two-way solenoid valve
2
3
4
1
1) Loosen the screws holding the front cover of the carafe fi tting body and release it from its seat
2) Loosen the screws as illustrated
3) Remove carafe presence sensors
4) Remove carafe fi tting Tefl on pipe
7.8. Intelia Cappuccino carafe fi tting body
05
1
3
2
2
2
3
3
4
