INTELIA 07 DISASSEMBLY
Saeco International Group Rev. 01 / September 2011 Page / 11
7.13. Gear motor
Only for Intelia Cappuccino remove the plug body along with pitcher

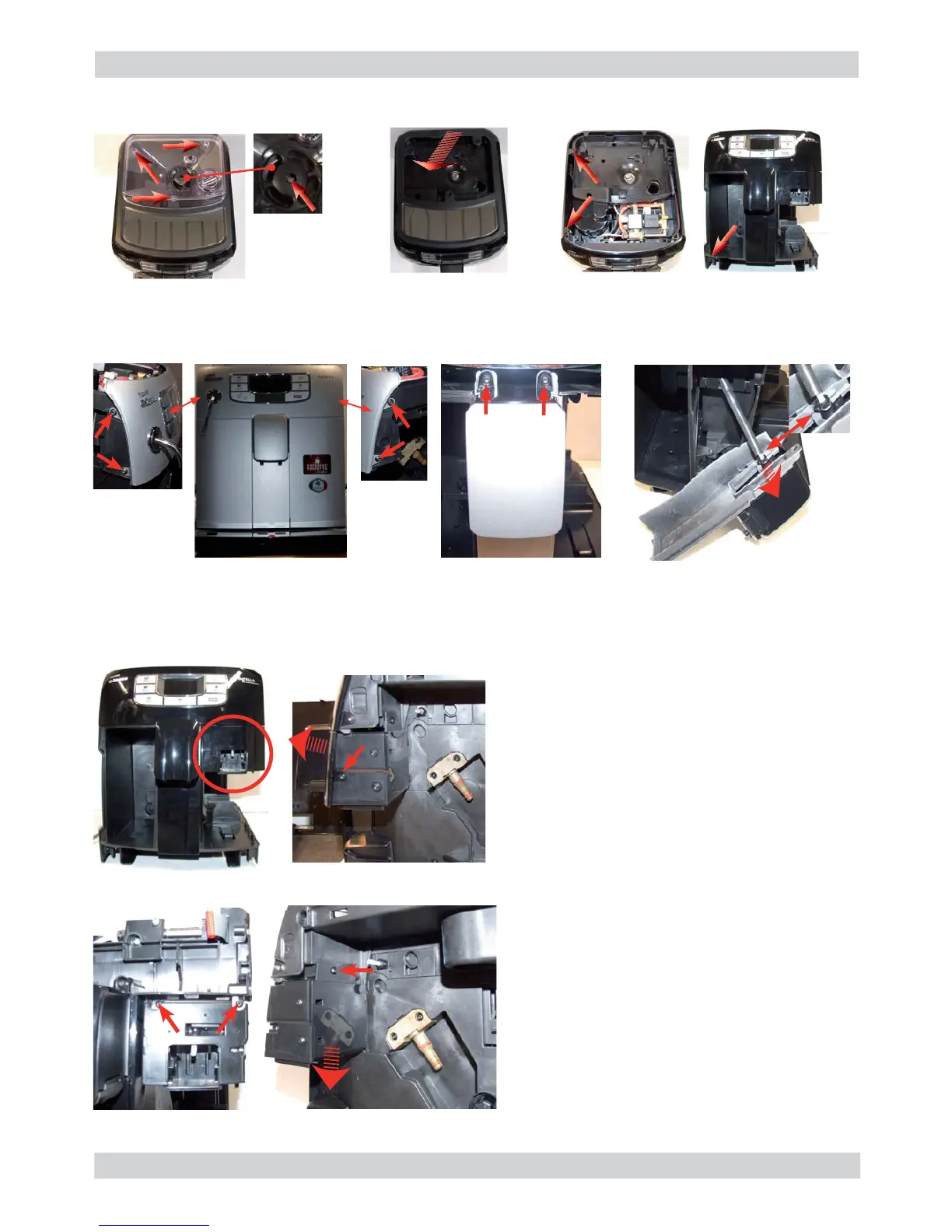

Unscrew the screws (highlighted) and
release the milk jug plug body assembly
Unscrew the screws in the front cover and lift
it off the milk jug plug body from the place
07
Unscrew the screws as illustrated and remove the front panel to
access the screws which fi x the dispenser cover into place.
Slide out the fork as illustrated.
Unscrew the screws shown and
remove the fi nger protection.
Lift the top cover.
Unscrew the screws shown
and slide out the left side
body.
