Philips HD 8753 - Pump Disassembly and Removal; Control Board Removal

INTELIA 07 DISASSEMBLY
Saeco International Group Rev. 01 / September 2011 Page / 11

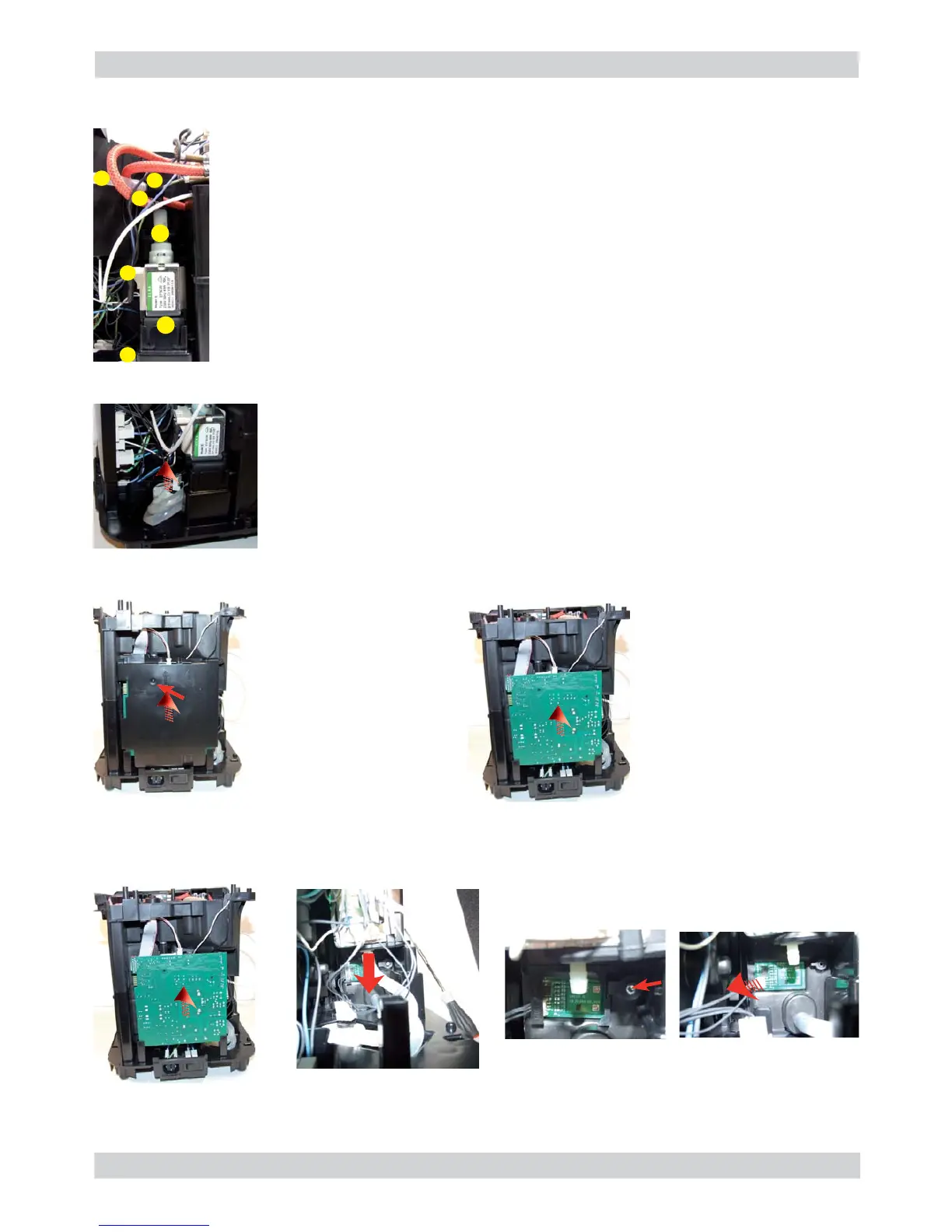

7.9. Pump
7.10. Flow-meter
Lift the fl ow meter out of the casing assembly and
remove the electrical and water circuit connections.
Loosen the screws as
illustrated, slide out the
electrical connection and
remove the card guard.
Slide the card off the
support and disconnect the
electrical connections.
Disconnect the water circuit connections (A) and
electrical connections (B), loosen the safety valve
(C) and slide the pump off the brackets (D).
06
7.11. Control board
A
B
D
D
C
A
A
7.12. Water sensor control board
Slide the card off the
support.
Slide out the pipe
connecting the fl ow
meter to the pump.
Loosen the screw as illustrated and
remove the capacitive sensor glued to
the seat.
