INTELIA 04 OPERATING LOGIC
Saeco International Group Rev. 01 / September 2011 Page / 08
Water fi lter
Function:
Reduced limescale deposits which take longer to •
form.
Improved water quality.•
Improved taste due to the ideal water hardness.•
Life span / descaling performance:
• - 10 ° dH
60 litres•
2 months•

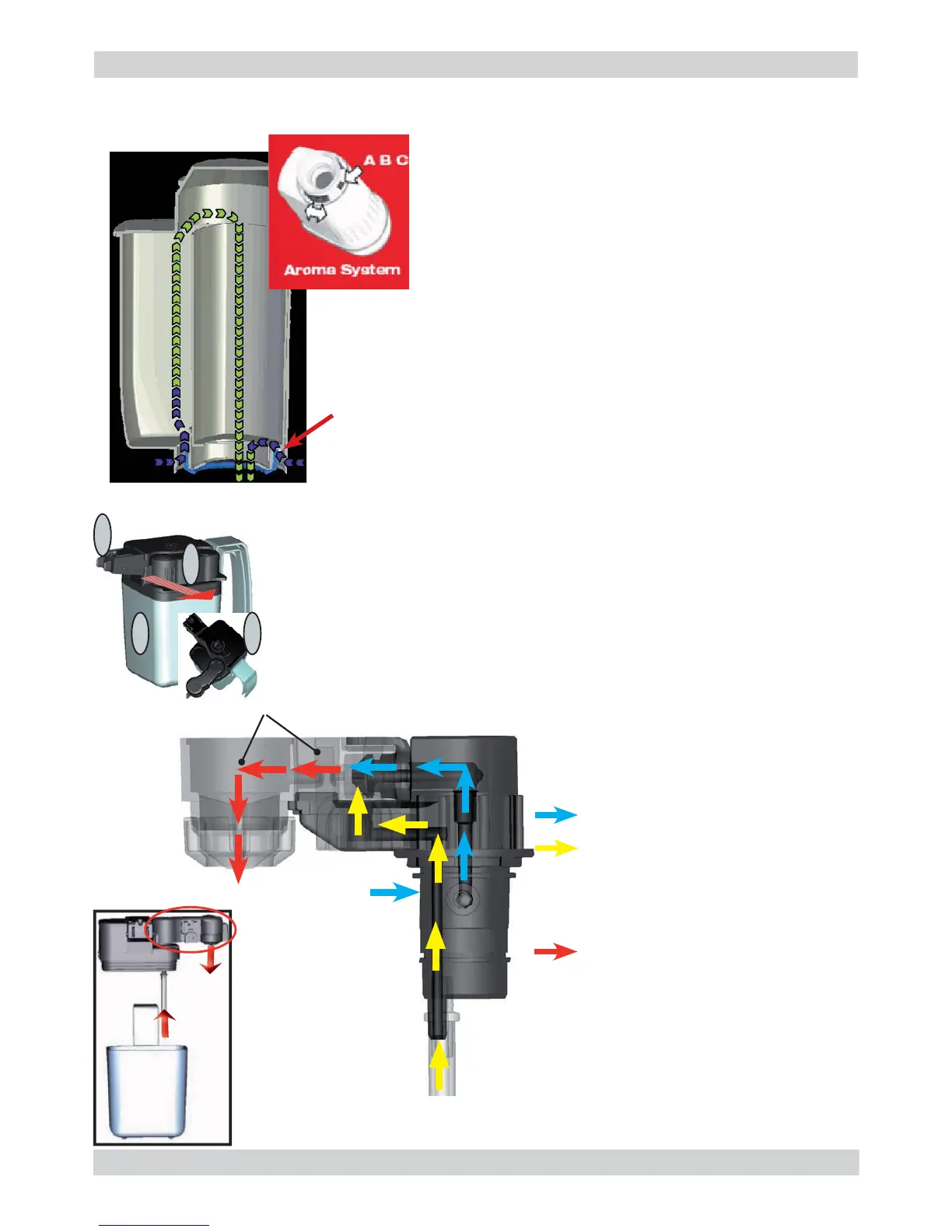

To achieve the best possible operating mode consistency
over the total life span, the water is channelled using
a 3-stage bypass (A, B, C) depending on the degree of
hardness. See small image.
Bypass
4.10. Water fi lter
08
1) Steam input
2) Cappuccino maker
3) Bring the cappuccino maker into dispensing position before
inserting the carafe in its seat
4) Milk tank
4.11. Intelia Cappuccino milk carafe
The steam passes through the pipe
creating a sucking effect that pulls
the milk upwards
The milk is heated by the steam
and taken towards the emulsion
chamber where it is mixed with air
and transformed into foam
Emulsifi ed milk
Emulsion chamber
Steam
Steam
Emulsifi ed
milk
Carafe
Milk
Milk
1
2
4 3
