INTELIA 07 DISASSEMBLY
Saeco International Group Rev. 01 / September 2011 Page / 11

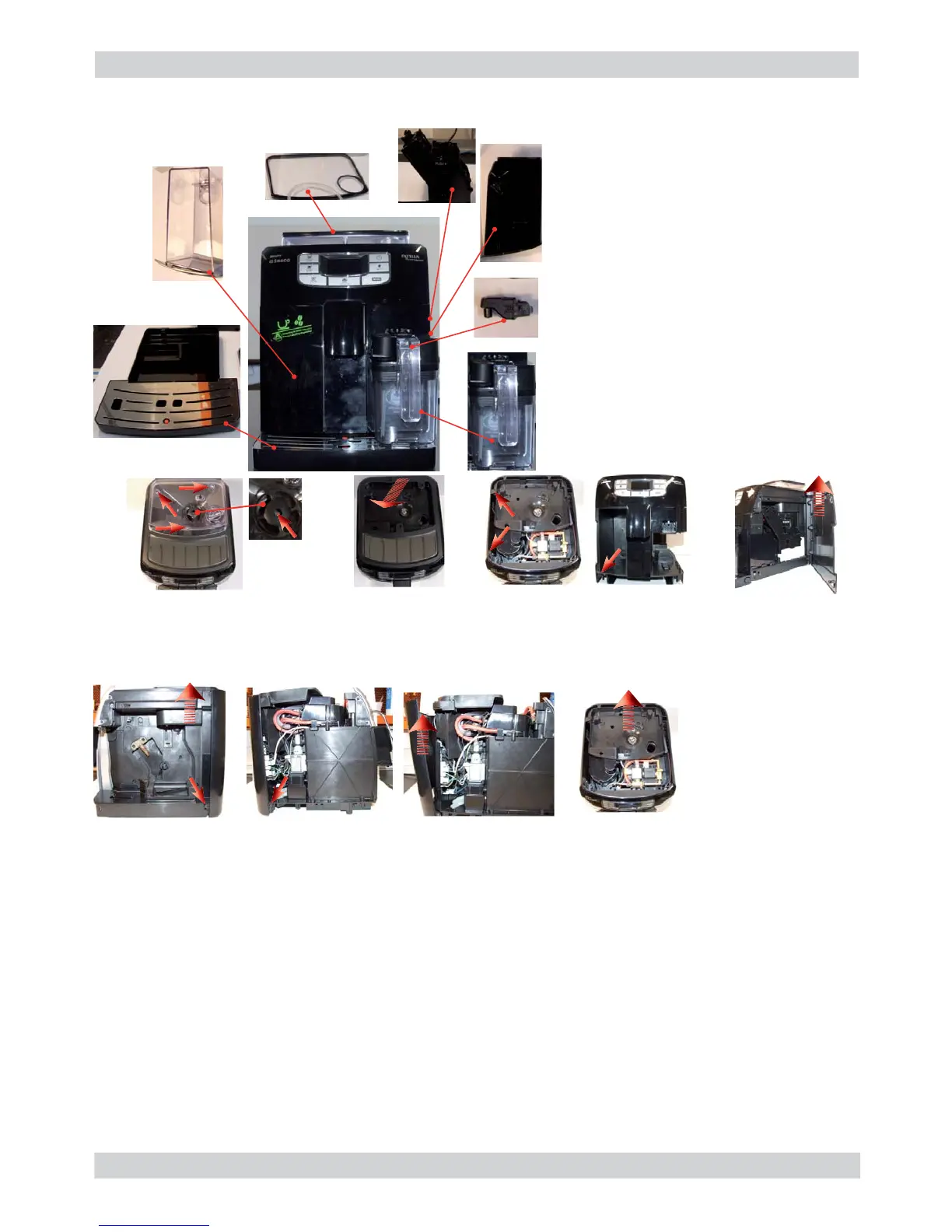

7.1. Intelia Cappuccino outer Shell
Remove the water tank, coffee con-
tainer cover, drip tray, dreg drawer,
brewing unit, carafe or hot water
dispenser.
Unscrew the screws shown
and remove the fi nger
protection.
Lift the top cover. Unscrew the screws shown
and slide out the left side
body.
Loosen the screws as illustrated, slide out the rear body and the sound insulating cover of the
coffee grinder.
01
Slide out the hatch.
