INTELIA 07 DISASSEMBLY
Saeco International Group Rev. 01 / September 2011 Page / 11
7.2. Intellia Class and Focus outer Shell

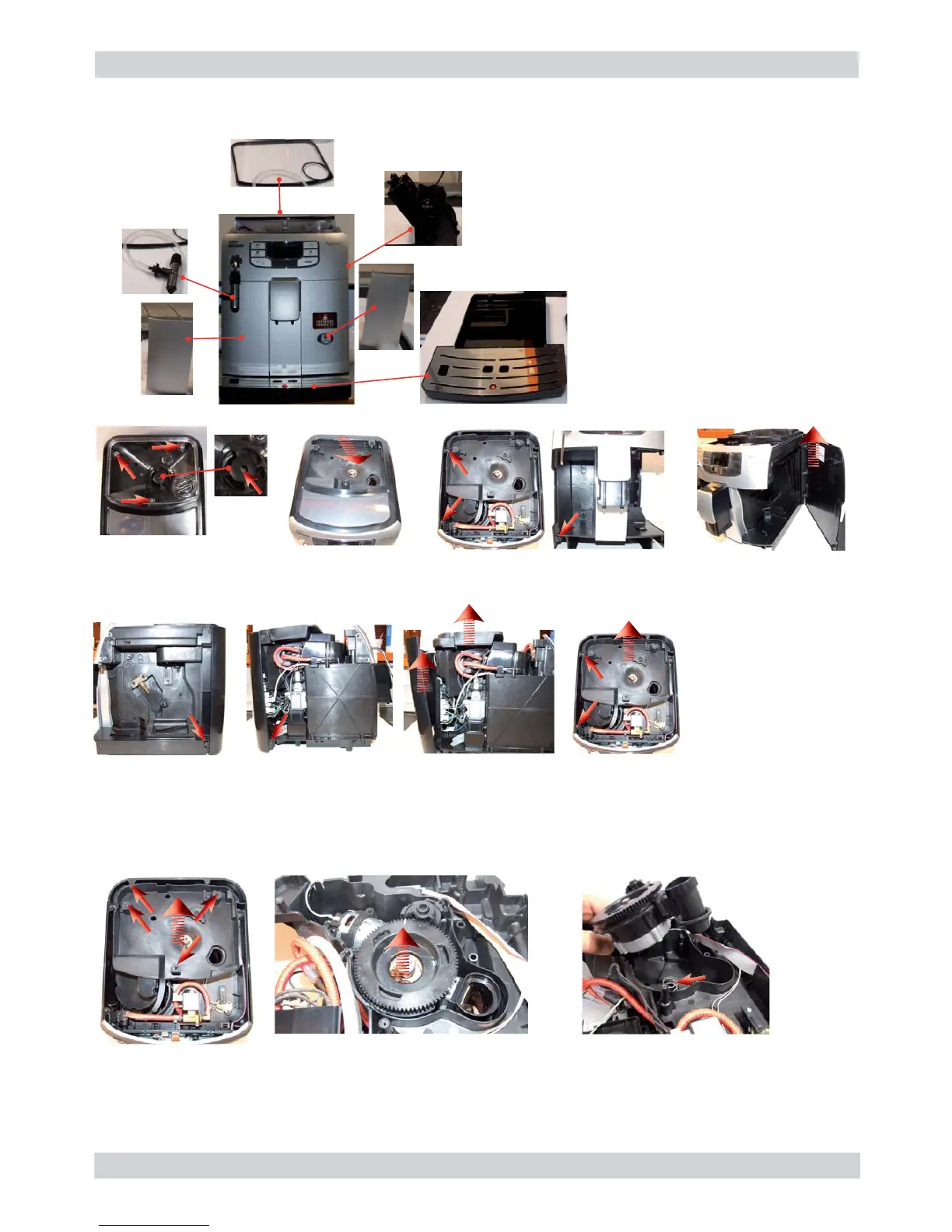

Remove the water tank, coffee con-
tainer cover, drip tray, dreg drawer,
brewing unit, cappuccino maker or
pannarello.
Unscrew the marked
screws and remove
the fi nger protection.
Raise the top
cover.
Loosen the screws as illustrated
and remove the left side body.
Loosen the screws as illustrated, slide out the rear body and the sound insulating cover of the
coffee grinder.
7.3. Coffee grinder
Loosen the screws as illustrated and remove the sound
insulating cover. Raise the coffee grinder and remove
the connections.
When reassembling the coffee grinder,
make sure the spring is repositioned
correctly (see photo).
Slide out the hatch.
