Philips HD 8753 - Water Circuit

INTELIA 04 OPERATING LOGIC
Saeco International Group Rev. 01 / September 2011 Page / 08

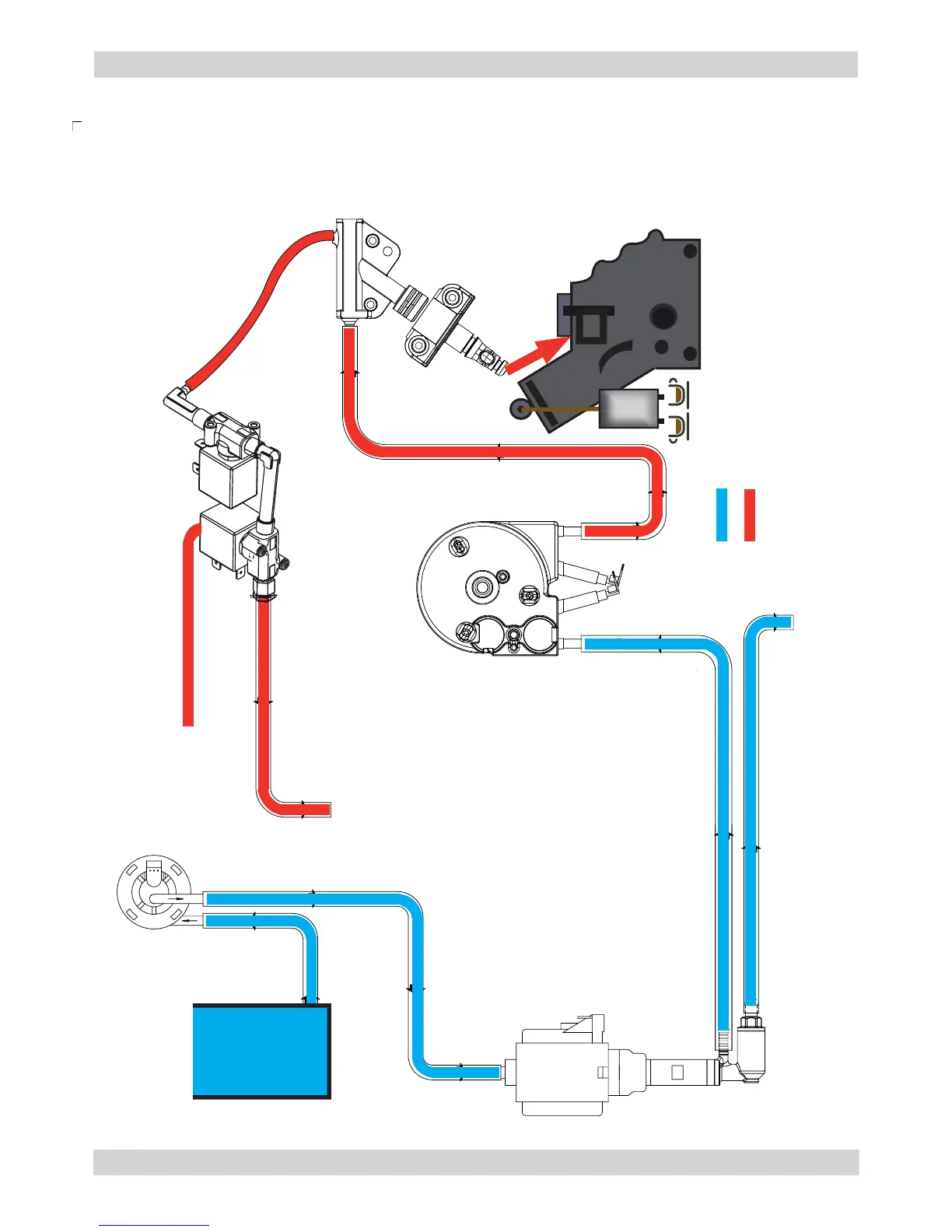

4.1. Water circuit
01
Milk carafe
Compensation valve water outlet
Flow-meter
1900 W boiler
Water Hot water /steam
Compensation valve water outlet
Pump
Water tank
Traditional water system• Flow meter – Amount of coffee dispensed •
into the cup
Reciprocating piston type pump •
(13 - 15 bar)
Compensation valve •
(opening pressure 16 - 18 bar)
Boiler – 1900 W• Two-way solenoid valve•
Three-way solenoid valve
Intelia Cappuccino
Brewing unit
Three-way solenoid valve
