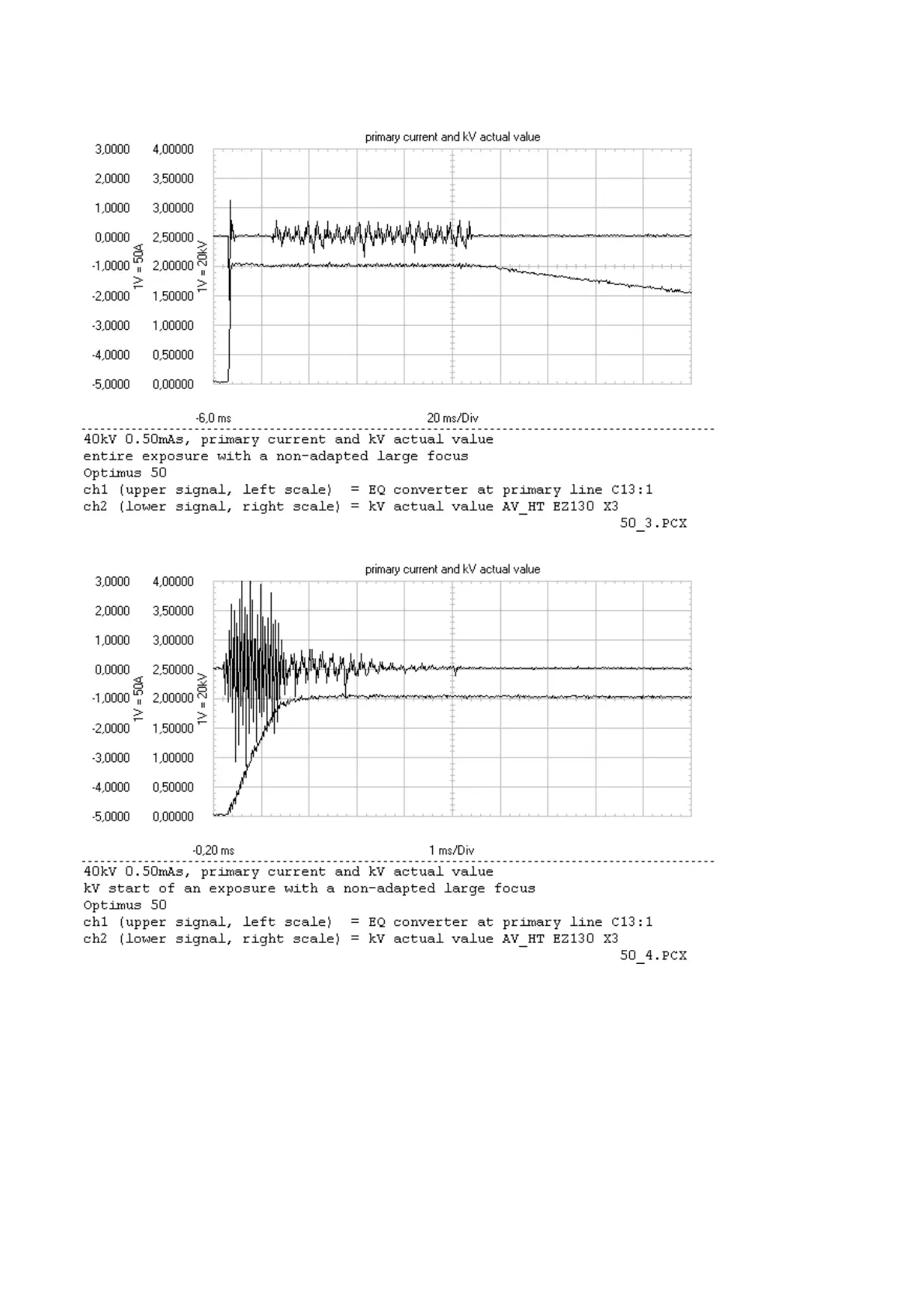

Optimus 50 tube not adapted:
(Fig. 15)
(Fig. 16)
The primary current values must be within the range of the lower chart of page 26 ±10%.
Converter test kit OPTIMUS for OPTIMUS 50/65/80 gen‐
erators release 3.x with converters 4512 104 7231x
Conv test Optimus CSIP Level 1 (08.0)
