TROUBLESHOOTING AND MAINTENANCE
A
02.9687.0001 C 31 October 2013 87
CAUTION: Wear protective gloves or other protective covering while handling gobos and filters to
avoid leaving fingerprints. Gobos are extremely fragile and can break if not handled carefully. If dirty,
clean with isopropyl alcohol and a soft, lint-free cloth.
Step 3. At rotating gobo wheel, slowly rotate wheel by hand until gobo to be removed is at top of
assembly as shown in Figure A-8.
Step 4. Grasp gobo carrier with fingers and gently pull gobo assembly straight up and out of rotating
gobo wheel. Note orientation of rotating gobo carrier assembly. New gobo assembly must go
in exactly the same.

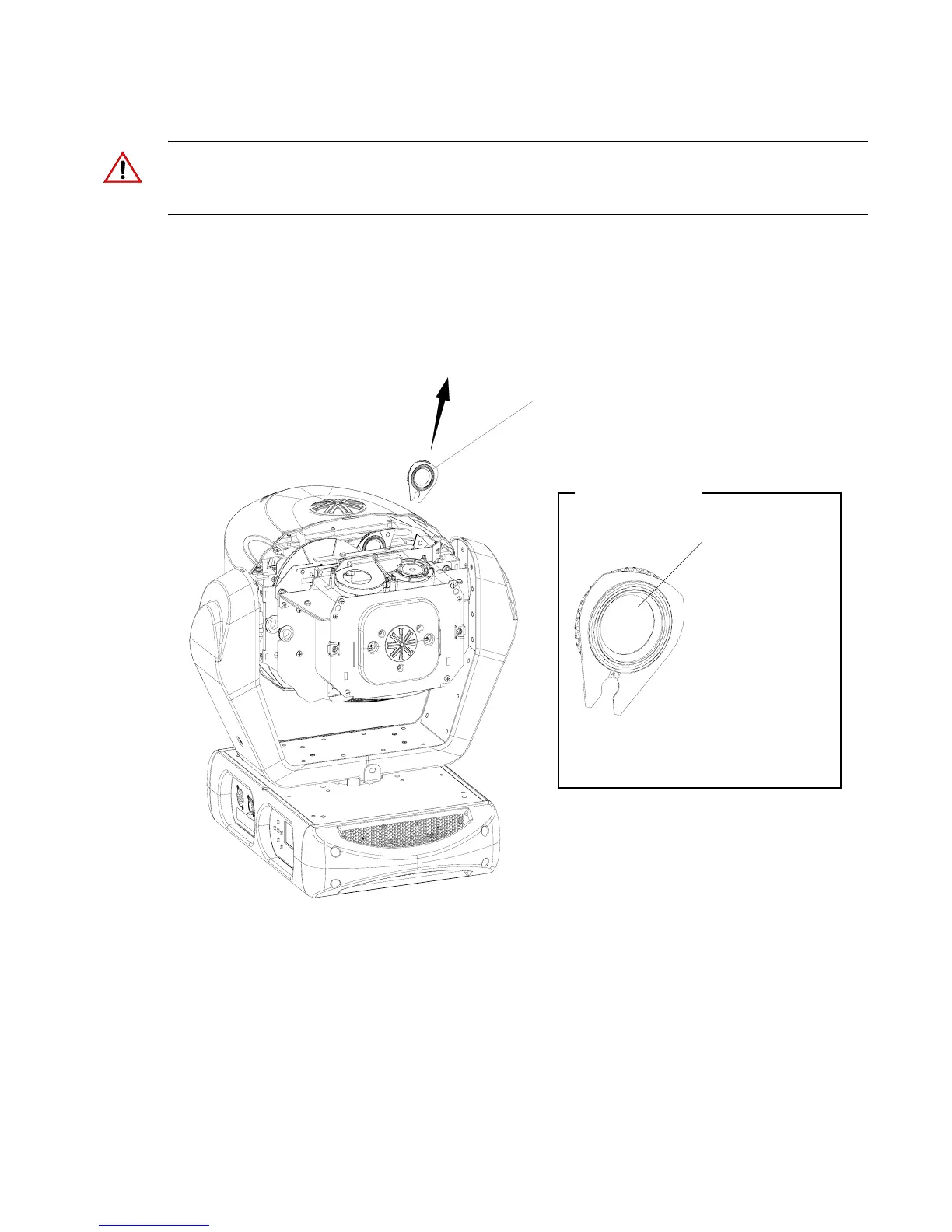

Figure A-8: Removing / Installing Rotating Gobos
Rotating Gobo
Rotating Gobo
Carrier Orientation
Rear of gobo assembly. This side
(reflective side) towards lamp. Note that
gear is on front of carrier.
Pull gobo straight up and
away from wheel assembly
Image on this side
