Step 5. At position where rotating gobo was removed, place replacement rotating gobo over open
slot (as shown in Figure A-9), slide into wheel, and gently snap gobo into place.

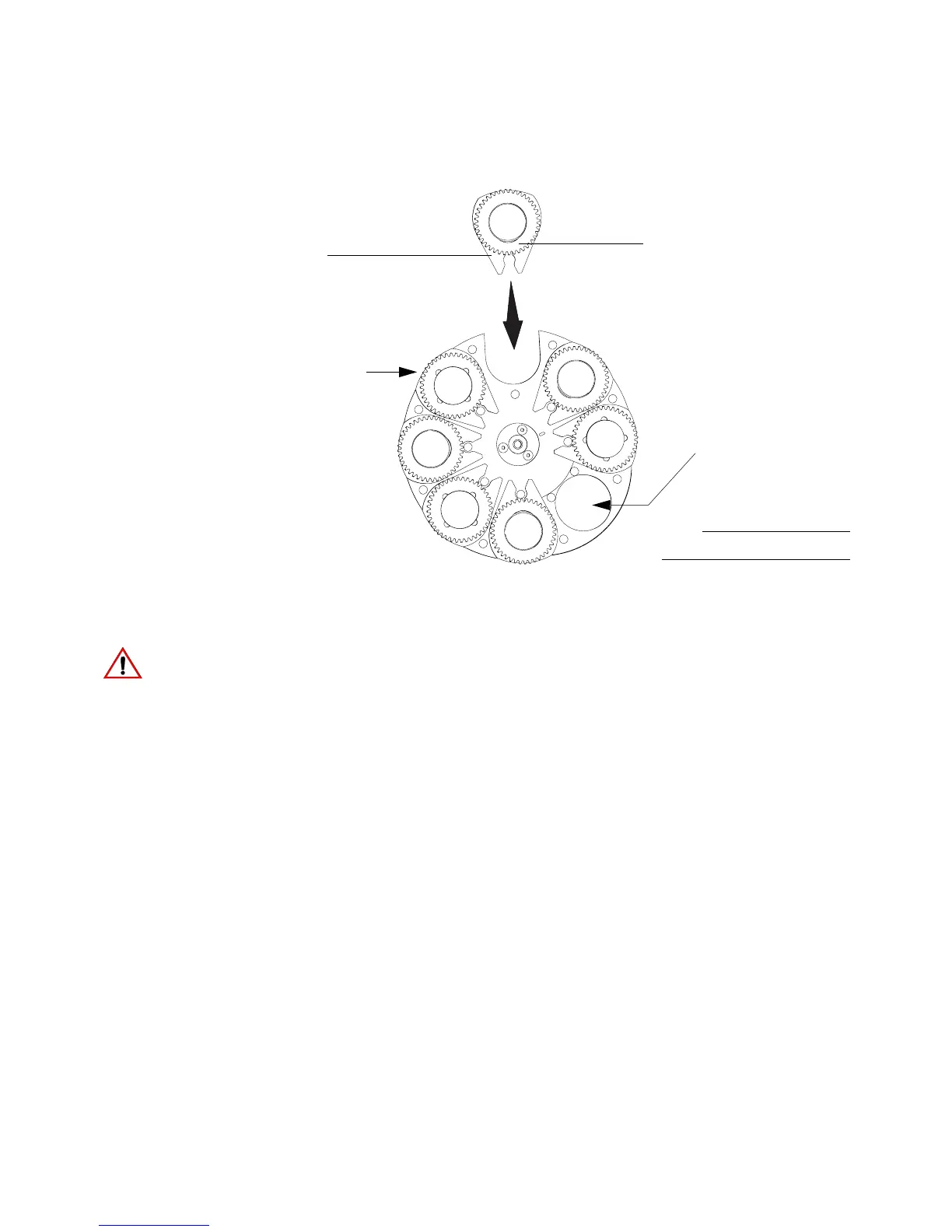

Figure A-9: Rotating Gobo Wheel - Gobo Installation.
Step 6. After rotating gobo is installed, reinstall rear head cover.
Important Rotating Gobo Wheel Notes
When replacing the standard gobo load with replacement or custom gobos, please observe the
following:
• On the Rotating Gobo wheel, POSITION 4 (standard gobo is Tri Cone), must have a locating
magnet for proper calibration and indexing. Refer to Figure 3-2 on page 32 for additional
information.
• All other positions (1, 2, 3, 5, 6, and 7) will use a gobo or gag without a locating magnet.
• Locating magnets are only applicable to gobo assemblies in the rotating gobo wheel. The fixed
gobo wheel does not have a gobo assembly with a magnet.
Gear Side
(towards front of luminaire)
Open Position
(no gobo)
Note:
Assembly shown for clarity.
Rotating Gobo
Assembly
Front of Assembly Shown
(side towards front lens)
2
1
3
4
5
6
7
0
Position 4 Must have gobo
assembly with locating magnet.
