VARI❋LITE - VL440 / VL770 / VL880 LUMINAIRE USER’S MANUAL
90 31 October 2013 02.9687.0001 C
CAUTION: Wear protective gloves or other protective covering while handling gobos to avoid
leaving fingerprints. Gobos are extremely fragile and can break if not handled carefully. If dirty, clean
with isopropyl alcohol and a soft, lint-free cloth.
Step 3. At fixed gobo wheel, slowly rotate wheel by hand until gobo to be removed is at top of
assembly as shown in Figure A-11.
Step 4. Grasp gobo carrier with fingers and gently pull gobo assembly straight up and out of fixed
gobo wheel. Note orientation of fixed gobo. New gobo must go in exactly the same.

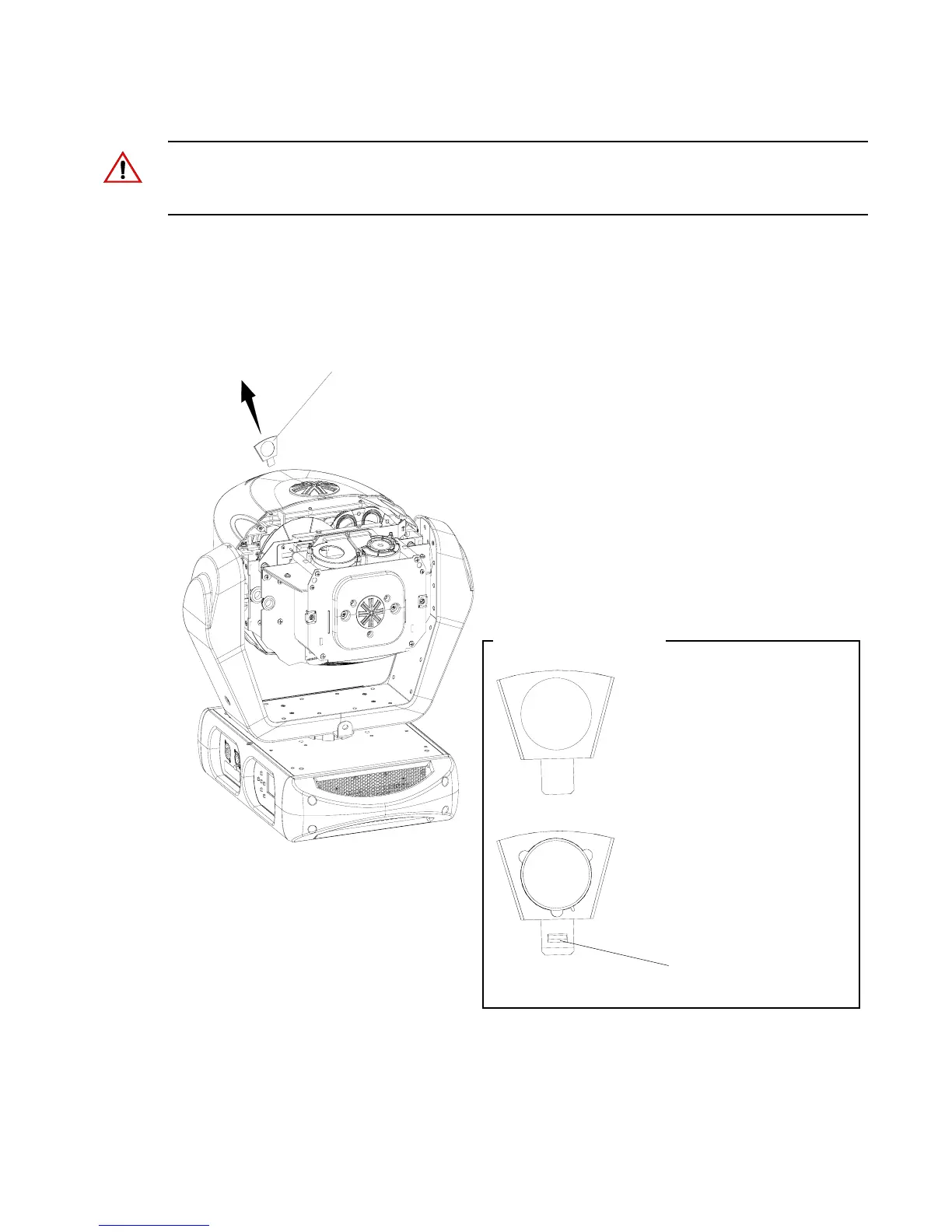

Figure A-11: Removing / Installing Fixed Gobos
Fixed Gobo Carrier Assembly
Fixed Gobo Orientation
Rear of filter. This side (reflective
side - image on this side) towards
lamp.
Front of gobo. This side (non-
reflective side) towards front of
luminaire. Note dimple in tab.
Mounting Tab (dimple on
front side)
Pull gobo straight up and
away from wheel
assembly
To Next Page
