TROUBLESHOOTING AND MAINTENANCE
A
02.9687.0001 C 31 October 2013 91
Step 5. At position where fixed gobo was removed, place replacement fixed gobo over open slot (as
shown in Figure A-12), slide into wheel, and gently snap gobo into place.

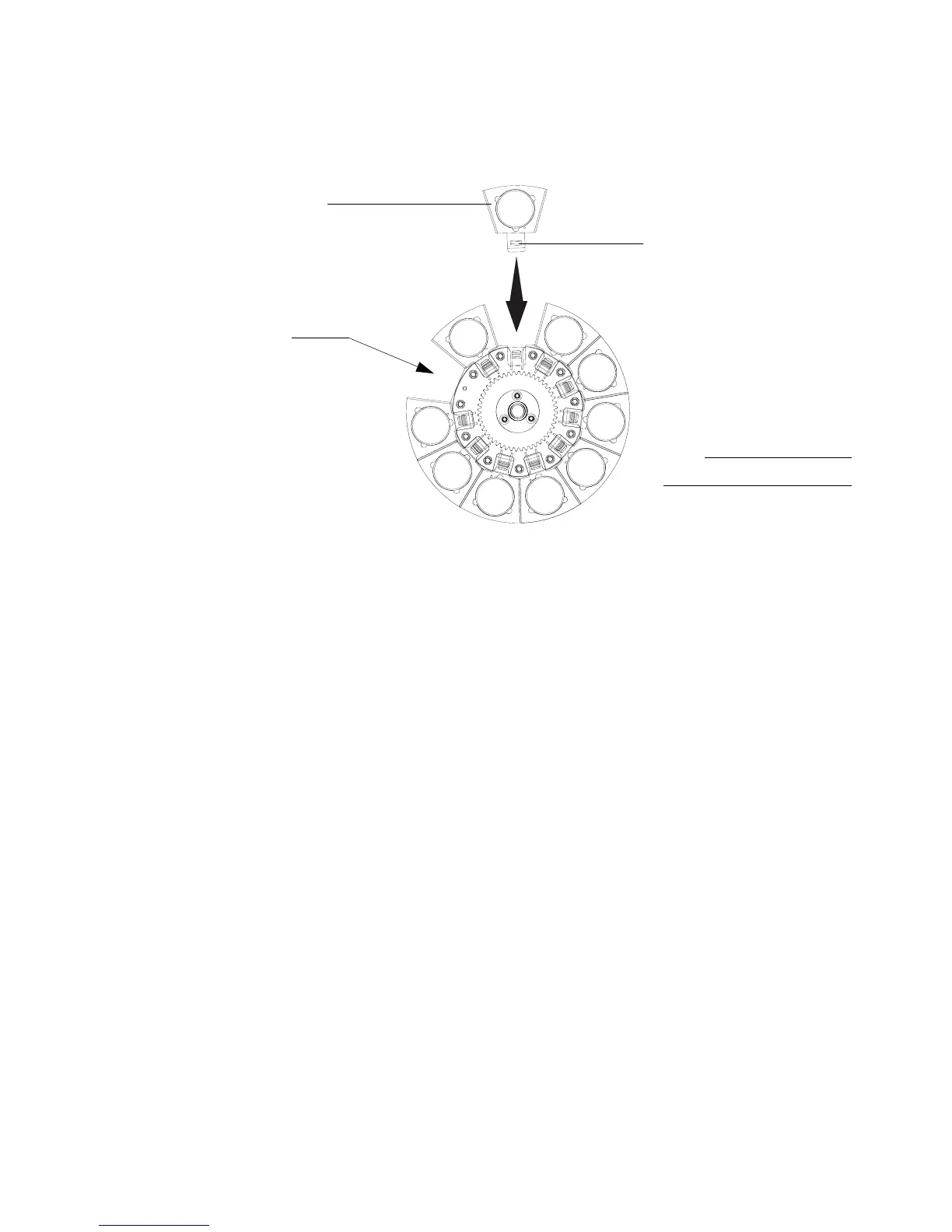

Figure A-12: Fixed Gobo Wheel - Gobo Installation.
Step 6. After gobo is installed, reinstall rear head cover.
Mounting Tab
(dimple on front side)
Open Position
(no gobo)
Note:
Assembly shown for clarity.
Fixed Gobo
Front of Assembly Shown
(side towards front lens)
To Next Page
