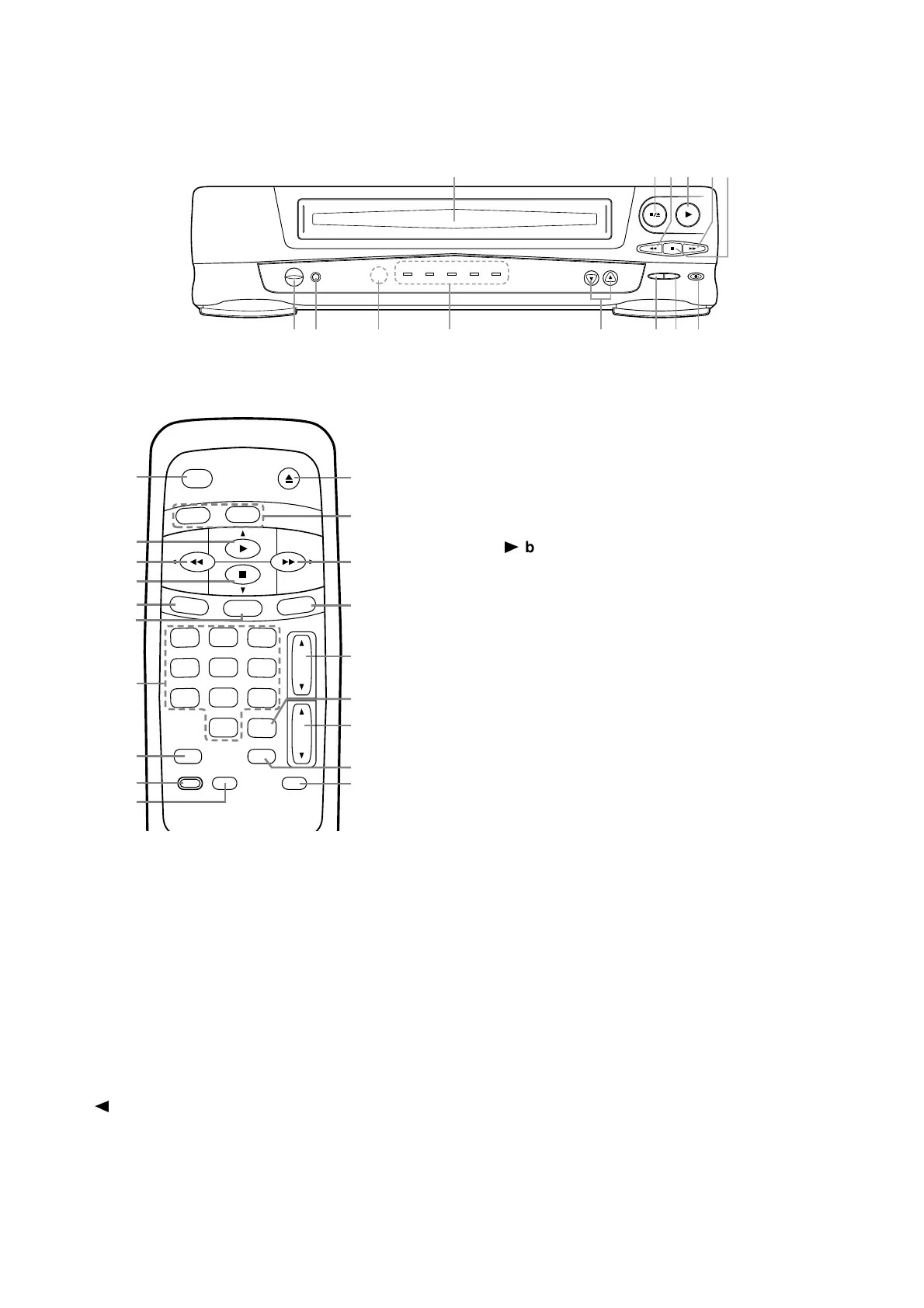

OPERATING CONTROLS AND FUNCTIONS
1.Cassette Compartment
2.STOP button– Press to stop the tape motion.
EJECT button–Press to remove a tape from the
VCR.
▼ button–Press to select setting modes from on
screen menu.
Search [-] function–Press to search down TV
channel in the Fine Tuning mode.
3.REW button–Press to rewind the tape, or to view
the picture rapidly in reverse during the playback
mode. (Rewind Search)
s
button–Press to return to a previous on screen
menu.
4.PLAY button–Press to begin playback.
▲ button–Press to select setting modes from on
screen menu.
Search [+] function–Press to search up TV chan-
nel in the Fine Tuning mode.
5.FF button–Press to rapidly advance the tape, or
view the picture rapidly in forward during playback.
(Forward Search)
B
button–Press to determine setting modes from
on screen menu.
6.STILL/PAUSE button–Press to temporarily stop
the tape during recording or to view a still picture
during playback.
7.STANDBY button–Press to turn VCR on and off.
Press to activate a timer recording. If you have a
PHILIPS TV, press to turn your PHILIPS TV power
on and off.
8.SPEED button–Press to set desired recording
speed.
System Change Function (VR109/55 only)–Press
to change the VCR system for matching recorded
system (PAL or MESECAM) during playback. (only
on the VCR)
9.Remote sensor window–Receives the infrared
signals from the remote control.
10.Indicator
STANDBY indicator–Indicates that the VCR is
plugged in.
ON indicator–Indicates that the power is turned on.
CST. IN indicator–Indicates that there is a tape in
the VCR.
TIMER indicator–Indicates that a timer recording or
OTR has been set.
REC indicator–Indicates that a recording is occur-
ring. It flashes when a recording has been paused.
STILL/PAUSE
TV
213
546
879
0
7
4
3
15
12
2
8
14
16
21
2
11
20
19
18
6
17
VCR
5
CH
VOL
STATUS/EXIT
CLEAR
MENU
PLAY
STOP
MUTE
MEMORYREC/OTR
SPEED
ALT.CH
FFREW
EJECTSTANDBY
13
REMOTE CONTROL VIEW
STOP/EJECT PLAY
MENU STATUS
REC/OTR
EXIT
CHANNEL
SPEED STANDBY ON CST.IN TIMER REC
STANDBY
FF
PAUSE
REW
1
910 11
3 5 62 4
87 1213 14
FRONT VIEW
1-6-1 H67T0IB
