Function Indicator Symbols
Note:
The following symbols will appear on the indicator panel to indicate the current mode or operation of the VCR.
On-Screen modes will also be momentarily displayed on the TV screen when you press the operation buttons.

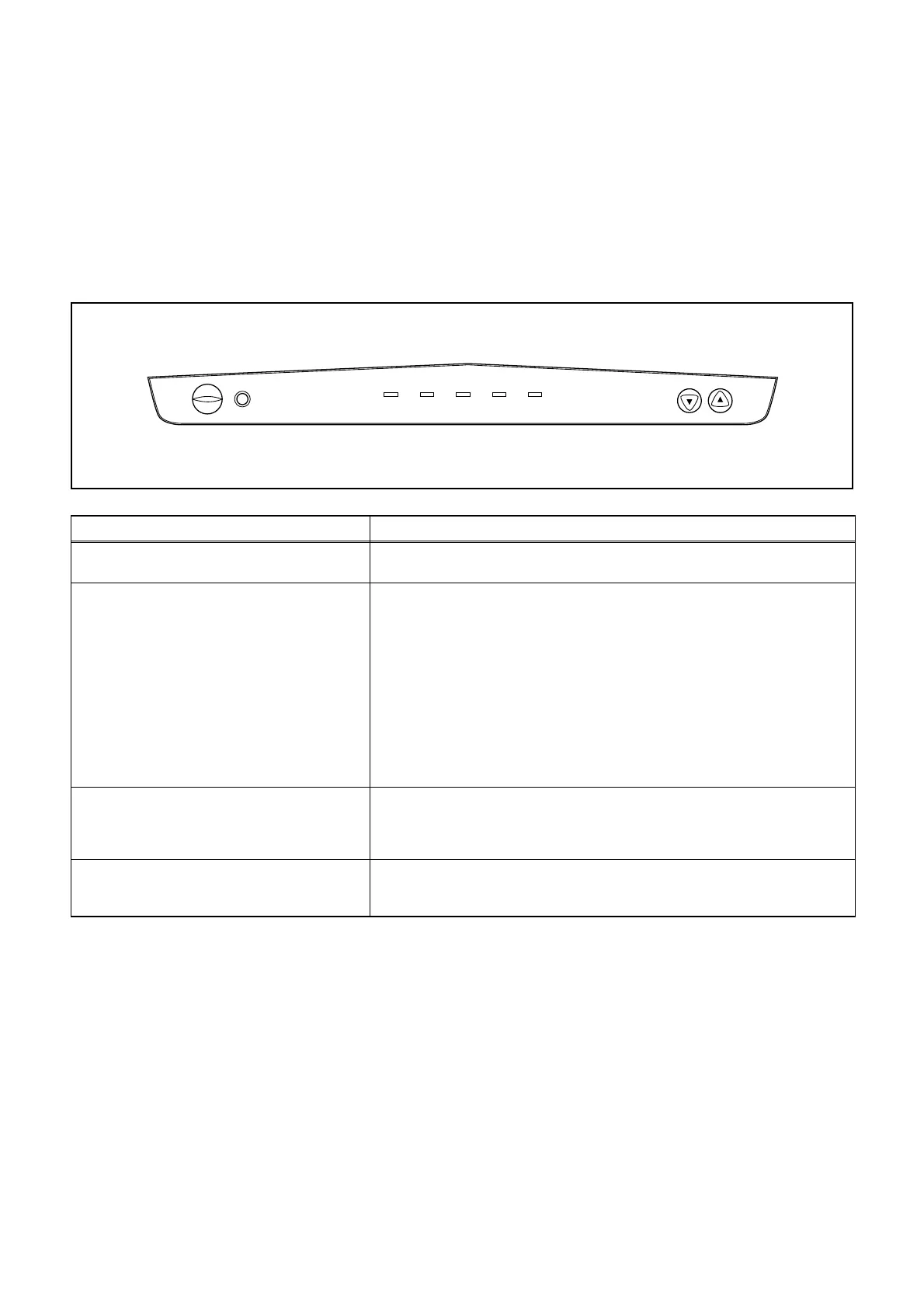

Display panel
" H "= LED Light on, " L "= LED Light off
LED MODE INDICATOR ACTIVE
STANDBY Standby on = " H "
Standby off = " L "
CST. IN Tape in = " H "
Tape out = " L "
1. When Reel and Capstan Mechanism
is Not Functioning Correctly
Tape in Blinks at 0.8Hz interval
2. When Tape Loading Mechanism is Not
Functioning Correctly
Tape in Blinks at 1.6Hz interval
3. When Cassette Loading Mechanism is
Not Functioning Correctly
Tape in Blinks at 3.2Hz interval
4. When the Drum is Not working
properly
Tape in Blinks at 6.4Hz interval
TIMER Timer stand by = " H "
One touch recording = " H "
Timer recording = " H "
General mode = " L "
REC REC mode = " H "
REC pause
General mode = " L "
Blinks at 0.8Hz interval
CHANNEL
SPEED STANDBY ON CST.IN TIMER REC
STANDBY
1-4-1 H67T0FIS
