Philips VR109/55 - Service Fixture and Tools

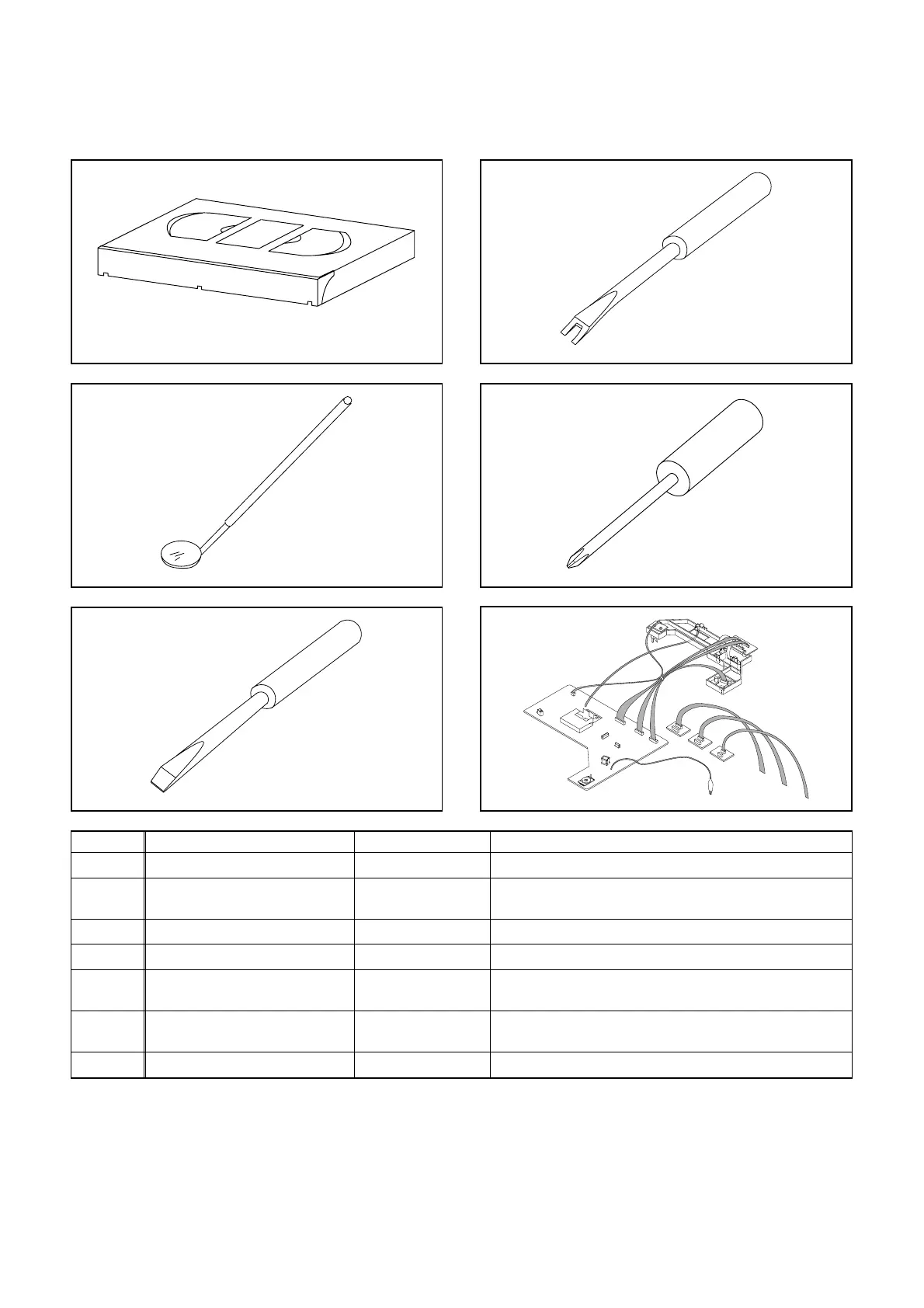

SERVICE FIXTURE AND TOOLS
Ref. No. Name Part No. Adjustment
J-1-1 Alignment Tape 4822 395 10283 Head Adjustment of Audio Control Head
J-1-2 Alignment Tape 4822 395 10057 Azimuth and X Value Adjustment of Audio Control
Head / Adjustment of Envelope Waveform
J-2 Guide Roller Adj.Screwdriver 4822 395 10208 Guide Roller
J-3 Mirror 4822 380 10108 Tape Transportation Check
J-4 Azimuth Adj.Screwdriver + Available
Locally
A/C Head Height
J-5 X Value Adj.Screwdriver - Available
Locally
X Value
J-6 U21 Deck Extension Cable 4822 320 12718 All Mechanical and Electrical Adjustments
Note:
Before starting any adjustment, take the Deck Assembly out of the cabinet and use J-6 to connect the Deck Assembly
with the Main CBA.
J-1-1, J-1-2 J-2
J-4
J-3
J-5
J-6
2-2-1 H67T0FIX
