Philips VR109/55 - Page 33

1-11-241-11-23
BV6770F01011-B

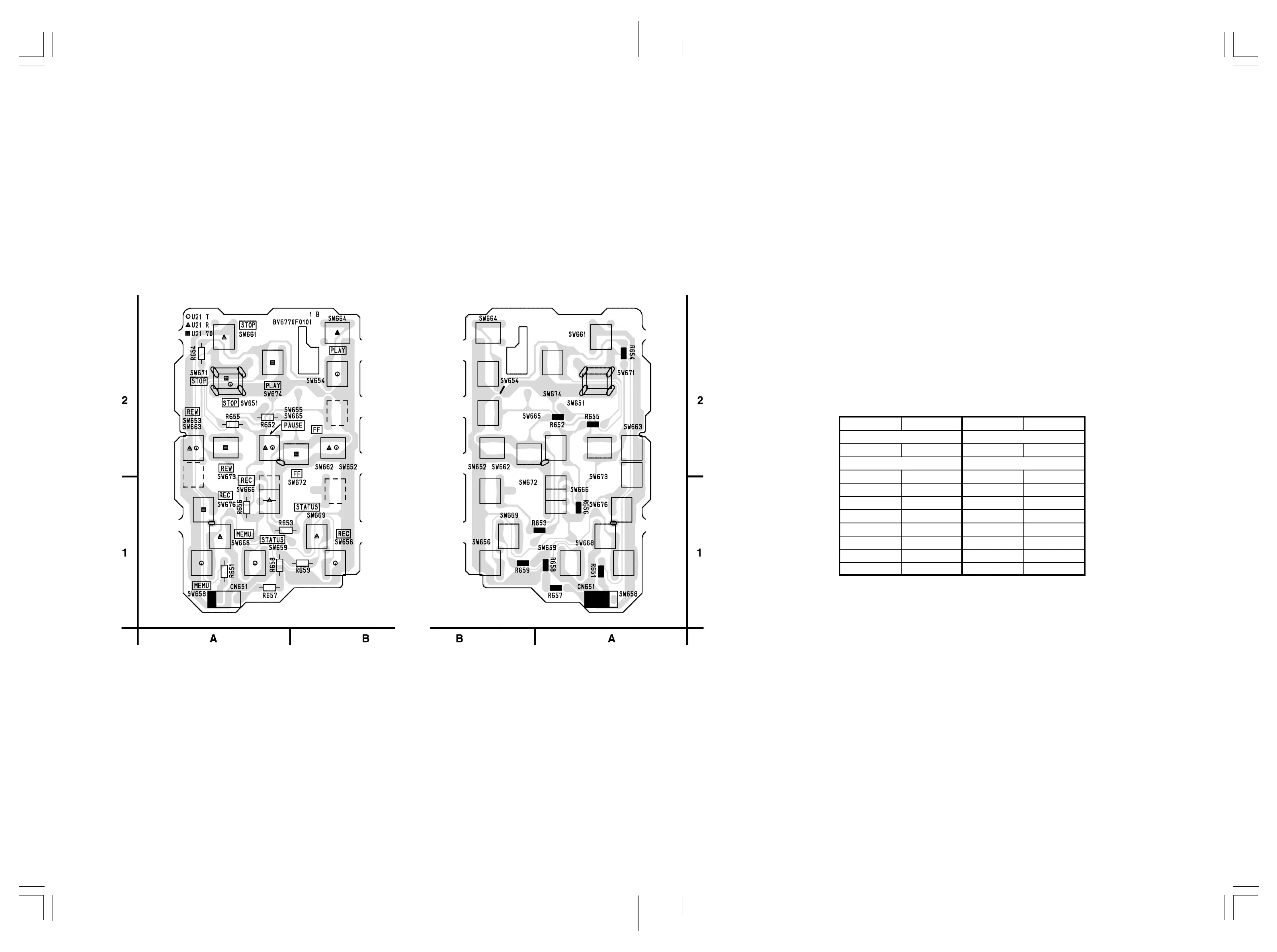

Function CBA Top View
Function CBA Bottom View
FUNCTION CBA Parts Location Guide
Ref No. Position Ref No. Position
CN651 A-1 R659
B-1
R651 A-1 SW651 A-2
R652 A-2 SW652 B-2
R653 A-1 SW653 A-2
R654 A-2 SW654 B-2
R655 A-2 SW655 A-2
R656 A-1 SW656 B-1
R657 A-1 SW658 A-1
R658 A-1 SW659 A-1
CONNECTORS
SWITCHESRESISTORS
RESISTORS
