To reset the controller to default setting type 1, proceed as follows:
• Switch off the supply voltage of the controller.
• After the LEDs have gone out, press the reset button.
• Hold the reset button down and switch the supply voltage on.
The RUN and FAIL LEDs light up.
• Release the reset button.
The controller is reset to default setting type 1.

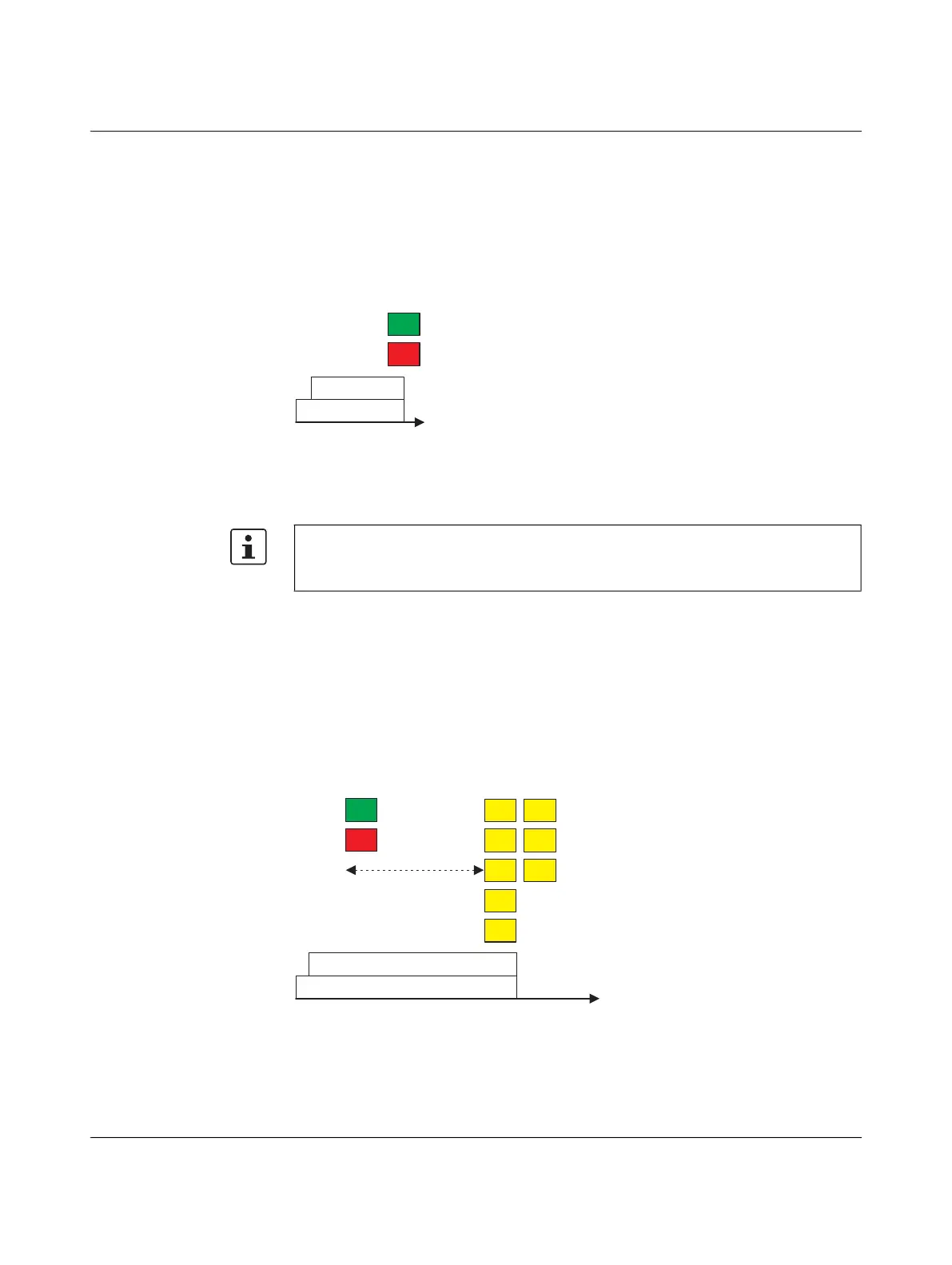

Figure 3-13 Sequence when resetting to default setting type 1, and LED indicators
Default setting type 2 Resetting to default setting type 2 resets the controller to the delivery state. This deletes all
settings that you have configured.
To reset the controller to default setting type 2, proceed as follows:
• Switch off the supply voltage of the controller.
• After the LEDs have gone out, press the reset button.
• Hold the reset button down and switch the supply voltage on.
The RUN and FAIL LEDs light up.
• Press and hold the Reset button down (approx. 30 s) until all LEDs (except the E and D
LEDs) light up.
• Release the reset button.
The controller is reset to default setting type 2.
Figure 3-14 Sequence when resetting to default setting type 2, and LED indicators
FAIL
t
Reset
Power on
RUN
Please note:
The operating system and all firmware components of the controller are reset to the
delivery state.
FAIL
t
Reset
Power on
RUN
EXT
BOOT
SF
BF-D
DBG
FAIL
BF-C RUN
30 s
