5.1.2 Connecting the power supply
Observe the notes in Section 3.16 when assembling the connector for the supply voltage.
• Strip 8 mm off the cable. If necessary, fit a ferrule to the cable.
Rigid conductor/ferrule • Insert the conductor into the terminal point. It is clamped into place automatically.

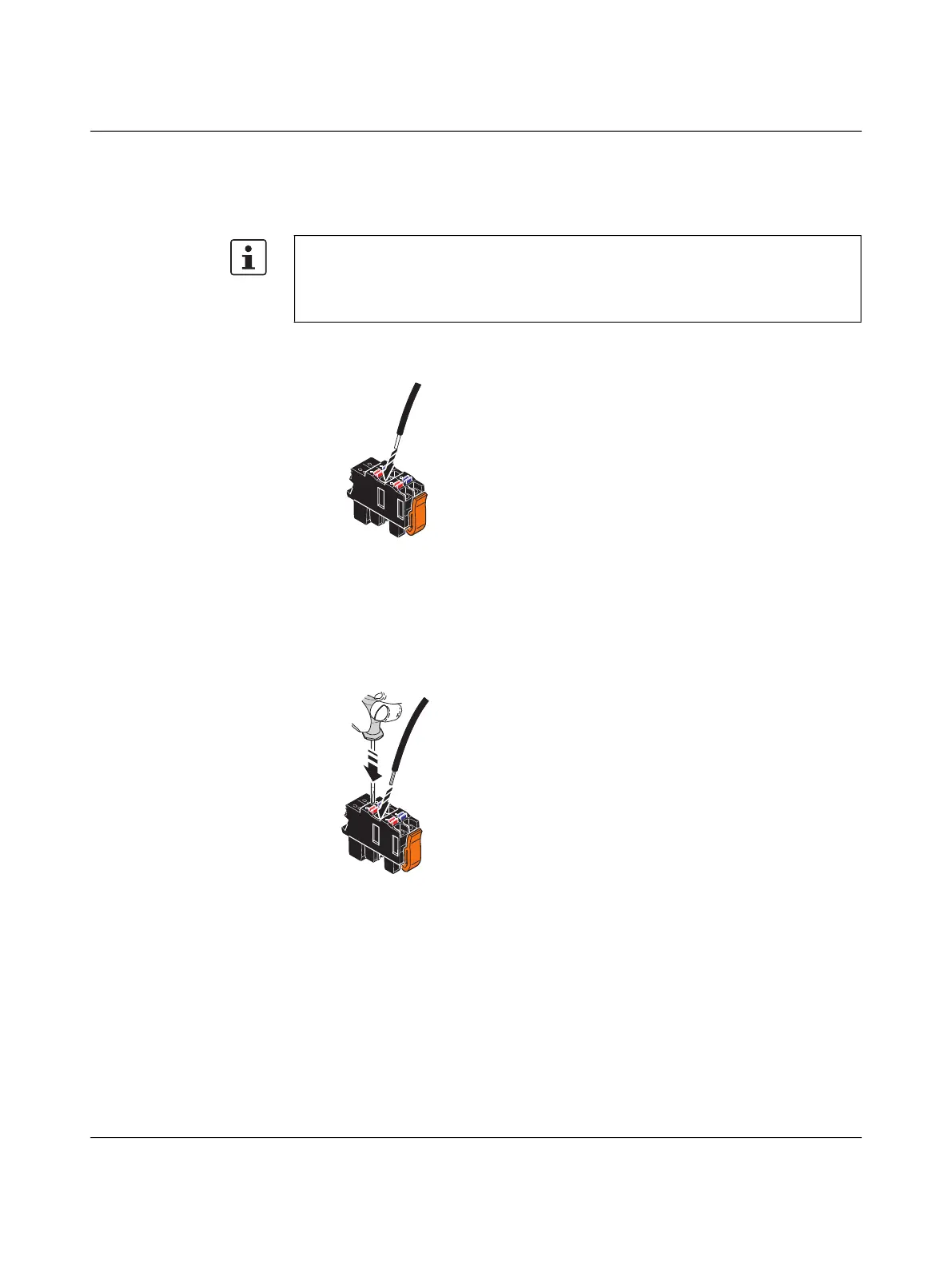

Figure 5-3 Connecting a rigid conductor
Flexible conductor • Open the spring by pressing on the spring lever with a screwdriver (A in Figure 5-4).
• Insert the conductor into the terminal point (B in Figure 5-4).
• Remove the screwdriver to secure the conductor (recommended: bladed screwdriver,
blade width 2.5 mm (e.g., SZS 0,4 x 2,5 VDE, Order No. 1205037)
Figure 5-4 Connecting a flexible conductor
When using ferrules:
• Use ferrules in accordance with the specifications in the UM EN AXL F SYS INST
user manual.
• Make sure that the ferrules are crimped correctly.
A
B
