3.15 Ethernet interfaces
AXC F 1152 and
AXC F 2152
2 x Ethernet: X1/X2: 10/100 BASE-T(X) (switched internally)

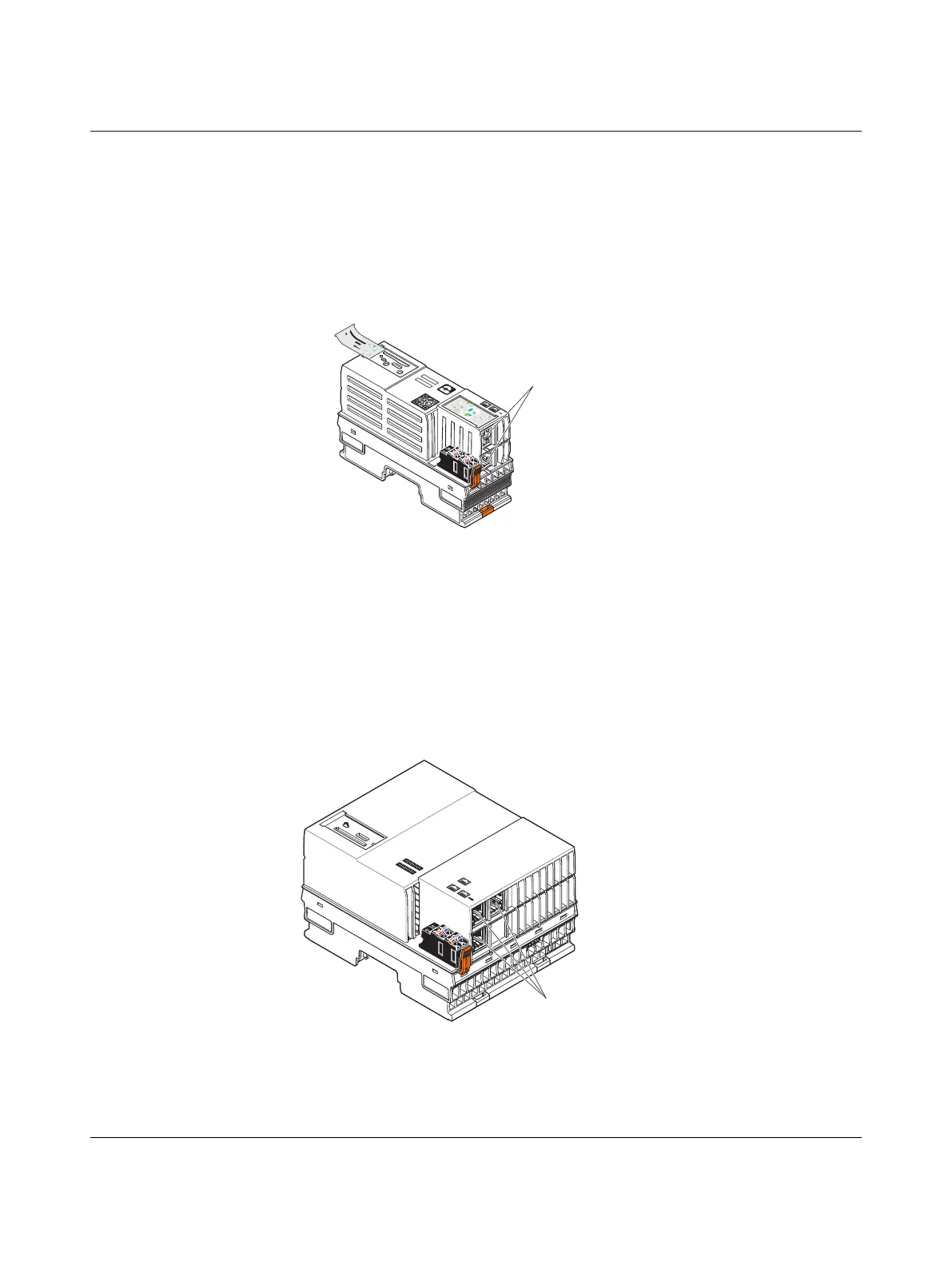

Figure 3-17 Ethernet interfaces (1)
AXC F 3152 3 x Ethernet: X1/X2/X3: 10/100/1000 BASE-T(X)
Figure 3-18 Ethernet interfaces (1)
Name Interface Default IP address
X1/X2 Ethernet interface (PROFINET) 192.168.1.10
Ethernet interface extension module AXC F XT ETH 1TX 192.168.2.10
R
SD-CAR
D
X
4
O
r
d
.No
.2
4
0
4
267
AXC F 2152
M
AC
A
d
d
r.:
X
X
.XX
.
X
X.X
X
.XX
.
X
X
X2
X1
1
Name Interface Default IP address
X1 Ethernet interface 192.168.1.10
X2 PROFINET controller interface 192.168.2.10
X3 PROFINET device interface 192.168.3.10
Ethernet interface extension module AXC F XT ETH 1TX 192.168.4.10
