• Gently push the SD card into the SD card holder until it engages with a click in the SD
card holder (see Figure 4-9, “Click”).

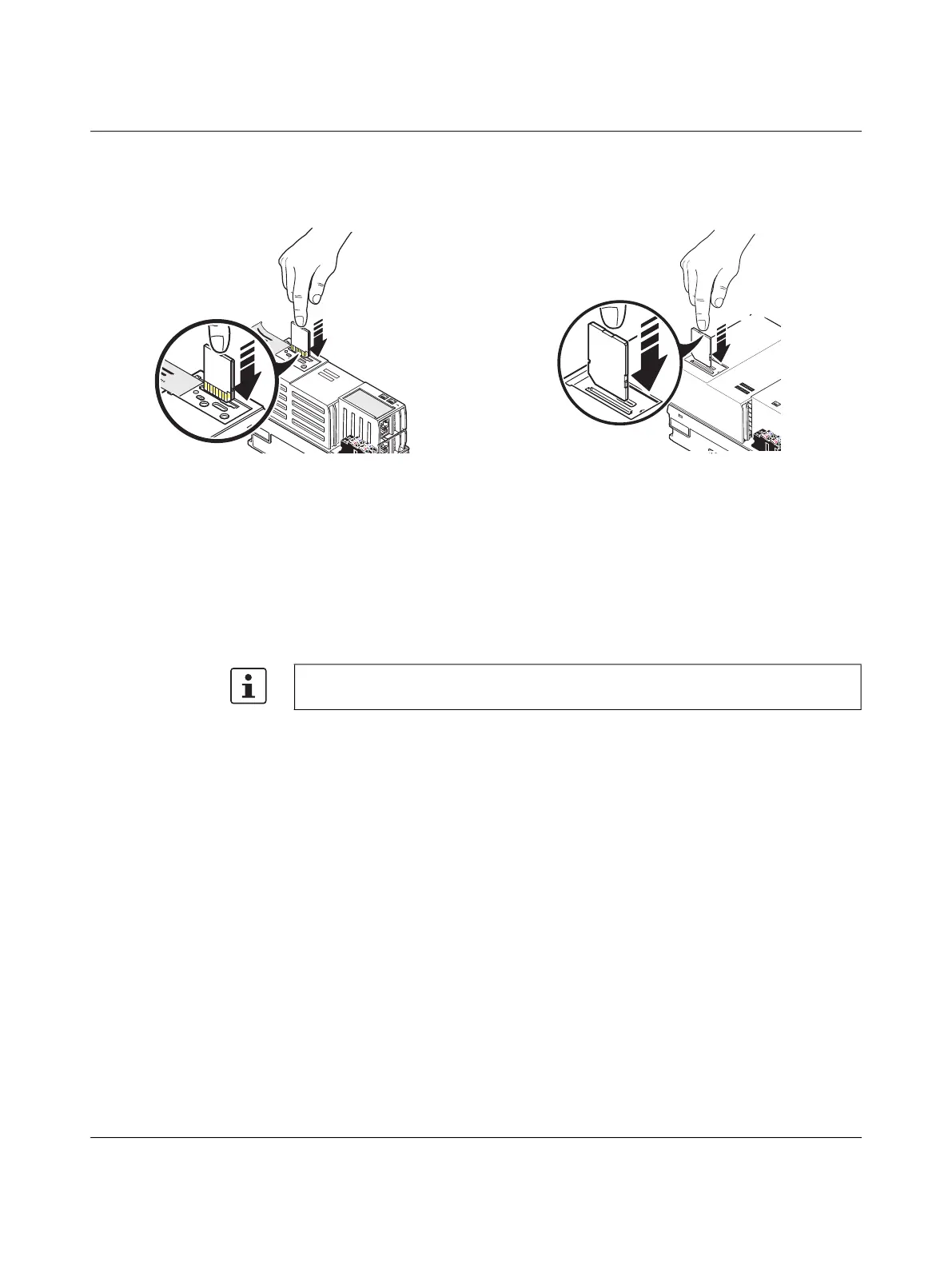

Figure 4-9 Inserting the SD card
4.7 Mounting a left-alignable Axioline F extension
module
• Mount the left-alignable Axioline F extension module as described in the module-spe-
cific packing slip and module-specific data sheet.
4.8 Mounting the AXC F IL ADAPT Inline adapter
terminal
• Mount the Inline adapter terminal as described in the module-specific packing slip and
module-specific data sheet.
AXC F 1152 and AXC F 2152 AXC F 3152
R
SD-C
ARD
X4
X2
X1
>Click<
>Click<
For additional information on the number and order of left-alignable Axioline F extension
modules, refer to page 15.
