4.6 Inserting the SD card
• Disconnect the Axioline F station from the power supply.
The controller has an SD card holder with push/push technology.
• On the AXC F 1152 and AXC F 2152, remove the upper marking field of the controller
(item 1 in Figure 4-8).

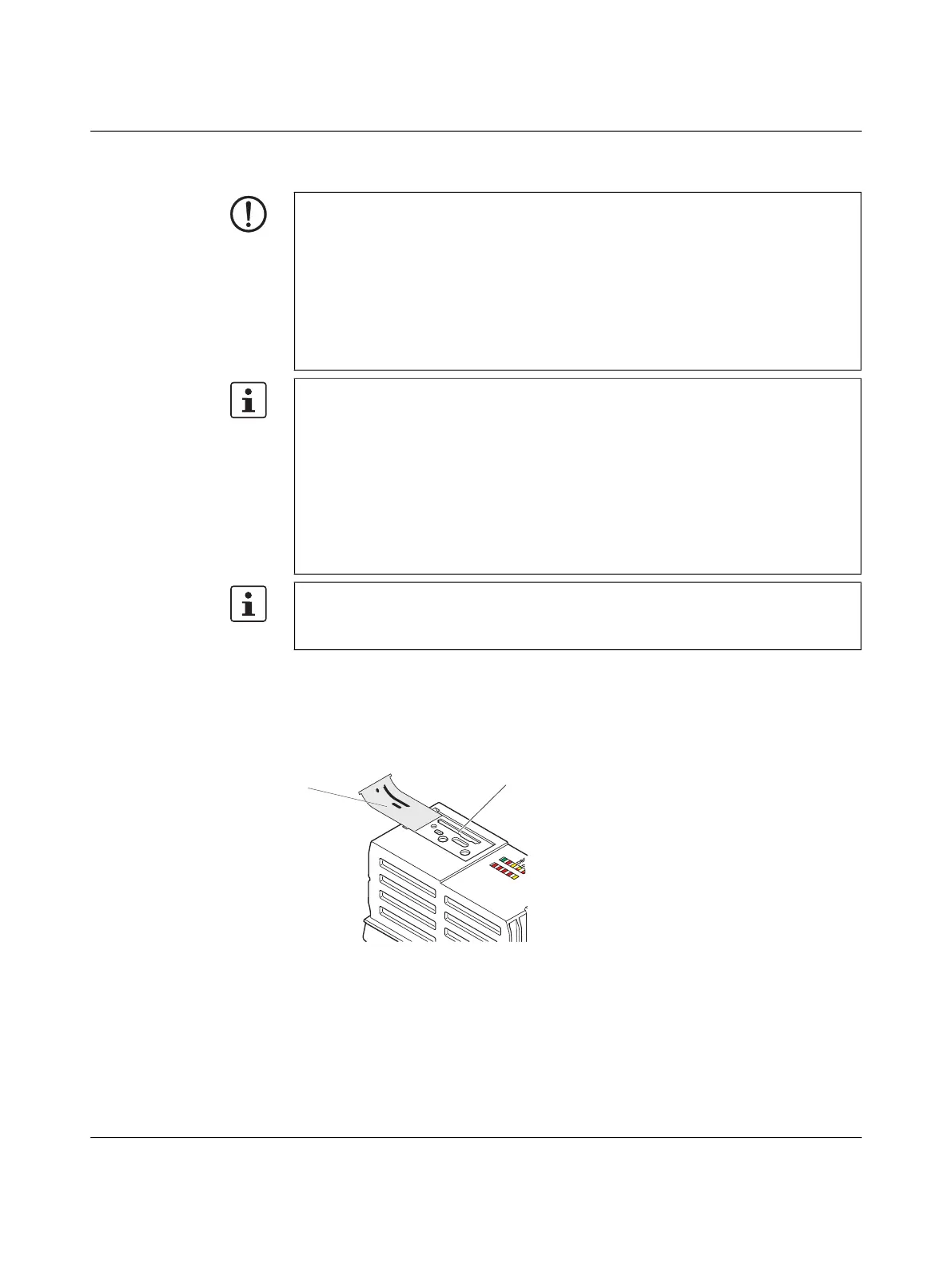

Figure 4-8 Removing the upper marking field of the AXC F 1152 and AXC F 2152
NOTE: Damage to the SD card after formatting
The SD card is already formatted (ext4 format) and is intended for use with
Phoenix Contact controllers of the PLCnext Control product family. If you format the
SD card, certain information on the SD card that is required for use with Phoenix Contact
devices will be lost. After formatting, you can no longer use the SD card to operate the
controller.
• Ensure that the SD card is not formatted.
• If you want to delete the overlay file system from the SD card:
Reset the controller to default setting type 1.
The SD card will be recognized during the initialization phase of the controller. If you insert
the SD card during operation, the SD card will not be recognized.
• Make sure that the SD card has been inserted before switching on the controller, in
order to enable the controller to use it.
• Insert and remove the SD card only when the controller supply voltage is
disconnected.
Refer to Section “Diagnostic and status indicators” on page 28 for the LED blink
codes in the event of unauthorized removal of the SD card during operation.
• Only use an SD card provided by Phoenix Contact, see Section “Ordering data and
technical data” on page 77.
The SD card is optional and not supplied as standard with the controller.
Please refer to the ordering data in Section “Ordering data and technical data” on
page 77.
BF-C
BF-D
SF
RUN
FA I L
BOOT
EXT
1
2
