Phoenix Contact INTERBUS User Manual

5756B 9
Slot for the Parameterization Memory

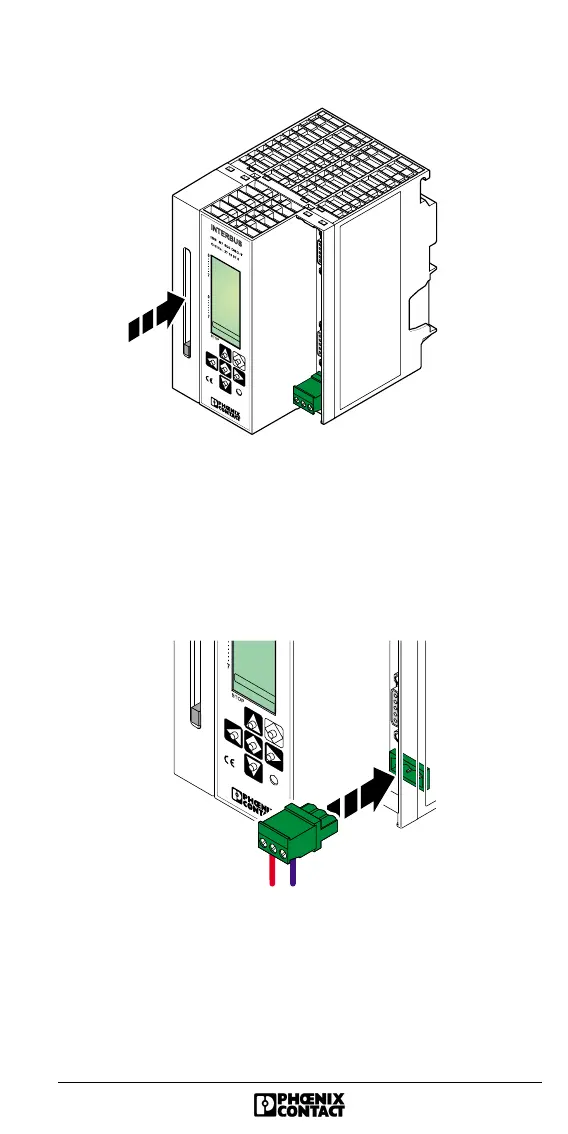

Figure 7 Slot for the parameterization memory
A system-specific parameterization of the INTERBUS system
and the controller board are stored on the plug-in
parameterization memory.
Connection for the External Power Supply
Figure 8 Power supply connection
The controller board requires an external power supply of
24 V DC for operation. This can be drawn from the power
supply unit of the S7 PLC.
5756A008
5756A009
