Position of the INTERBUS Standard Registers

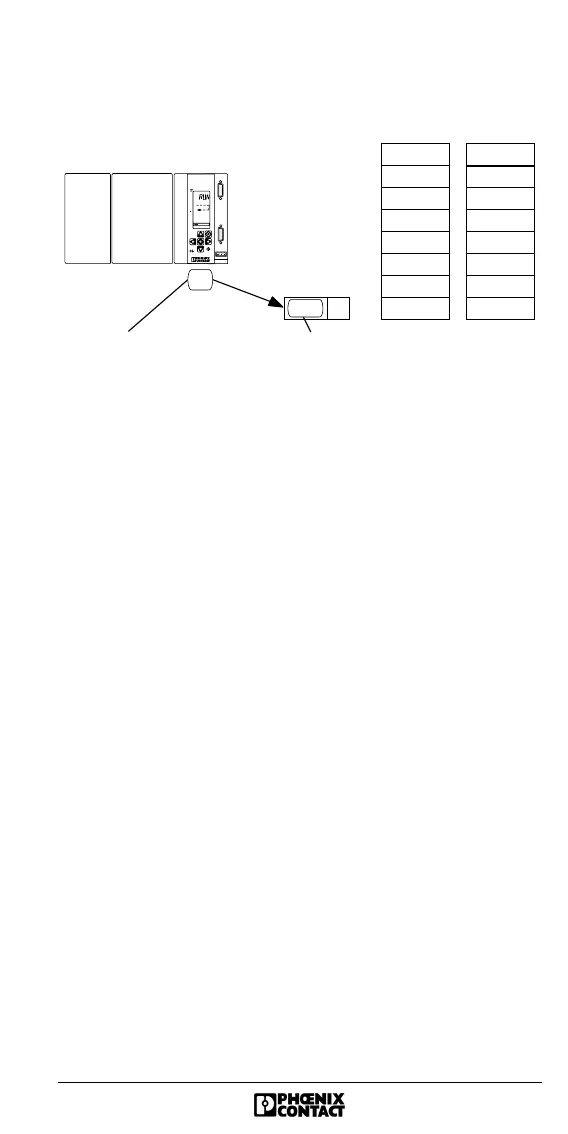

Figure 29 Position of the INTERBUS standard registers
Key:
The Communication Register
The controller board communication register is used as an
interface for the driver blocks. This register must not be
overwritten.
SN = Slot number (here: 4)
BA = Base address (here: 256)
res. = Reserved
a = Diagnostic status register (2 bytes)
b = Diagnostic parameter register (2 bytes)
c = Standard function start register (2 bytes)
d = Standard function parameter register (2 bytes)
e = Standard function status register (2 bytes)
g = Communication register (4 bytes)
