Typical combinations of antennas and adapter cables
105542_en_05 PHOENIX CONTACT 173 / 198
Omnidirectional antenna, 2.5 dBi

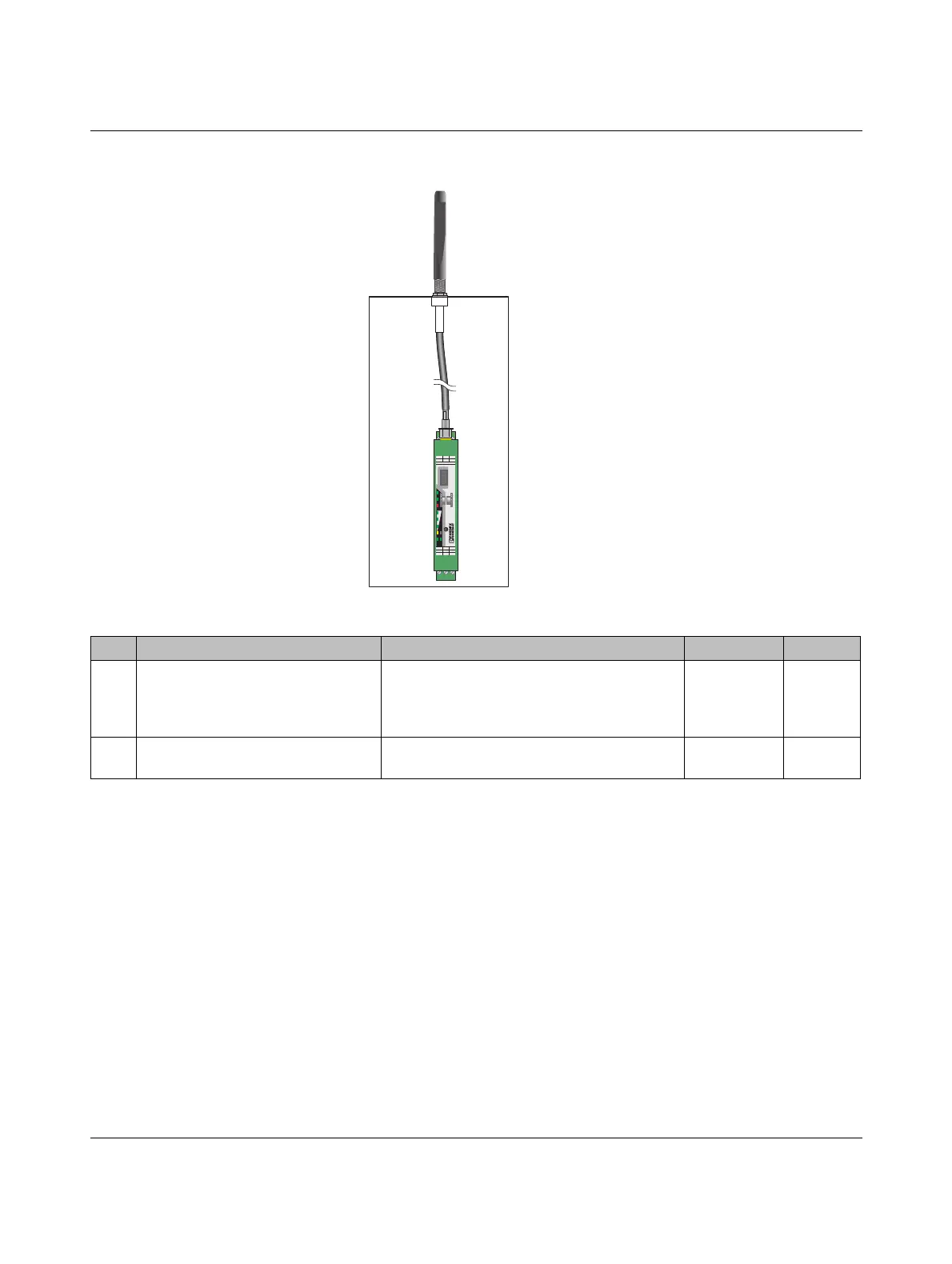

Figure A-3 Omnidirectional antenna, 2.5 dBi
RAD-2400-IFS
RAD-ID
Reset
+24 V
0 V
RSSI-
RSSI+
ANT
SPORT
0 2
Pwr
Dat
Err
RX TX
D(A) D(B)
GND
RX
CO
1
NC
1
CO
2
TX
1
2
Item Product Description Connection Order No.
1 ANT-OMNI-2459-02 Omnidirectional antenna, 2.4 GHz/5 GHz,
2.5/5 dBi gain, linear vertical polarization,
opening angle: h/v 360°/30° for 2.4 GHz,
h/v 360°/16° for 5 GHz, IP68
N (male) 2701408
2 RAD-PIG-EF316-N-RSMA Adapter cable, 50 cm pigtail, 50 impedance N (female)
RSMA (male)
2701402
