Phoenix Contact RAD IFS Series User Manual

Typical combinations of antennas and adapter cables
105542_en_05 PHOENIX CONTACT 179 / 198
Directional antennas, with surge protection

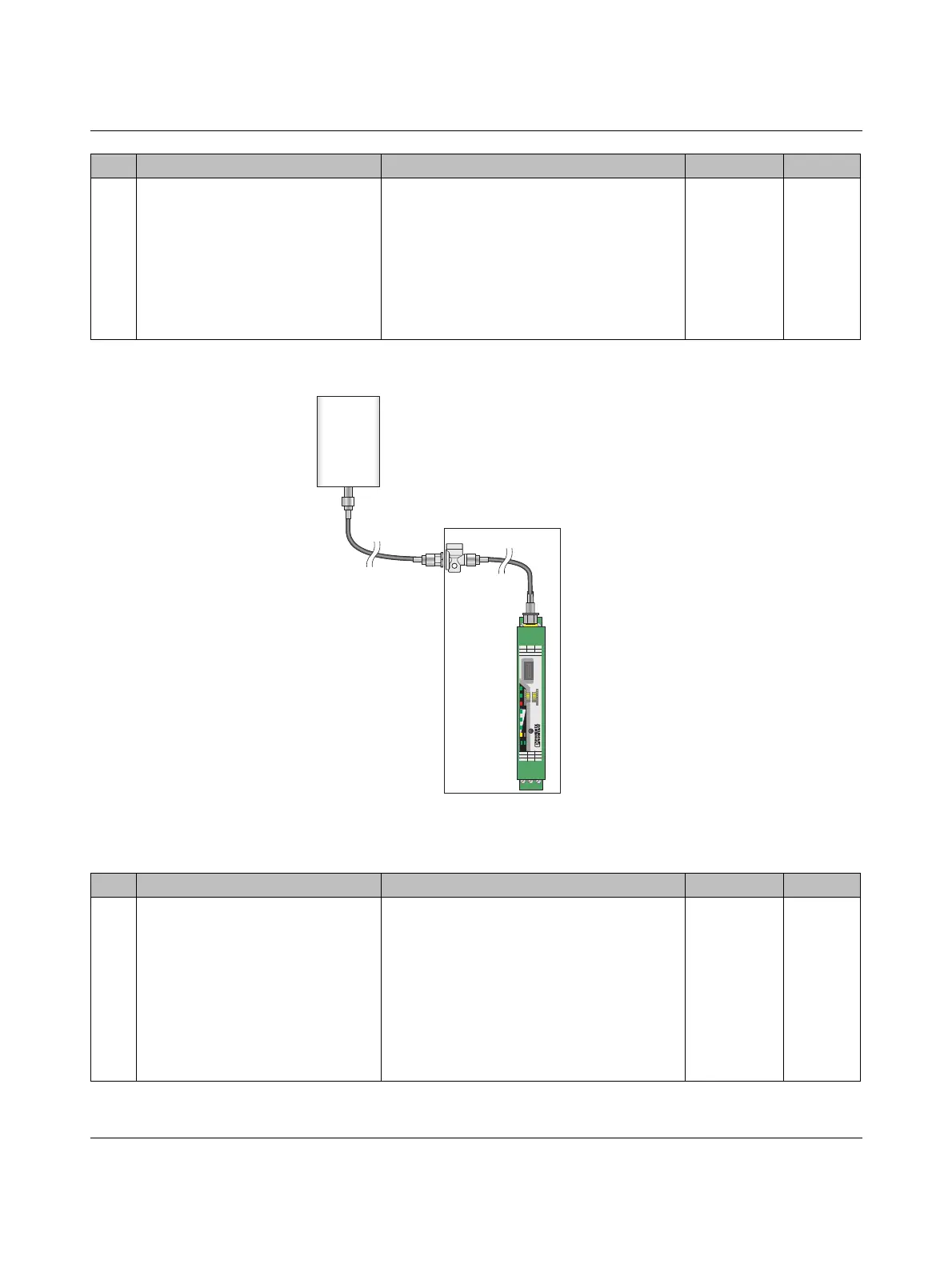

Figure A-9 Directional antenna, with surge protection
Items 2 and 3 are optional.
4
RAD-PIG-RSMA/N-0.5 Antenna cable, 0.5 m length, 50 Ω impedance N (male) 
RSMA (male)
2903263
Alternative:
RAD-PIG-RSMA/N-1 Antenna cable, 1 m length
N (male) 
RSMA (male)
2903264
RAD-PIG-RSMA/N-2 Antenna cable, 2 m length 2903265
RAD-PIG-RSMA/N-3 Antenna cable, 3 m length 2903266
RAD-PIG-RSMA/N-5 Antenna cable, 5 m length 2702140
Item Product Description Connection Order No.
RAD-2400-IFS
RAD-ID
Reset
+24 V
0 V
RSSI- RSSI+
ANT
SPORT
0 1
Pwr
Dat
Err
RX TX
D(A) D(B)
GND
RX
CO
1
NC
1
CO
2
TX
1
2
3
4
Item Product Description Connection Order No.
1
ANT-DIR-868-01 Directional antenna, 868 MHz, 3.5 dBi, circular
polarized, IP67, including mounting bracket
and mast clips for 25 mm ... 85 mm diameter,
stainless steel, ATEX and IECEx approval
N (female) 2702137
Alternative:
RAD-ISM-900-ANT-YAGI-6.5-N Yagi antenna, IP65, 8.5 dBi gain, 0.6 m cable
length
N (female)
2867814
RAD-ISM-900-ANT-YAGI-10-N Yagi antenna, IP65, 12 dBi gain, 0.6 m RG-213
cable
5606614
