Typical combinations of antennas and adapter cables
105542_en_05 PHOENIX CONTACT 175 / 198
Omnidirectional antenna, 6 dBi, with surge protection

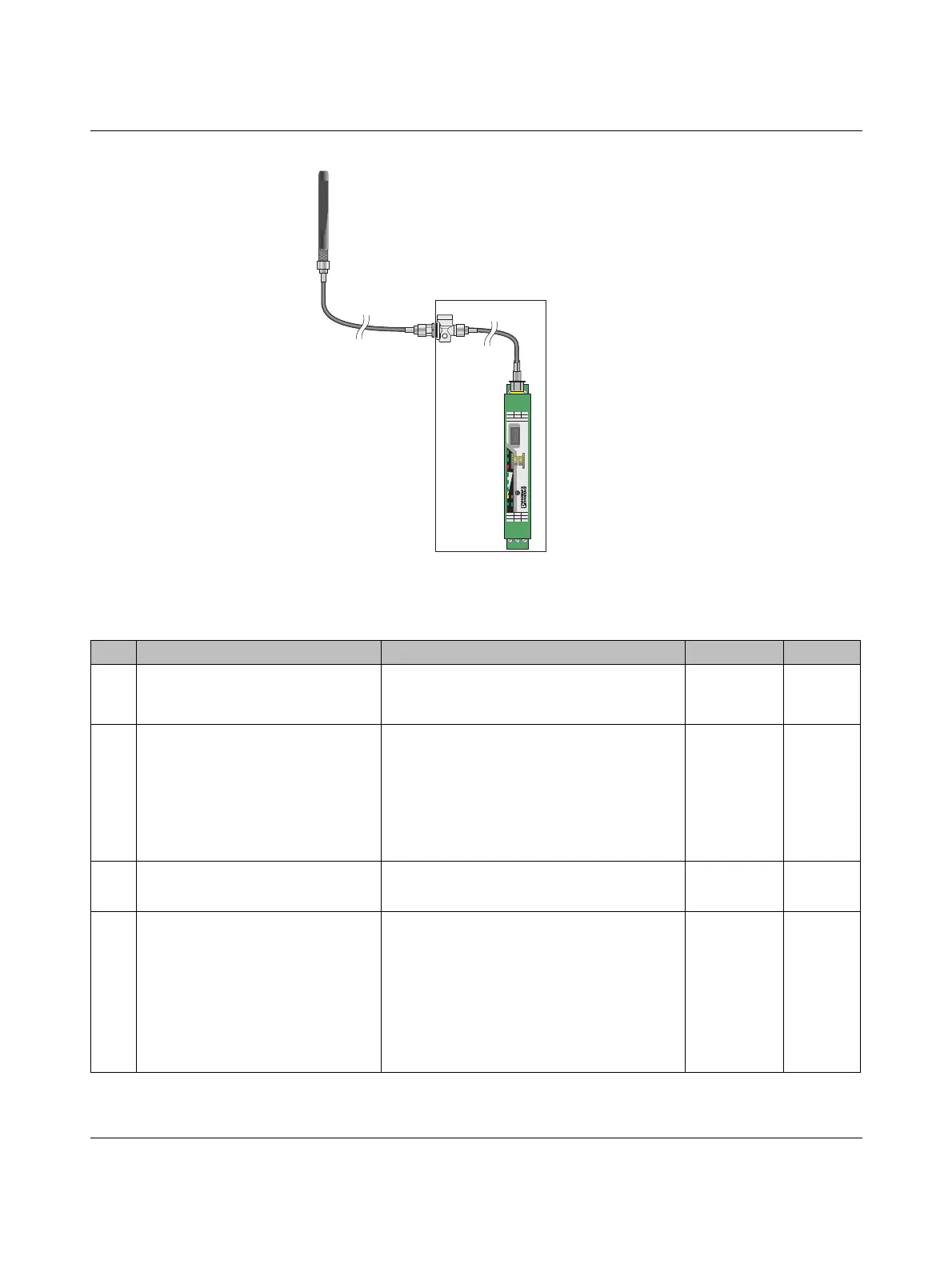

Figure A-5 Omnidirectional antenna, 6 dBi, with surge protection
Items 2 and 3 are optional.
RAD-2400-IFS
RAD-ID
Reset
+24 V
0 V
RSSI- RSSI+
ANT
SPORT
0 1
Pwr
Dat
Err
RX TX
D(A) D(B)
GND
RX
CO
1
NC
1
CO
2
TX
1
2
3
4
Item Product Description Connection Order No.
1 RAD-ISM-2400-ANT-OMNI-6-0
Omnidirectional antenna, 2.4 GHz, 6 dBi gain,
linear vertical polarization, h/v 360°/30° open-
ing angle, IP67 protection, seawater-resistant
N (female) 2885919
2
(opt.)
RAD-CAB-EF393- 3M Antenna cable, 3 m length, 50 Ω impedance N (male) 
N (male)
2867649
Alternative:
RAD-CAB-EF393- 5M Antenna cable, 5 m length
N (male) 
N (male)
2867652
RAD-CAB-EF393-10M Antenna cable, 10 m length 2867665
RAD-CAB-EF393-15M Antenna cable, 15 m length 2885634
3
(opt.)
CN-LAMBDA/4-5.9-BB Attachment plug with LAMBDA/4 technology
as surge protection for coaxial signal interfaces
N (female) 
N (female
2838490
4
RAD-PIG-RSMA/N-0.5 Antenna cable, 0.5 m length, 50 Ω impedance N (male) 
RSMA (male)
2903263
Alternative:
RAD-PIG-RSMA/N-1 Antenna cable, 1 m length
N (male) 
RSMA (male)
2903264
RAD-PIG-RSMA/N-2 Antenna cable, 2 m length 2903265
RAD-PIG-RSMA/N-3 Antenna cable, 3 m length 2903266
RAD-PIG-RSMA/N-5 Antenna cable, 5 m length 2702140
