Phoenix Contact RAD IFS Series User Manual

RAD-...-IFS
178 / 198 PHOENIX CONTACT 105542_en_05
A 1.2 868 MHz antennas
Omnidirectional antenna, 4 dBi, with surge protection

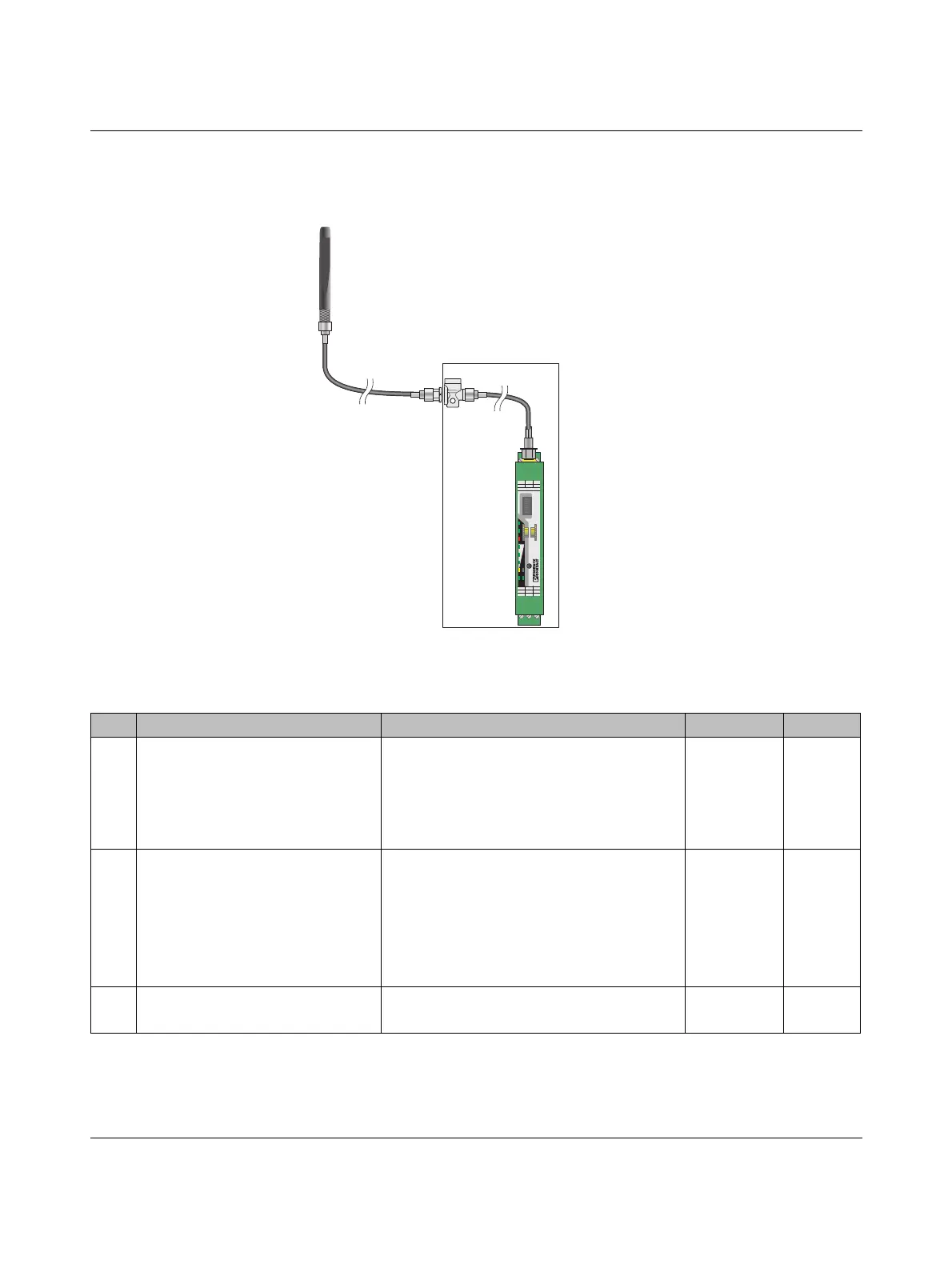

Figure A-8 Omnidirectional antenna, 4 dBi, with surge protection
Items 2 and 3 are optional.
RAD-2400-IFS
RAD-ID
Reset
+24 V
0 V
RSSI- RSSI+
ANT
SPORT
0 1
Pwr
Dat
Err
RX TX
D(A) D(B)
GND
RX
CO
1
NC
1
CO
2
TX
1
23
4
Item Product Description Connection Order No.
1
ANT-OMNI-868-01 Omnidirectional antenna, 868 MHz, 4 dBi, lin-
ear vertical, h/v 360°/30° opening angle, IP67,
seawater-resistant, including mounting
bracket and mast clips for 30 mm ... 45 mm
diameter, stainless steel,
ATEX/IECEx approval
N (female) 2702136
2
(opt.)
RAD-CAB-EF393- 3M Antenna cable, 3 m length, 50 Ω impedance N (male) 
N (male)
2867649
Alternative:
RAD-CAB-EF393- 5M Antenna cable, 5 m length
N (male) 
N (male)
2867652
RAD-CAB-EF393-10M Antenna cable, 10 m length 2867665
RAD-CAB-EF393-15M Antenna cable, 15 m length 2885634
3
(opt.)
CN-LAMBDA/4-2.2-BB Attachment plug with LAMBDA/4 technology
as surge protection for coaxial signal interfaces
N (female) 
N (female
2800024
