2. Metering

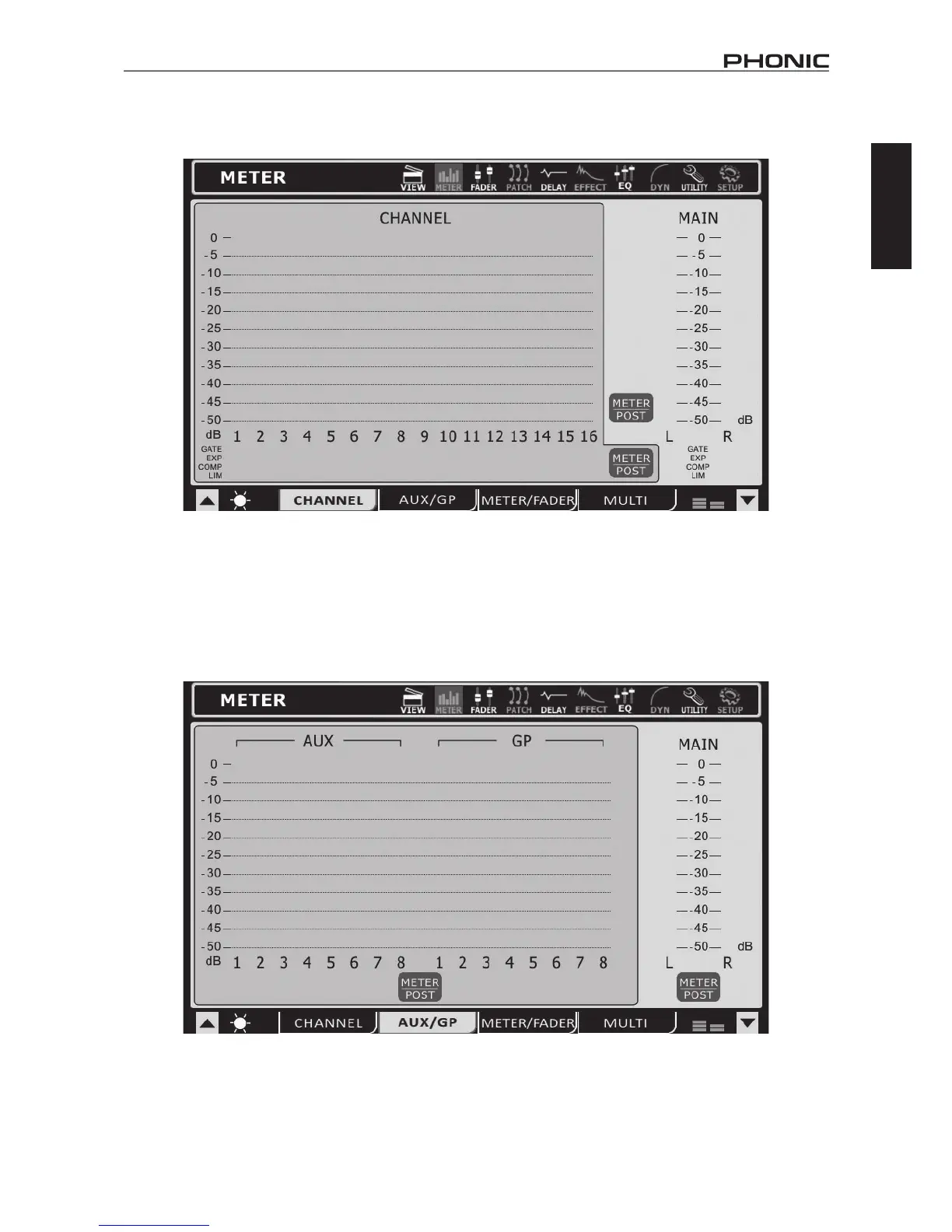

2.1 Channel Tab

Thistaballowsuserstoviewthelevelsofallinputchannels,aswellasthemainstereomix.Userscanviewpeaklevelsbytakingnote

of the red mark at the top of the meters. The meters can be changed between pre-fader and post-fader meters by pushing the pre/post

buttonslocatedbelowthemeters.Theinputchannels’meterscanbeadjustedtodisplaytheinputsignal(post-gain,pre-on/off),pre-fader

(post-gain,post-on/off)andpost-fader(post-fader,-EQ,-dynamics,-delay).

Youcanalsoviewthestatusofdynamicprocessorsassignedtothecorrespondingchannelsbyviewingthiswindow.Eachtheexpander,

gate,compressorandlimiterhavetheirownindicatorforeachchannelaswellasthemainoutput.Aredlightindicatesthatthecorresponding

dynamicprocessisclipping;abluelightindicatesthatthecorrespondingdynamicprocessisturnedon,and;ayellowlightindicatesthat

thecorrespondingdynamicprocessiscurrentlyactive(ie.thesetthresholdhasbeenpassed).

2.2 AUX / Group Tab

TheAUX/Groupmeterpageallowsuserstoviewtheoutputlevelsofeachofthesemixes,aswellasthemainmix–allonasinglepage.A

smallredmarkwillholdhighpeaksforashorttime.Usersareabletoadjustthesemetersbetweenpre-andpost-fadermetersbypushing

thePre/PostMeterbuttons.Thepost-fadersignaldisplayedispost-fader,-equalizer,-dynamicsand-delay.
